Specifications
Place of Origin :
Jiangsu, China
Brand Name :
RFint
Model Number :
YG401820
MOQ :
20 pieces
Price :
Prices are negotiable
Delivery Time :
2-10days
Packaging Details :
Opp bag
Application :
50MHz to 4000MHz
Type :
YG401820
Series :
YG401820
Features :
Standard
Mounting Type :
Standard
Description :
Standard
Parameter :
Rating
Frequency :
50MHz to 4000MHz
Application area :
WLAN / WiMAX / WiBro,WCDMA / LTE,GSM / CDMA / PCS
Product name :
Gain Block
Functions :
gain block amplifier
Description

YG40182 MMIC Amplifier Designed for 50MHz to 4000MHz Operating Frequency in GSM / CDMA / PCS Applications


Product Description


Pr
Symbol
 Description
1 4 6 N/C No Connection
2 RF In RF input
5 RF Out RF output and bias
3 En/Rex Enabling Device/ Gain and Device Current controlling(1)


Product Description

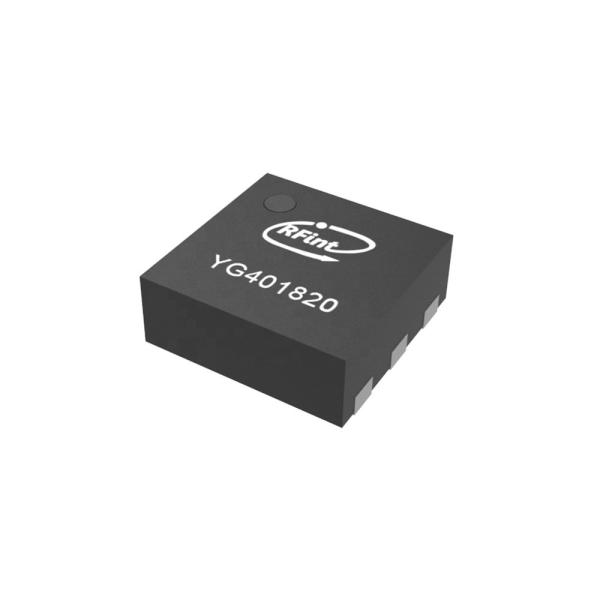

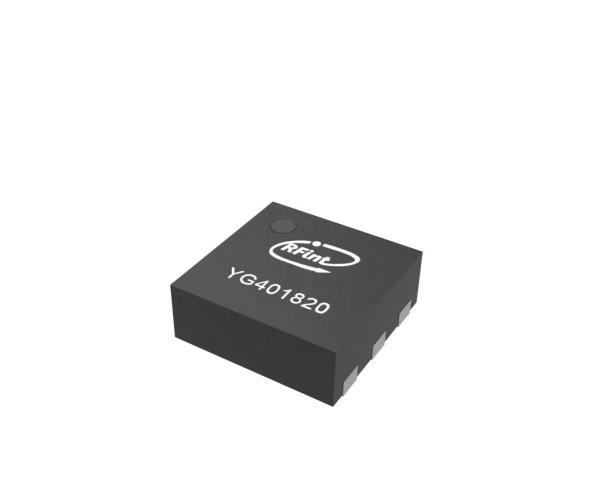

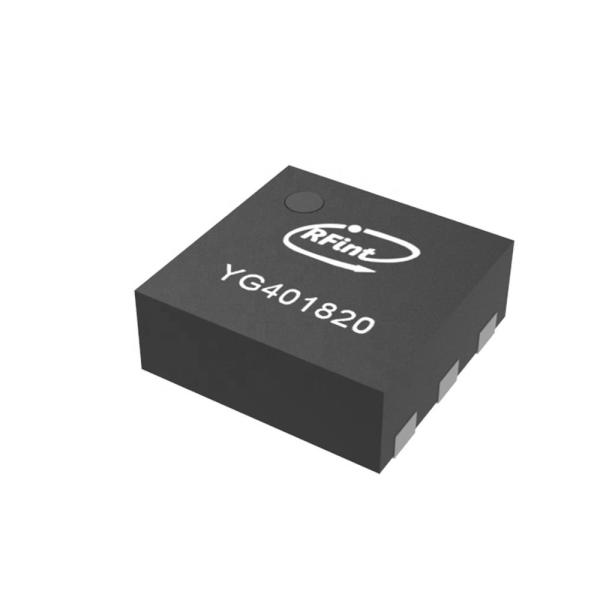

The YG401820 is a high performance InGaP/GaAs HBT MMIC gain block amplifier utilizing a
Darlington pair configuration with an active bias network. The active bias network provides stable
current over temperature and process variations. The YG401820 is internally matched to 50Ω, its
typical bias condition is a single 5V, and does not require a dropping resistor as compared to typical
Darlington amplifiers. The YG401820 is assembled in an industry standard DFN2X2-6L package. It
is internally integrated with ESD protection unit.
Features
Operating Frequency 50MHz to 4GHz
18dB Gain at 1.0GHz
20dBm P1dB at 1.0GHz
+33.5 dBm OIP3 at 3.5GHz
+34.5 dBm OIP3 at 2.65GHz
OIP3 ≥+33 dBm up to 4G
5V Single Power Supply
Integrated Active Bias Circuit
Industry Standard DFN2X2-6L Package
ESD protection all ports above 1000V HBM
Applications
WLAN / WiMAX / WiBro
GSM / CDMA / PCS
WCDMA / LTE
ISM

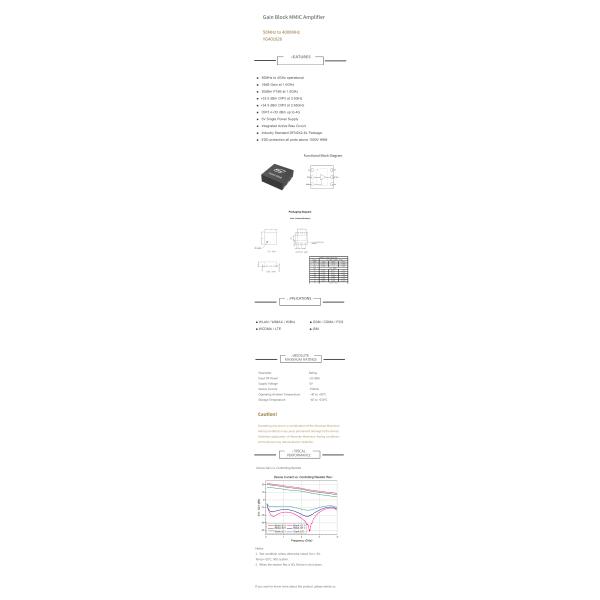

50MHz To 4000MHz Gain Block Amplifier In GSM/CDMA/PCS Applications




Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zhongshi Zhihui Technology (suzhou) Co., Ltd. is located in Suzhou Industrial Park, founded in 2010, the company is mainly engaged in, and can provide customers with wireless communication network coverage solutions of high-tech enterprises. The company implements radio-oriented development strategy based on radio frequency technology, independent research and development and production of bidirectional frequency conversion super WiFi signal amplifier products, radio frequency and microwave voltage controlled oscillator (VCO), sweep signal source, wireless network card information security module and other product lines, has mastered some core technologies in the product field, has a lot of independent intellectual property rights.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2010,sell to Western Europe(50.00%),Southern Europe(12.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;

Always final Inspection before shipment;

1 year warranty for our products.


3.what can you buy from us?
Signal Booster, VCO, Anti Drone Jammer Module, Power Amplifier, Gain Block and so on
