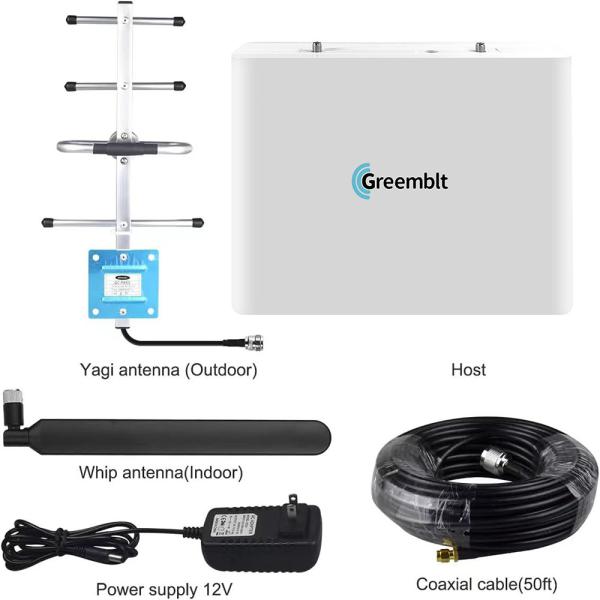

65dB 75dB 5G Signal Repeater Weboost 5g Cell Booster For Home Office
65dB 75dB 5G Signal Repeater Weboost 5g Cell Booster For Home Office
Specifications
Brand Name :
JIAYI
Model Number :
JY814
Place of Origin :
Guangdong, China
Description

cell phone signal booster for cell phone signal booster for 5g booster weboost home multiroom

Product Description

65dB 75dB 5G Signal Repeater Weboost 5g Cell Booster For Home Office65dB 75dB 5G Signal Repeater Weboost 5g Cell Booster For Home Office

65dB 75dB 5G Signal Repeater Weboost 5g Cell Booster For Home Office65dB 75dB 5G Signal Repeater Weboost 5g Cell Booster For Home Office

Specificatio
Model JY814
Technique Data GSM CDMA DCS WCDMA TDD-LTE FDD N66 TDD N77/N78
Uplink Downlink Uplink Downlink Uplink Downlink Uplink Downlink Uplink Downlink Uplink Downlink Uplink Downlink
Frequency Range(MHz) 824-835 /890-915 869-880 /935-960 890-915 /1710-1785 935-960 /1805-1880 890-915 /1710-1785 935-960 /1805-1880 1710-1785 /1920-1980 1805-1880 /2110-2170 2515-2675 2515-2675 1710-1780 2110-2200 3300 4200
Max. Gain(dB) 65 75 65 75 65 75 65 75 65 70 65 70 65 70
Max. Gain (dBm) 20±2 20±2 20±2 20±2 20±2 20±2 20±2
Max. Output Power(dB) ≤6
intermodulation (dBc) ≤36
VSWR ≤1.5
RF Connector N(F)
power interface DC5.5-2.1
operating voltage DC5V
operating current <2A
input voltage AC100~240V,50-60Hz
Product size 210*55*160mm
Package size 315*215*80mm

Installation

Installation Instructions
Installation Method: 1. Find the strongest direction and position of the received signal for mobiles at the top or the periphery of the building, as the location for installing the outdoor antenna, pay attention that the location should be paid to lightning protection. The installation height should not be higher than the lightning protection network of the building. If it is higher than the lightning protection network. If it is necessary, install a lightning rod 1 meter above the outdoor antenna and ground it well. 2. After selecting the appropriate location, fix the outdoor antenna to the wall or bracket. 3. Select an appropriate location in the relevant indoor location (close to the power supply and the outdoor antenna end, rain-proof, sunshine-proof and ventilation is best location) install indoor straight machine, and fixed to the wall or bracket. 4. Lead the outdoor antenna to the 'BTS' (outdoor) interface, and the connection between the outdoor antenna and the amplifier is completed. 5. After defining the indoor antenna installation position, fix the antenna. 6. The indoor antenna connected to the amplifier, one port connecting to the indoor antenna interface, and the other port connecting to the repeater's 'MOBILE' (indoor) port.

65dB 75dB 5G Signal Repeater Weboost 5g Cell Booster For Home Office

65dB 75dB 5G Signal Repeater Weboost 5g Cell Booster For Home Office
