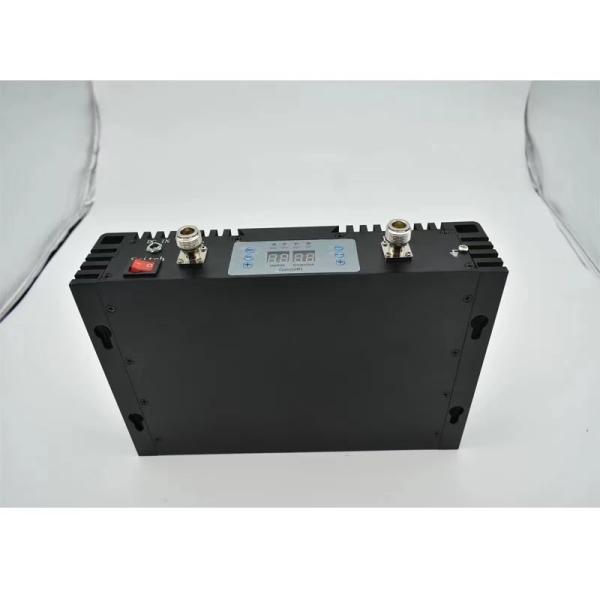

High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
Specifications
Model Number :
JY811
Place of Origin :
Guangdong, China
Brand Name :
JIAYI
Packaging Details :
Normal packing
Price :
$188.00/sets 1-49 sets
Type :
3g signal booster
Network :
4g, GSM, 3G
Product name :
Mobile Repeater
Frequency :
900/1800/2100MHz
Gain :
31dB
Function :
Signal Extender
Application :
Home Office Farm Hotel Ship
Output Power :
30dBm
Product Size :
24*34*28
Weight :
5KG
Color :
Black
Quality Warranty :
2 Yeara
Description
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster with 31dB Gain and 2
Products Description
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
Specification
Frequency Range
Uplink
Downlink
LTE 800MHz
832-862MHz
791-821MHz
GSM900MHz
890-915MHz
935-960MHz
1800MHz
1710-1785MHz
1805-1880MHz
2100MHz
1920-1980MHz
2110-2170MHz
2600MHz
2500-2570MHz
2630-2690MHz
Max. Gain
75dB ±1.5dB
80dB±1.5dB
Max. Output Power
22dBm±1.5dB
27dBm±1.5dB
Band width
Wide Band
Manual Gain Control
31dB
ALC
>25dB
Ripple in Band
≤ 8dB
Noise Figure
≤ 6dB
VSWR
≤ 2.0
Intermodulation
≤ -40dBc
Spurious Emission
9KHz~1GHz
≤ -36dBm
1~12.75GHz
≤ -30dBm
Time Delay
≤ 1.5 μs
Frequency stability
≤ 0.01ppm
MTBF
> 50000 hours
Impedance
50 ohm
Power Supply
AC 90-264V,DC 10V/10A
Power LED
Power indicator
Alarm LED
Red
Self oscillation or Strong input signal
Green
Normal
Mechanical Specification
RF Connector
N-Female
Switch
Power Switch,Manual Gain Control Switch
Cooling
Heatsink Convection cooling
Humidity
< 90%
Operating Temperature
-10°C ~ +55°C
Environment Conditions
IP40
Installation Type
Wall Installation
Size
439*268*58mm
Weight
< 8.5Kg

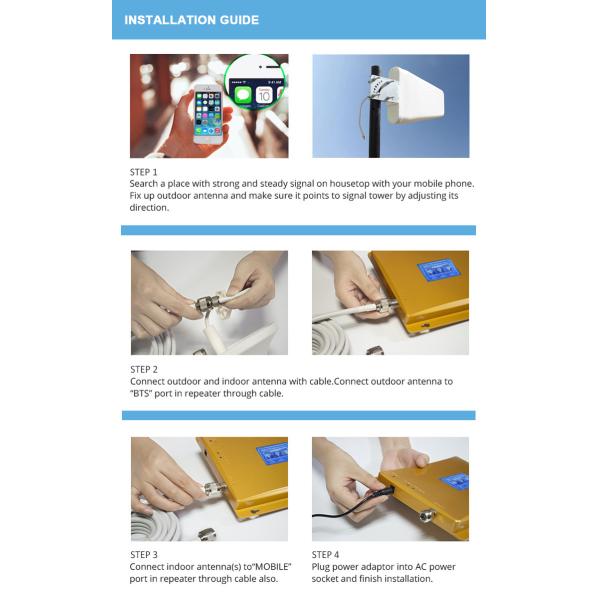

Installation Instructions
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
High Power 900MHZ 1800MHZ 2100MHZ 2G 3G 4G 5G Signal Booster
