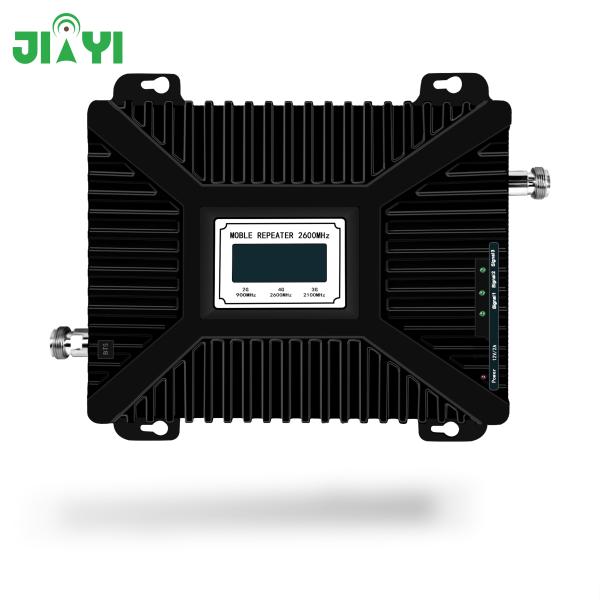

GSM900mhz DCS1800mhz 2100mhz Network Booster 5W Output 90dB Gain

Specifications

Model Number :

JY811

Place of Origin :

Guangdong, China

Brand Name :

JIAYI

Packaging Details :

Carton size for 1 kit:24*28*34cm
Carton size for 2 kits:46*36*26cm
Carton size for 10 kits:70*45*45cm

Supply Ability :

1000 Piece/Pieces per Week

Price :

$310.00/pieces 1-19 pieces

Type :

4G signal booster

Network :

GPRS, 4g, GSM, 3G

Product name :

signal repeater

Frequency :

900mhz/1800mhz/2100mhz/2600mhz

Function :

Signal Extender

Gain :

90dB

Output Power :

Application :

Home Office Farm Hotel Ship

Warranty :

2 Years

Coverage :

3KM

Port :

Shenzhen

Description

GSM900mhz/DCS1800mhz/2100mhz Network Booster 5W Output and 90dB Gain for Better Signal

specification

Frequency Range		Uplink	Downlink
LTE 800MHz		832-862MHz	791-821MHz
GSM900MHz		890-915MHz	935-960MHz
1800MHz		1710-1785MHz	1805-1880MHz
2100MHz		1920-1980MHz	2110-2170MHz
2600MHz		2500-2570MHz	2630-2690MHz
Max. Gain		75dB ±1.5dB	80dB±1.5dB
Max. Output Power		22dBm±1.5dB	27dBm±1.5dB
Band width		Wide Band
Manual Gain Control		31dB
ALC		>25dB
Ripple in Band		≤ 8dB
Noise Figure		≤ 6dB
VSWR		≤ 2.0
Intermodulation		≤ -40dBc
Spurious Emission	9KHz~1GHz	≤ -36dBm
	1~12.75GHz	≤ -30dBm
Time Delay		≤ 1.5 μs
Frequency stability		≤ 0.01ppm
MTBF		> 50000 hours
Impedance		50 ohm
Power Supply		AC 90-264V,DC 10V/10A
Power LED		Power indicator

GSM900mhz DCS1800mhz 2100mhz Network Booster 5W Output 90dB Gain

Product Description

GSM900mhz DCS1800mhz 2100mhz Network Booster 5W Output 90dB Gain

Have you ever felt irritable because of the weak signal on your phone?

The signal booster can help you to solve the problem.

GSM900mhz DCS1800mhz 2100mhz Network Booster 5W Output 90dB Gain

Best selling GSM900mhz/DCS1800mhz/2100mhz network booster powerful amplifier high quality network repeater

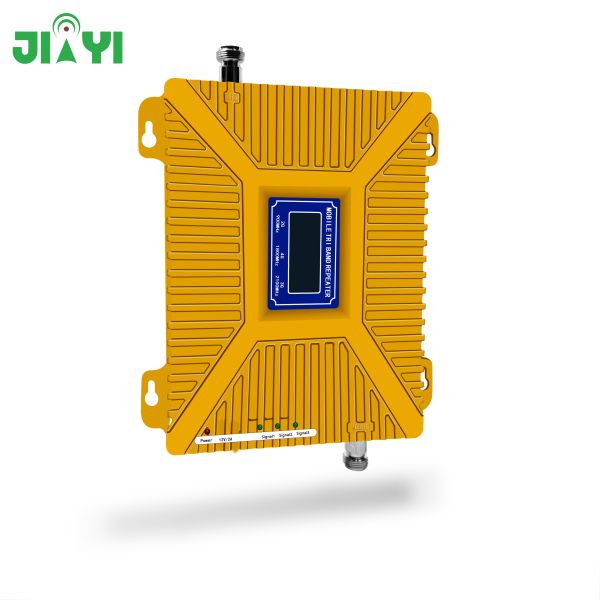

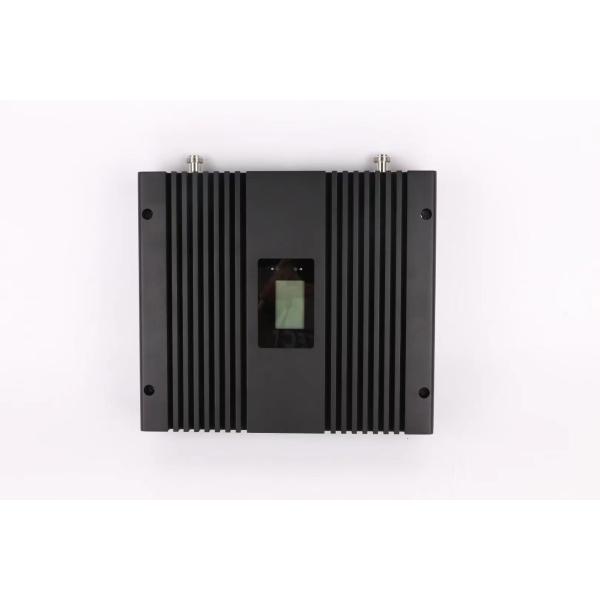

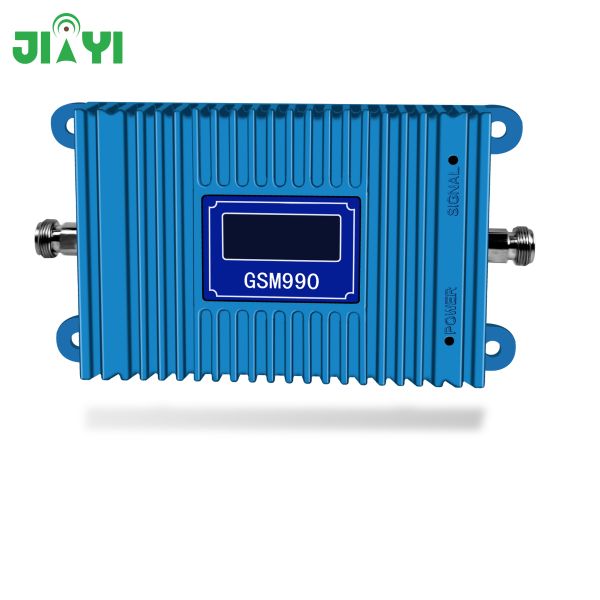

Picture show:

GSM900mhz DCS1800mhz 2100mhz Network Booster 5W Output 90dB Gain

Packing list:

(1)1pcs Repeater
(2)1pcs Logarithm outdoor antenna
(3)1pcs Logarithm antenna
(4)1pcs Cable 3 meters
(5)1pcs Cable 10 meters

Optional accessories:

GSM900mhz DCS1800mhz 2100mhz Network Booster 5W Output 90dB Gain

Hot Seling

GSM900mhz DCS1800mhz 2100mhz Network Booster 5W Output 90dB Gain

Application

GSM900mhz DCS1800mhz 2100mhz Network Booster 5W Output 90dB Gain

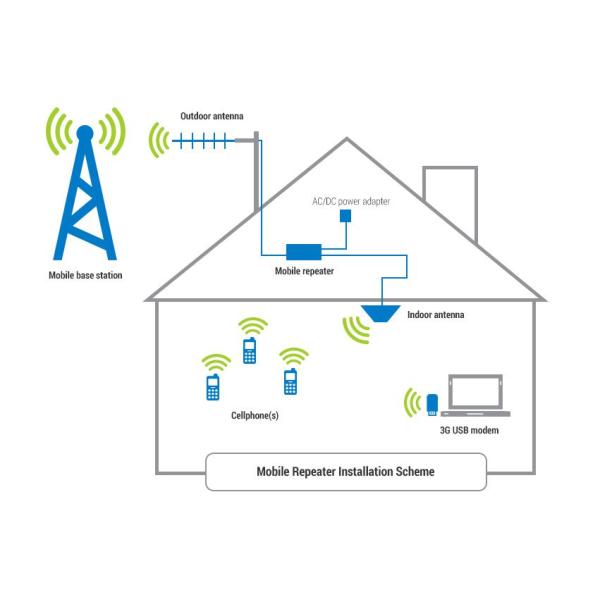

Installation

^{Installation Method:}

1. Find the strongest direction and position of the received signal for mobiles at the top or the periphery of the building, as the location for installing the outdoor antenna, pay attention that the location should be paid to lightning protection. The installation height should not be higher than the lightning protection network of the building. If it is higher than the lightning protection network. If it is necessary, install a lightning rod 1 meter above the outdoor antenna and ground it well.
2. After selecting the appropriate location, fix the outdoor antenna to the wall or bracket. 3. Select an appropriate location in the relevant indoor location (close to the power supply and the outdoor antenna end, rain-proof, sunshine-proof and ventilation is best location) install indoor straight machine, and fixed to the wall or bracket.
4. Lead the outdoor antenna to the 'BTS' (outdoor) interface, and the connection between the outdoor antenna and the amplifier is completed.
5. After defining the indoor antenna installation position, fix the antenna.
6. The indoor antenna connected to the amplifier, one port connecting to the indoor antenna interface, and the other port connecting to the repeater's 'MOBILE' (indoor) port.

Company Profile

Jiayi Technology, a leading manufacturer of signal amplifiers, located in Shenzhen city of China, over the past 10 years, its signal amplifier products have been exported to North America, Europe, the Middle East and Asia, and are well recognized by the industry. Through years of technical accumulation, Jiayi technology has launched a series of 2G/3G/4G/5G signal amplifiers, and will continue to provide customers with high-quality products and services.

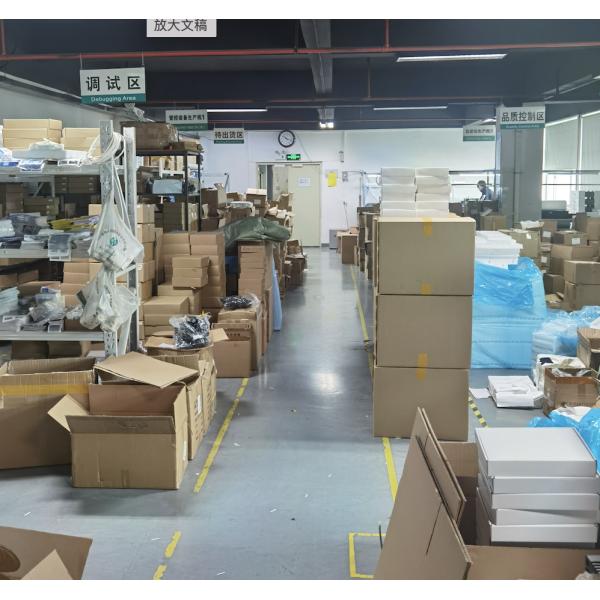

Packaging & Shipping

GSM900mhz DCS1800mhz 2100mhz Network Booster 5W Output 90dB Gain

Dear Friend

Welcome to our shop,hope you have a good shopping !All of our products already checked with QC Before send out, and
normally instock .All of our products can use for all over the world just match the frequency.Wholesale Consumer Pls contact us before your order,Because we will give the best price to you.Our products have good sale in Alipexpress.The frequency for you choose,SupportOEM,ODM.Support frequency customization, To choose from, we have single frequency dual frequency triband frequency quad frequency five frequency device , high power high Please contact us if you have any need. gain device, with AGC ALG device...

Single band frequency :
900,1800,2100,FDD2600,850,800,700,1900,1700,TDD2600,TDD2300 ,TDD1900
Dual band frequency :
900/1800,900/2100,1800/2600,850/1900,800/1800,850/1700,1800/2100,900/2300,1800/2300,1700/2100
Triband frequency :
900/1800/2100,850/1800/2100,900/1800/2600,900/2100/2600,1800/2100/2600
Quad band frequency :
850/900/1800/2100,900/1800/2100/2600,700(B28)/900/1800/2100.
Five band frequency :
850/900/1800/2100/2600,800/850/900/1800/2100,850/900/1800/1900/2100,800/700/900/1800/2100,900/1800/2100/2300/850.
