Specifications
Model Number :
JY816S
Place of Origin :
Guangdong, China
Brand Name :
JIAYI
Packaging Details :
Normal pack
Price :
$98.00/sets 1-9 sets
Type :
4G signal booster
Network :
4g, GSM, 3G
Gain :
70dB
Color :
black
Frequency :
900+1800MHz
Coverage :
100-350sqm
Weight :
4kg
Product name :
Mobile Signal Booster
Size :
510*240*150mm
Output Power :
17~23dBm
Application :
Indoor Mobile Signal Booster
Name :
Mobile Repeater
Description
Improve Your 4G Signal with High Gain 70dB Dual Band 900 1800MHz Mobile Repeater
Product Description
Improve Your 4G Signal Booster High Gain 70dB Dual Band Repeater 900MHz 1800MHz
Improve Your 4G Signal Booster High Gain 70dB Dual Band Repeater 900MHz 1800MHz
Improve Your 4G Signal Booster High Gain 70dB Dual Band Repeater 900MHz 1800MHz
Improve Your 4G Signal Booster High Gain 70dB Dual Band Repeater 900MHz 1800MHz
Specification
item
value
Place of Origin
China
Guangdong
Brand Name
JIAYI
Model Number
JY816S
Gain
70dB
Color
White+black
Coverage
100-350sqm
Weight
4kg
Product name
Mobile Signal Booster
Size
510*240*150mm
Output Power
17~23dBm
Frequency
900+1800MHz
Application
Indoor Mobile Signal Booster
Application
Improve Your 4G Signal Booster High Gain 70dB Dual Band Repeater 900MHz 1800MHz

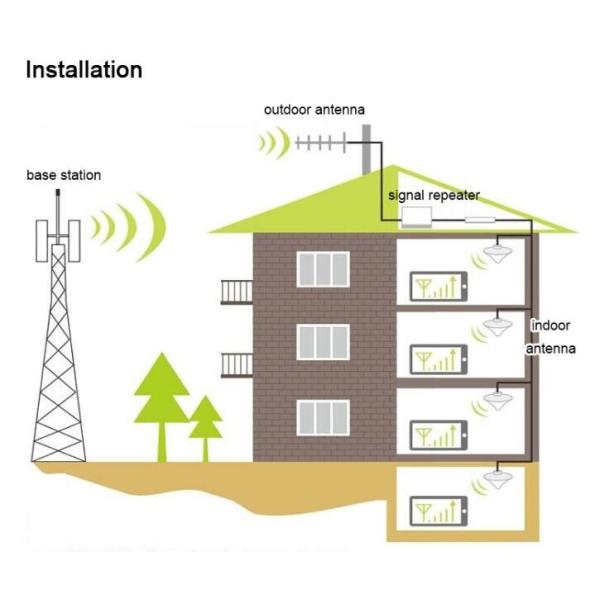

Installation Instructions
Installation Method: 1. Find the strongest direction and position of the received signal for mobiles at the top or the periphery of the building, as the location for installing the outdoor antenna, pay attention that the location should be paid to lightning protection. The installation height should not be higher than the lightning protection network of the building. If it is higher than the lightning protection network. If it is necessary, install a lightning rod 1 meter above the outdoor antenna and ground it well. 2. After selecting the appropriate location, fix the outdoor antenna to the wall or bracket. 3. Select an appropriate location in the relevant indoor location (close to the power supply and the outdoor antenna end, rain-proof, sunshine-proof and ventilation is best location) install indoor straight machine, and fixed to the wall or bracket. 4. Lead the outdoor antenna to the 'BTS' (outdoor) interface, and the connection between the outdoor antenna and the amplifier is completed. 5. After defining the indoor antenna installation position, fix the antenna. 6. The indoor antenna connected to the amplifier, one port connecting to the indoor antenna interface, and the other port connecting to the repeater's 'MOBILE' (indoor) port.
Improve Your 4G Signal Booster High Gain 70dB Dual Band Repeater 900MHz 1800MHz
