factory supply SDEC 100kw 200kw 300kw 400kw diesel genset
SDEC Series diesel Gen-Sets Introduce

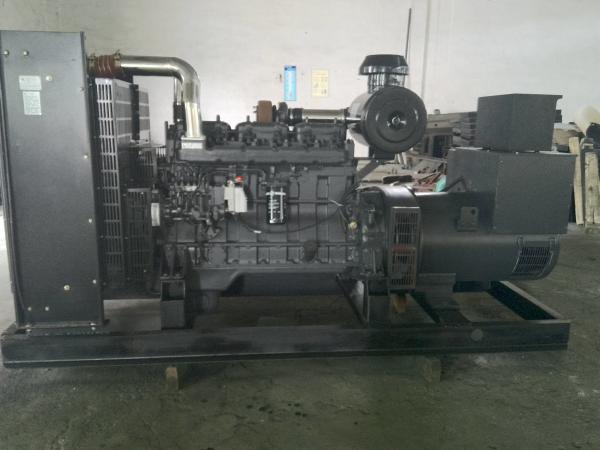

SDEC Series diesel generator set adopt the H, D, E, G, W series diesel engine, which are made by Shanghai Diesel Engine Co.,Ltd, and the famous alternators. The genset has the characteristics of high precision, high dynamic performance, low voltage waveform distortion, high efficiency, reliable operation, long service life and good economic performance.
The genset is equipped with a maintenance-free battery start system. Users only need to inject oil and coolant. After turning on the negative switch, the users can start the unit and output the power, which greatly improves the convenience of the use.
Details of "SDEC Series Water-Cooled AC Diesel Energy Generator Set":
The advantages of diesel genset
1) Running 7x24 hours as industrial power, or standby power.
2) New generation 373kw SDEC diesel engine with reinforced parts , more reliable, longer lifetime.
3) USA Baldwin filters, starter with relay, charging alternator with AVR.
4) Electronic governor, more steady speed, smaller harm to alternator produced by exciting current.
5) Brushless alternator, varnished 3 times, AVR, CHNT breaker, PMG, reduce current shock.
6) Smartgen 6110 controller, display all the parameters, provide protections.
7) Adopt Schneider breaker & Omron relay for small cabinet.
8) Stronger base steel frame with big volume fuel tank & high efficiency damper.
9) With standard accessories like free-maintenance battery (cables & switch), tool case, free parts etc.
Basic parameters & offer list of diesel genset
Generator set parameters | |
Type | Open type |
Connect method between engine and alternator | Single bearing by elastic steel disc plate |
Controller brand | SmartGen / Deepsea / ComAp |
Base fuel tank volume | For 8 hours running use |
Base steel frame thickness | 4-8 mm |
Generator set color | As per request |
Painting | Ground paint & surface paint for anti-rust |
Engine basic parameters | |
Model | SDEC Shanghai Diesel SC15G500D2 |
Continuous power/speed | 373kw/1500rpm |
Intake method | Turbocharged & air inter-cooled |
Rated Fuel Consumption at 100% load | 198 g/kw.h |
Starting method | 24V electric start |
Alternator basic parameters | |
Brand | Stamford/Marathon/Leroy Somer/Wattek |
Type | Brushless, 100% copper wires stator & rotator |
Copper wires vernished times | 3 times |
Rated output power | 300kw |
Voltage Regulate method | Adjusted automatically by AVR |
Protection class / Insulation Class | IP23 / H |
Total offer list | |
1) Diesel engine ( with corrugated tube, silencer, switch for battery, starter relay, alternator AVR, USA Baldwin filters, stainless steel heat-shield cover,high quality sensors, tool case, free spare parts, parts catalogue & instruction manual) 2) Alterantor (with air breaker, AVR, instruction manual) 3) Small control cabinet( with Smartgen controller, battery float charger, Schneider breaker, Omron relay) 4) Base steel frame ( with industrial shock absorbers, forklift work hole) 5) Free-maintenance battery (include connecting cables)(lead-acid) 6) Strong woodcase packing. | |
Optionals(if required) | |
1) Engine quality upgrade kits, completely reinforce the parts quality 2) Alternator PMG system |
