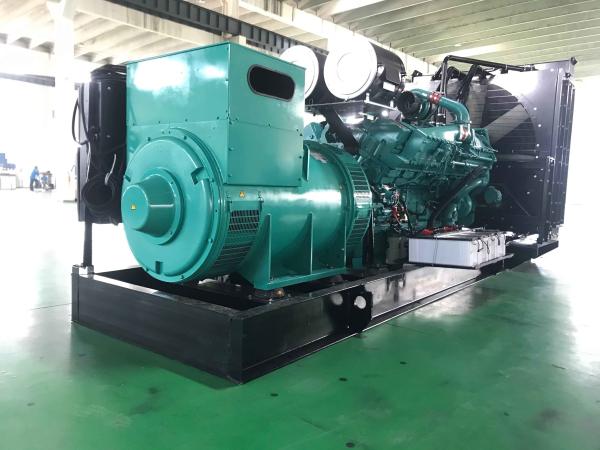

1500KAV 1200KW Cummins Diesel Powered Generator Open Type
1500KAV 1200KW Cummins Diesel Powered Generator Open Type
1500KAV 1200KW Cummins Diesel Powered Generator Open Type
1500KAV 1200KW Cummins Diesel Powered Generator Open Type
1500KAV 1200KW Cummins Diesel Powered Generator Open Type
1500KAV 1200KW Cummins Diesel Powered Generator Open Type
1500KAV 1200KW Cummins Diesel Powered Generator Open Type
1500KAV 1200KW Cummins Diesel Powered Generator Open Type
Specifications
Brand Name :
STONE POWER
Model Number :
SC1500E
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
negotiation
Supply Ability :
100 SET/month
Delivery Time :
30
Packaging Details :
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
cummins Engine Model: :
KTA50-GS8
Stamford Alternator Model: :
PI734C
Control Panel: :
SMART GEN 9510N
Prime Power: :
1200KW / 1500KVA
Standby Power: :
1320KW / 1650KVA
Frequncy & Voltage: :
50HZ & 415V
Description

Detailed Product Description
Commodity: Output Power1500KAV / 1200KW CUMMINS Open Diesel Generator CUMMINS Engine Model: KTA50-GS8
Stamford Alternator Model: PI734C Control Panel: SMARTGEN 9510N
Prime Power: 1200KW / 1500KVA Standby Power: 1320KW / 1650KVA
Frequncy & Voltage: 50HZ & 415V Engine Speed: 1500 RPM
Type: Open Type Cooling Method: Water-cooling Type
Control Mode: Manual & Auto Start Governing Type: Electric Governor
Circuit Breaker Type: 3 Pole MCCB Testing: Debugging Before Shipment

Model No. SC1500E5
Standby power 1650KVA/1320KW
Rated power 1500KVA/1200KW
Output voltage 415
Rated speed (r/min.) 1500
Noise level(7m) 80dB
Power factor COSΦ=0.8
Phase/wires 3 phase 4 wires
Start mode Electric
Fuel consumption 222L/h (average)
Rated currency(amps) 2160
Protection Low oil-pressure, High water temperature, Over-speed, Over-current.
Brand Cummins
Model KTA50-GS8
Original: China
Cylinders 16
Fuel 0# light diesel
Inter-Cooling water inter-cooling
Compression Ratio: 14.9:1

Engine Power

(prime/standby)

 1287KW/1429KW
Aspiration Turbocharged/Aftercooled
Governor/Class Electric
Bore and stroke 159×159 mm
Start mode DC24V electric start
Cylinders Layout V
Displacement 50L
Brand STAMFORD
Model PI734C
Protection IP23
Frequency fluctuation ≤±0.5 %
Voltage distortion ＜4%
Power 1500KVA(1200KW)
Original China
Rated voltage 415V
Frequency regulation ≤±0.5 %(stable)
Voltage control AVR

Standby Powered Open Diesel Generator 1500KAV / 1200KW

Stone Power Diesel Gen-sets Features:

l Standard open type is good to working in engine room with ventilation system.

l The super silent model (up to 50kw) has electronic cooling fan and special design low noise level canopy. which is specialized for low noise level environment, such as office building, villa, museum.

l Standard soundproof type(IP21) will be working perfectly in the open air

l All standard type can be working in 3rd explosive area for mining industry, special design will be suitable for 2nd explosive area.

l All functional components are modular design, for fast repair, replace, and reduce stock, which can satisfy rental business.

l 50℃ radiator

l IP54 (soundproof sets), IP56 (control system)

l Base fuel tank for at least 8 hours running

l For friendly experience, all I/O control interface and daily maintenance parts are combined in one side
