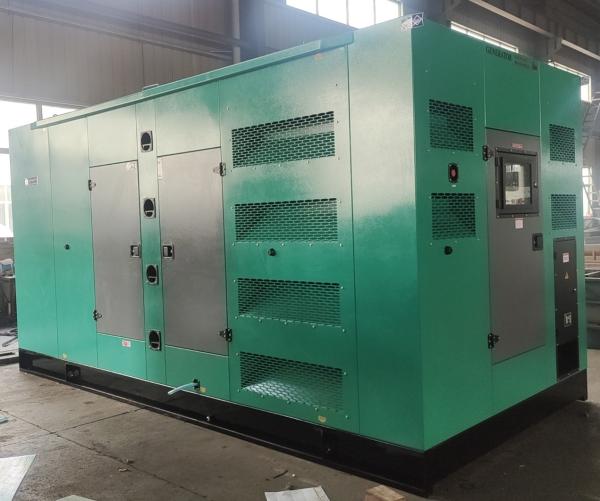

8M33D890E200 Weichai Baudouin Diesel Generator Set with Smartgen Control System and 1500/1800rpm Rated Speed

Product Description:

The Weichai Diesel Generator Set is a reliable and efficient power solution that is designed to provide continuous and reliable working in a variety of applications. With a warranty of 1000 hours or 12 months, you can trust in the durability and performance of this generator set.

Equipped with a range of engine models including WD615, WD618, WD12, WP12, WP13, WP10, WP6, WP4, and WP3, the Weichai Diesel Generator Set offers versatility to suit different sizes and power requirements. Whether you need a smaller generator for residential use or a larger one for industrial applications, there is a suitable engine model to meet your needs.

The control system options of Smartgen and Deepsea ensure seamless operation and monitoring of the generator set, allowing for easy management and customization of power output. These advanced control systems enhance the overall efficiency and reliability of the generator set.

With voltage options of 400V/230V and compatibility with both 50Hz and 60Hz frequencies, the Weichai Diesel Generator Set can be tailored to suit different electrical systems and requirements. This flexibility makes it a versatile and practical choice for a wide range of applications.

In terms of fuel consumption, the Weichai Diesel Generator Set offers an efficient range of 210-250g/kw.h, ensuring cost-effective operation without compromising on performance. This fuel efficiency makes it an environmentally friendly choice while also helping to reduce operational costs.

Overall, the Weichai Diesel Generator Set is a reliable and versatile power solution that is suitable for various applications and power needs. With its range of engine models, control system options, voltage compatibility, and fuel efficiency, this generator set offers a comprehensive and efficient solution for reliable working in different sizes and environments.

Technical Parameters:

Technical parameters of Control Panel:
Brand	Smartgen	Model	HGM6110CAN-4G
Function:
• Start or Stop Generator set manually / automatically • Open controller output can be defined as Pre-heat/Idle output • High Coolant temperature protection • Low Oil pressure protection • Over load protection • Generator over/under frequency protection • Generator over/under/unbalance voltage Protection • Over speed protection • Fuel level monitor/alarm • Remote genset monitor and control through app on cellphone
Note:Indicate this function depend on the set points of the controller in field.

Drawing	Dimension
	Open type: 4300*1750*2135 mm 7,300 kg
	Slient type: 5500*2200*2450 mm 10,000 kg

Remark:

Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(EQV ISO8528); a 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.

Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Warranty:Stone Power provides a full line of brand new and high quality products. Each Genset is strictly factory tested before delivery.

We offer client warranty Weichai whole genset 12 months or 1,000 running hours warranty which comes first.

Weichai Baudouin Weichai engine and Leroy Somer alternator enjoy wroldwise after service offered by Weichai Baudouin and Leroy Somer global after service network.

Weichai Baudouin engine enjoy 2 year or 2,000 running hours warranty.

Quick after service and parts are available from Stone Power or distributors in your location.

Packing and Shipping:

Product Packaging:

The Weichai Diesel Generator Set is carefully packaged to ensure safe delivery. Each unit is securely wrapped and placed in a sturdy cardboard box to prevent any damage during transit. The packaging also includes foam padding to protect sensitive components and ensure that the generator set arrives in perfect condition.

Shipping:

We offer reliable shipping options for the Weichai Diesel Generator Set to ensure prompt delivery to our customers. Our shipping partners are experienced in handling heavy equipment and will ensure that the generator set is delivered to your location safely and on time. You can track your shipment using the provided tracking number to stay updated on the delivery status.
