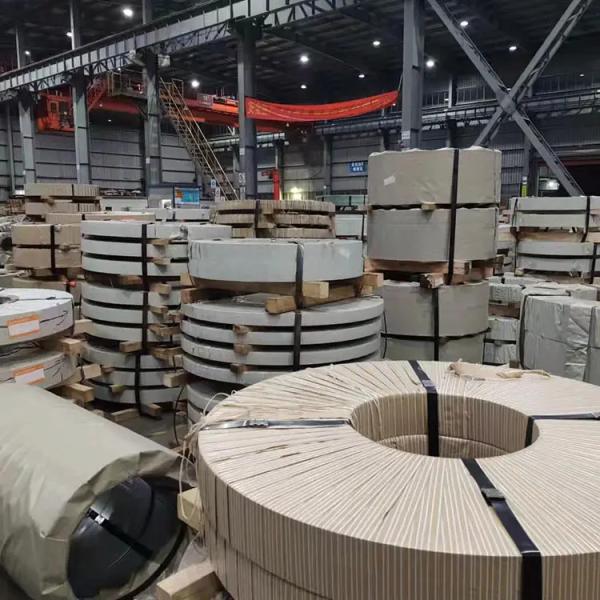

27QG120 0.27mm Oriented Silicon Steel Coils / Strips For Transformer
27QG120 0.27mm Oriented Silicon Steel Coils / Strips For Transformer
27QG120 0.27mm Oriented Silicon Steel Coils / Strips For Transformer
27QG120 0.27mm Oriented Silicon Steel Coils / Strips For Transformer
27QG120 0.27mm Oriented Silicon Steel Coils / Strips For Transformer
27QG120 0.27mm Oriented Silicon Steel Coils / Strips For Transformer
27QG120 0.27mm Oriented Silicon Steel Coils / Strips For Transformer
27QG120 0.27mm Oriented Silicon Steel Coils / Strips For Transformer
27QG120 0.27mm Oriented Silicon Steel Coils / Strips For Transformer
27QG120 0.27mm Oriented Silicon Steel Coils / Strips For Transformer
Specifications
Brand Name :
Baosteel
Model Number :
27QG120
Certification :
SGS,ISO
Place of Origin :
China
MOQ :
1ton
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000mt/ton
Delivery Time :
5-8 days
Packaging Details :
Standard Export Package
Name :
27QG120 0.27mm Oriented Silicon Steel Coils/Strips For Transformer
Standard :
GB, AISI, ASTM, DIN, JIS
Technique :
Cold Rolled
Trademark :
Baosteel
Weight :
2MT~8MT
Major Manufacturer :
BAOSTEEL, WISCO, Nippon Steel, JFE, AK
Coil ID :
508mm
Application :
All kinds of transformer, reactor, filter, inverter
Description

27QG120 0.27mm Oriented Silicon Steel Coils/Strips For Transformer

Oriented silicon steel is a low-carbon silicon iron alloy material with a silicon content of 0.5%~4.5%, which has characteristics such as high permeability(which can reduce Joule loss in power equipment, improve efficiency and energy-saving effects), lower iron loss and high resistance coefficient.

Raw material:CRGO silicon steel from Bao-steel and WISCO.

Type Grade Width Max Core Loss@P1.7T/50Hz Lamination Factor(%) Min Induction@B800
Common Type 23Q110 900-1200mm 1.10w/kg 97.2 1.82T
23Q120 1.20w/kg 97.2 1.82T
27Q120 1.20w/kg 97.5 1.82T
30G120 1.20w/kg 98 1.82T
High Induction
Type		 B20P085 900-1200mm 0.85w/kg 97 1.86T
B23P085 0.85w/kg 97.2 1.88T
B23P090 0.90w/kg 97.2 1.88T
B23P095 0.95w/kg 97.2 1.88T
B23P100 1.00w/kg 97.2 1.88T
B27P095 0.95w/kg 97.5 1.89T
B27QG120 1.20w/kg 97.5 1.89T
B30P120 1.20w/kg 98 1.89T
Domain Refined High Induction
Type(Laser)		 B20R070 900-1200mm 0.70w/kg 97 1.86T
B23RK085 0.85w/kg 97.2 1.88T
B27RK085 0.85w/kg 97.5 1.89T

27QG120 0.27mm Oriented Silicon Steel Coils / Strips For Transformer

27QG120 0.27mm Oriented Silicon Steel Coils / Strips For Transformer

27QG120 0.27mm Oriented Silicon Steel Coils / Strips For Transformer

1.Which products can we provide?
CRGO mother coils,slit coils,transformer lamination,OEM transformer core.

2. Who are we?
We are pioneer of CRGO silicon steel products in china,exclusive user of bao-steel,have established joint lab with bao-steel.

3.How can we guarantee quality?
We produce according to ISO9001:2015 Standard.Before placing order,our engineer will calculate carefully.After production,we will test it before sending out.

4. why should you buy from us not from other suppliers?
We have over 30years experience of producing transformer core, assembled with advanced Germany slitted cutting system,Georg 800 cross cutting E-stack machine.Our Annual transformer core production capacity is over 100,000 tons.
