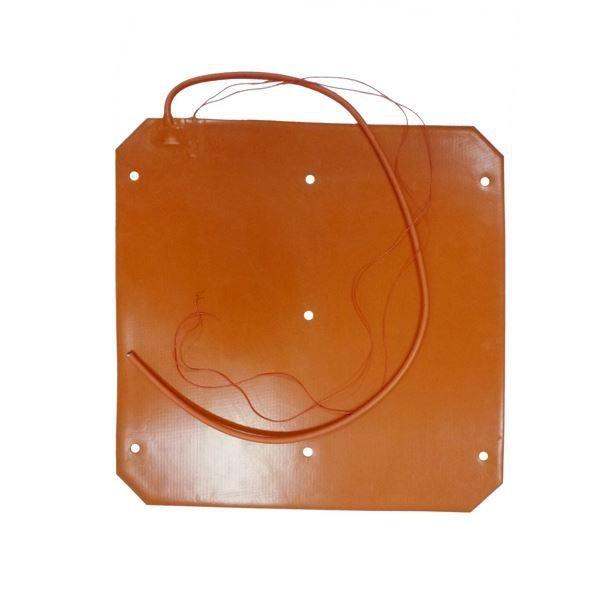

60-250deg Flexible Heaters Silicone Rubber , 4mm Silicone Heating Pad
60-250deg Flexible Heaters Silicone Rubber , 4mm Silicone Heating Pad
Specifications
Working Temperature Range :
60 - 250 ℃
Thickness :
1.5-4 mm
Key Selling Points :
High-accuracy
Usage :
High Temperature Electric Heating
Function :
car heating pad
Application :
Heater Parts
Place of Origin :
China
Brand Name :
Tuohe
Certification :
CE RoHS
MOQ :
1
Price :
negotiable
Packaging Details :
carton box
Delivery Time :
within 48 hours
Payment Terms :
Western Union, MoneyGram, T/T
Description

Flexible Electric Heating Strips Silicone Rubber Heating Element

Features:

1. Heating fast and long time using.
2. Flexible and customization.
3. Waterproof and non-toxic(Waterproof grad:IP68).
4. Custom Size .Voltage.Watt.Shape.
5. We can provide free design.
6. We carry many other silicone pads in different sizes and watts.

Silicone Heating Element​ Specifications:

Specifications
Temperature Rating 400°F(204°C)maximum operating
Size/Shape Limitations Maximum width of 48 inches, no maximum length
Thickness normally 0.03 inch/ 0.75mm (Single-Ply),0.06 inch / 1.5mm(Dual-Ply),support custom
Voltage Any AC or DC (3V-660V), or 3phase
Power density Normal 0.03-0.8watts per square centimeter,maximum 3W per square centimeter
Power lead wire Silicone rubber, SJ Power Cord, or Teflon insulated stranded wire options,usually 100cm length or as requested
Attachment Hooks, lacing eyelets, Temperature control(Thermostat),
Description 1. Silicon Rubber Heating Pad/Sheet has advantages of thinness, lightness, sticky and flexibility.
2. It can improve heat transfer, accelerate warming and decrease power under the process of operation.
3. They are heating fast and thermal conversion efficiency high.

Specifications of Silicone Heating elements

The Silicone heater can be made with two heating elements: a winding wire heating element or etch foil heating element. The winding element is composed of resistance wires wound on glass fiber wires to provide support and stability. The etch foil heater is made of thin foil (. 001") as a resistance element. For small to medium quantity, medium to large size heaters, it is recommended to use wire winding type heating element, and because of the cost of the wire wound type is more competitive, it is better to produce wire winding type before using etched foil for mass production.
