1.5v To 400v Metal Silicone Drum Heater 3.2mm Side Bending Heating Blanket
1.5v To 400v Metal Silicone Drum Heater 3.2mm Side Bending Heating Blanket
1.5v To 400v Metal Silicone Drum Heater 3.2mm Side Bending Heating Blanket
1.5v To 400v Metal Silicone Drum Heater 3.2mm Side Bending Heating Blanket
1.5v To 400v Metal Silicone Drum Heater 3.2mm Side Bending Heating Blanket
1.5v To 400v Metal Silicone Drum Heater 3.2mm Side Bending Heating Blanket
Specifications
Product name :
Silicone Drum Heater
Material :
Silicone
Key Selling Points :
High accuracy
Ambient Temperature :
-60~250℃
Insulation resistance :
≥5MΩ
Voltage :
110-480V
Place of Origin :
China
Brand Name :
Tuohe
Certification :
CE RoHS
MOQ :
1
Price :
negotiable
Packaging Details :
carton box
Delivery Time :
within 48 hours
Payment Terms :
Western Union, MoneyGram, T/T
Description

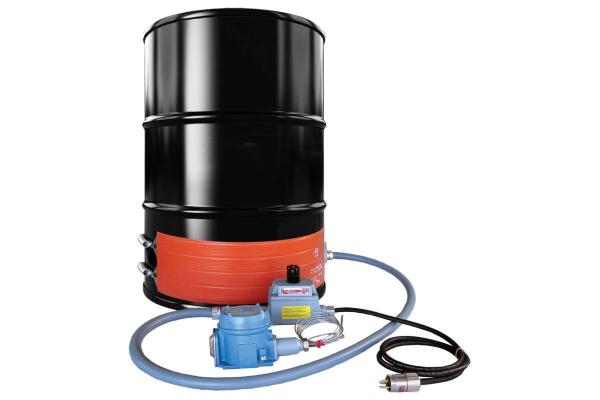

Flexible Silicone Rubber Pad Heater Oil Drum Heater With Dial Thermostat Controller

Silicone rubber has excellent insulation properties, a low thermal mass, high durability and is resistant to moisture, high temperatures and many chemicals. The use of silicone rubber to manufacture heater mats or heater pads enables the user to achieve more watts per square inch. The mats respond quickly to fluctuations in temperature and can be controlled by thermostats or temperature controllers to keep process temperatures accurate. Silicone heater mats can suit temperatures from -60°C up to +230°C.

Silicone Heater Mats and Pads are flexible heating devices consisting of wires or foil tracks which act as heating elements, between two thin layers of silicone rubber. This construction allows the heat to be evenly distributed across the surface of the mat. Silicone heater mats can be connected to heat control devices such as limit switches, thermocouples or heat sensors to regulate the temperature provided by the heater mat.

Silicone Drum Heater​ Specifications

NO. Description Parameter

1.

size

 Width range 10mm~1200mm
Length range 10mm~10000mm
Thickness 1.50mm
2. Voltage range 1.5v~400v
3. Power density range 0.07w/ cm²~2.1w/ cm²
4. Power deviation 5%
5. Resistance precision ±10%
6. working temperature range -60~250°C(-140~482°F)
7. Breakdown voltage 20~50VK/mm
8. Mechanical stress 100.00kg/ cm²
9. Minimum bending radius 3.20mm

EASY TO USE
Simply wrap the pad around your application, use the hook and coil spring attachments to secure, plug into any wall outlet, and turn the thermostat to a desired temperature from 0-250°F. Not for personal use.
