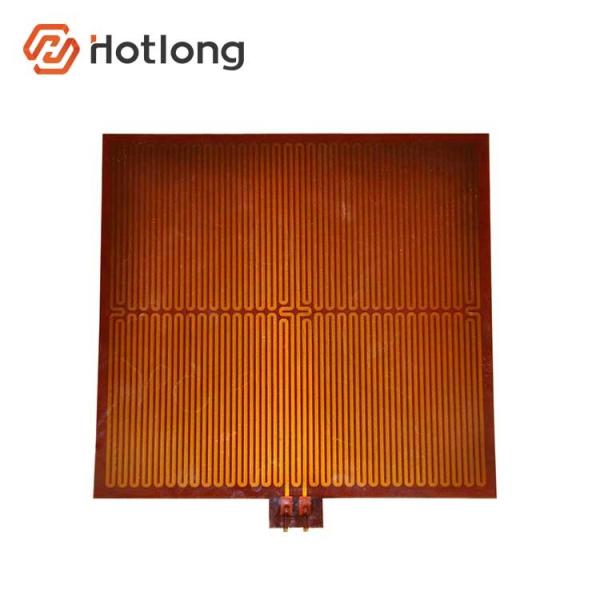

Flexible Width 500mm 440V Semi Transparent Polyimide Film Heater
Flexible Width 500mm 440V Semi Transparent Polyimide Film Heater
Flexible Width 500mm 440V Semi Transparent Polyimide Film Heater
Flexible Width 500mm 440V Semi Transparent Polyimide Film Heater
Flexible Width 500mm 440V Semi Transparent Polyimide Film Heater
Flexible Width 500mm 440V Semi Transparent Polyimide Film Heater
Flexible Width 500mm 440V Semi Transparent Polyimide Film Heater
Flexible Width 500mm 440V Semi Transparent Polyimide Film Heater
Flexible Width 500mm 440V Semi Transparent Polyimide Film Heater
Flexible Width 500mm 440V Semi Transparent Polyimide Film Heater
Specifications
Place of Origin :
JiangSu
Brand Name :
Hotlong
Certification :
CE,ISO9001
MOQ :
50-100
Price :
consultative
Delivery Time :
7-10
Warranty :
one year
Voltage :
12-480v
Type :
Air Heater
Dimension(l*w*h) :
customized
Description

Polyimide Heater

polyimide film polyimide heater,Semi-transparent, flexible and extremely thin with excellent dielectric strength, Polyimide film is ideally suited for the manufacture of etched foil heaters.

PI heaters have low thermal mass and excellent resistance to most chemicals, and allow high power densities(1w/cm2) with fast and efficient thermal transfer. Where fast response, chemical resistance is required or applications with space and weight limitations such as as satellites and aerospace equipment, polyimide film heaters offer the ideal solution.

PI heaters can also be exposed to vacuum with low out gassing and to radiation.

Flexible Width 500mm 440V Semi Transparent Polyimide Film Heater

Technical Date Sheet:

Voltage 12~440V
Wattafe Max. 0.5w/cm2
Operationg Temperature -60~200C
Width Max. 500mm
Thickness 0.126_0.266mm
Thermal protection On board thermal fuse,thermostat,thermistor and RTD devices are available as part of your thermal management solution.
Lead wire Silicone rubber,SJ power cord
Heatsink Assemblies Hooks,lacing eyelets,Or Temperature control(Thermostat)
Flammability Rating Flame retardant material systems to UL94 V-O available.

Features and Benefits
Excellent physical and electrical properties: results in thermal stability over a wide temperature range.
Transparent polyimide material: allows inspection of internal details.
Resistance of radiation and fungus: can be used in a wide range of applications.

Specifications

Power Source: Electric

Voltage: 12-480V

Power : ≤ 3W/cm2

Maximum size: 500mm*1000mm

Thickness:0.15-0.5mm

Recommended working temperature:≤ 180℃

Color: Brown

Warranty: 1 Year

Material: PI/polyimide film with etching film

Insulation material: polyimide film

Insulation resistance: 1000V,≥100MΩ

Certification: ISO9001, CE, Rohs, UL

Application: as customer’s need

Standard type size(mm) voltage power power density
HL-00368(A)-E-O 50*200 220V 50W 0.5W/CM2
HL-00368(B)-E-O 50*300 220V 75W 0.5W/CM2
HL-00368(C)-E-O 100*100 220V 50W 0.5W/CM2
HL-00368(D-E-O 100*200 220V 100W 0.5W/CM2
HL-00368(E)-E-O 100*300 220V 150W 0.5W/CM2
HL-00368(F)-E-O 200*200 220V 200W 0.5W/CM2
HL-00368(G-E-O 200*300 220V 300W 0.5W/CM2

Accessories optional

Name Model Specifications
Leading line PTFE wire UL1332 300V,26AWG-10AWG
PTFE wire UL1330 600V,26AWG-10AWG
PI line 300V,30AWG-20AWG
Silicone rubber line 300V,0.5mm2-2.5mm2
Glass fiber line 300V,0.5mm2-4mm2
3M glue 468/467 working temperature ≤ 149℃
966/9079 working temperature ≤ 179℃
9888T working temperature ≤ 119℃
Controller OT1 0-200°C JPt 100Ω sensor
OT3 0-300°C PID controller
OT4. OT5 100ºC
EGO 0-40ºC 30-110ºC 60-200ºC
Thermo 50ºC 70ºC 100ºC 120ºC 150ºC

Application

Medical applications that require a clean, sterile environment

Laboratory research
Semiconductor processing equipment
Optical equipment
LCD displays
Computer equipment
Photographic equipment
