Benefits

polyimide film is a polyimide film used in conjunction with etched foil circuits to produce very thin flexible heaters. It has excellent dielectric qualities to provide 5000 volts dielectric per 0.001inch (0.025mm) thickness.

polyimide film Heater can be made in any shapes, sizes and wattages. The working volts is from 1V to 240V. According to the different heating requirement, we can design different heating loop. So it has flexible designation.
Because of the light heavy and heating evenly, it is using in many ways, such as Satellites, aerospace equipment, mobile devices.

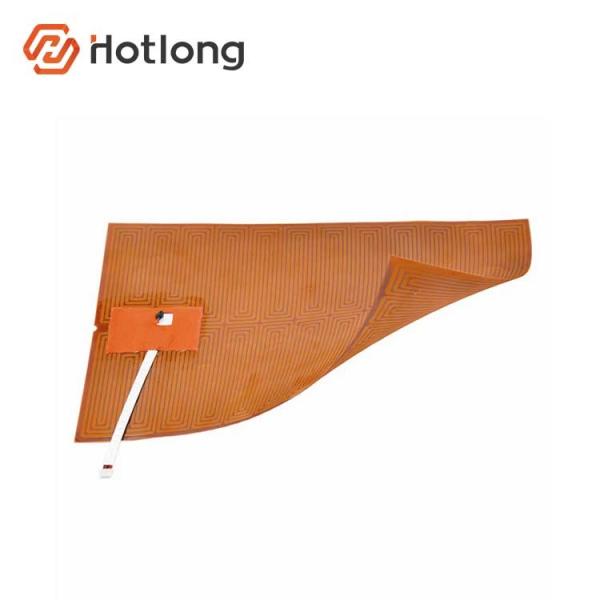

Polyimide Film heater (polyimide film heater) is available in a variety of shapes, sizes, and wattages, it is a clear amber colored polyimide film. The process for making flexible heating film is similar to that of Etched Foil Silicone heaters. It is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -185 degree celsius to 180 degree Celsius. This is very thin, the thickness is about 0.2mm, it is very light, so it is widely used on 3D printer. Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer requirement.

• 3D Printer heating elements
• Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.
• Stabilize optoelectronic components
• Test or simulate integrated circuits
• Enable cold weather operation of outdoor electronics such as laptop, ATM, LCD’s
• Protect aircraft electronic and mechanical devices in cold weather / area.

Features and Benefits
Excellent physical and electrical properties: results in thermal stability over a wide temperature range.
Transparent polyimide material: allows inspection of internal details.
Resistance of radiation and fungus: can be used in a wide range of applications.

Specifications

Power Source: Electric

Voltage: 12-480V

Power : ≤ 3W/cm2

Maximum size: 500mm*1000mm

Thickness:0.15-0.5mm

Recommended working temperature:≤ 180℃

Color: Brown

Warranty: 1 Year

Material: PI/polyimide film with etching film

Insulation material: polyimide film

Insulation resistance: 1000V,≥100MΩ

Certification: ISO9001, CE, Rohs, UL

Application: as customer’s need

Accessories optional

Application

Medical applications that require a clean, sterile environment

Laboratory research
Semiconductor processing equipment
Optical equipment
LCD displays
Computer equipment
Photographic equipment
