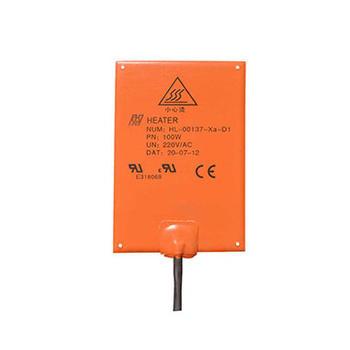

Flexible 200 Degree 200V Silicone Heat Pad For Thermal Transfer Equipment
Flexible 200 Degree 200V Silicone Heat Pad For Thermal Transfer Equipment
Specifications
Place of Origin :
JiangSu
Brand Name :
Hotlong
Certification :
ISO9001,UL,CE
MOQ :
50-100
Price :
consultative
Delivery Time :
7-10
PI line :
300V,30AWG-20AWG
468/467 :
working temperature ≤ 149℃
OT3 :
0-300°C PID controller
Thermo :
50ºC 70ºC 100ºC 120ºC 150ºC
Description

Switch Cabinet Heater

Advantage:

1. Silicone Runner Heating Pad/Sheet has advantages of thinness,lightness,sticky and flexibility.

2. It can improve heat transfer,accelerate warming and decrease power under the process of operation.

3. They are heating fast and thermal conversion efficiency high.

Main Application:

Thermal transfer equipment;

Prevent condensation in motors or instrument cabinets;

Freeze or condensation prevention in housings containing electronis equipment,for example:traffic signal boxes,automatic teller machines,temperature control panels,gas or liquid control valve housings;

Composite bonding processes

Airplane engine heaters and aerospace industry

Drums and other vessels and viscosity control and asphalt storage

Medical equipment such as blood analyzers,medical respirators,tes tube heaters,etc;

Curing of plastic laminates

Computer peripherals such as laser printers,duplicating machines

Specifications

Power Source: Electric

Voltage: 12-480V

Maximum size: 500mm*1000mm

Recommended working temperature:≤200℃

Color: Brown

Warranty: 1 Year

Material: silicone rubber with etching film

Insulation material: silicone rubber

Insulation resistance: ≥50MΩ

Certification: ISO9001, CE, Rohs, UL

Application: as customer’s need

Normal size:

Model RDB-50 RDB-70 RDB-100 RDB-150 RDB-250
Size(mm) 90x150 100x210 120x185 150x200 150x300
Power 50W 70W 100W 150W 250W

Accessories optional:

Name Model Specifications
Leading line PTFE wire UL1332 300V,26AWG-10AWG
PTFE wire UL1330 600V,26AWG-10AWG
PI line 300V,30AWG-20AWG
Silicone rubber line 300V,0.5mm2-2.5mm2
Glass fiber line 300V,0.5mm2-4mm2
3M glue 468/467 working temperature ≤ 149℃
966/9079 working temperature ≤ 179℃
9888T working temperature ≤ 119℃
Controller OT1 0-200°C JPt 100Ω sensor
OT3 0-300°C PID controller
OT4. OT5 100ºC
EGO 0-40ºC 30-110ºC 60-200ºC
Thermo 50ºC 70ºC 100ºC 120ºC 150ºC
