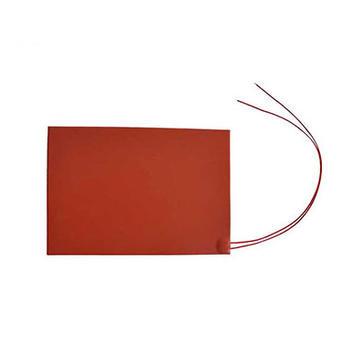

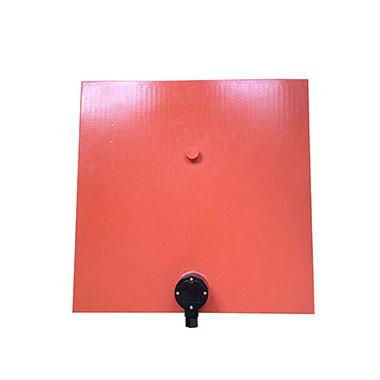

Heating Uniformity 110V 120V 240V 360V Silicone Rubber Heating Pad
Heating Uniformity 110V 120V 240V 360V Silicone Rubber Heating Pad
Heating Uniformity 110V 120V 240V 360V Silicone Rubber Heating Pad
Heating Uniformity 110V 120V 240V 360V Silicone Rubber Heating Pad
Heating Uniformity 110V 120V 240V 360V Silicone Rubber Heating Pad
Heating Uniformity 110V 120V 240V 360V Silicone Rubber Heating Pad
Heating Uniformity 110V 120V 240V 360V Silicone Rubber Heating Pad
Heating Uniformity 110V 120V 240V 360V Silicone Rubber Heating Pad
Heating Uniformity 110V 120V 240V 360V Silicone Rubber Heating Pad
Heating Uniformity 110V 120V 240V 360V Silicone Rubber Heating Pad
Specifications
Place of Origin :
JiangSu
Brand Name :
Hotlong
Certification :
ISO9001,UL,CE
MOQ :
50-100
Price :
consultative
Delivery Time :
7-10
Power source :
Electric
Voltage :
12-480v
Condition :
New
Dimension(l*w*h) :
Custom Size
Thickness :
1.5mm(standard)
Size :
Customized
Power :
Customized
Description

Silicone Rubber Heating Blanket

Silicone Rubber heating plates have the features of thin thickness and light weight, and can be easy to install and heat any shaped objects, with heating uniformity, stability and installation flexibility.

Shape
Round, Square, Rectangular (any shape customized)
Voltage
12V,24V,110V,120V,220V,230V,240V,360V (AC & DC)
Wattage
0.1-1w/cm2
Thickness
Standard 1.5mm or customized
Adhesive
3M
Temperature controller
Dial, Digital thermostat or thermistor, thermal protection or thermocouples etc
Plug options
American, European, British
Minimum Size
20*20 mm
Maximum Size
1000* 1000 mm

Benefits

Silicone Rubber Heaters can offer a high watt density while maintaining flexibility. Heat can be delivered where it is most needed.
These Silicone Heaters improve heat transfer; speed warm ups, and reduces wattage requirements. Because very little material separates the element from the part, heat transfer is fast and efficient.
Fiberglass-reinforced silicone rubber gives the heater dimensional strength without sacrificing flexibility. The heater construction creates a very thin heater allowing it to fit applications where space is limited. Silicone Rubber Heaters provide steady performance and are able to provide more wattage than polyimide electric heaters.

Features and Benefits
Custom shapes to fit your application
Peel and stick adhesive system for easy installation
Optional insulating sponge for better efficiency
Integrated temperature sensors
Choose from higher temperature Silicone Rubber.

Specifications

Power Source: Electric
Voltage: 12-480V
Power : ≤ 3W/cm2
Maximum size: 500mm*1000mm
Thickness:1-1.5mm
Recommended working temperature:≤200℃
Color: Brown
Warranty: 1 Year
Material: silicone rubber with etching film
Insulation material: silicone rubber
Insulation resistance: 1000V,≥100MΩ
Certification: ISO9001, CE, Rohs, UL
Application: as customer’s need

Accessories optional

Name Model Specifications
Leading line PTFE wire UL1332 300V,26AWG-10AWG
PTFE wire UL1330 600V,26AWG-10AWG
PI line 300V,30AWG-20AWG
Silicone rubber line 300V,0.5mm2-2.5mm2
Glass fiber line 300V,0.5mm2-4mm2
3M glue 468/467 working temperature ≤ 149℃
966/9079 working temperature ≤ 179℃
9888T working temperature ≤ 119℃
Controller OT1 0-200°C JPt 100Ω sensor
OT3 0-300°C PID controller
OT4. OT5 100ºC
EGO 0-40ºC 30-110ºC 60-200ºC
Thermo 50ºC 70ºC 100ºC 120ºC 150ºC

ApplicationHeating Uniformity 110V 120V 240V 360V Silicone Rubber Heating Pad

Heating Uniformity 110V 120V 240V 360V Silicone Rubber Heating PadHeating Uniformity 110V 120V 240V 360V Silicone Rubber Heating PadHeating Uniformity 110V 120V 240V 360V Silicone Rubber Heating Pad
