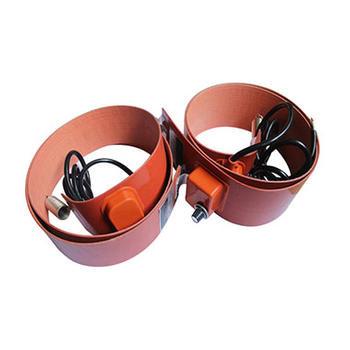

Dragonpower flexible explosion proof oil heater with thermost

Technical parameters:

Technical Data of Dragonpower flexible explosion proof oil heater with thermost :

1. Temperature range: -40.00~250.00°C

2. Electric resistance precision: ±10%( bigger value selected)

3. Power density: 0.10~1.50w/cm²

4. Mechanical pressure: 100.00kg/cm²

5. Minimum bending radius: 3.20mm

Features:

* The silicone rubber heaters have advantage of thinness, lightness and flexibility;
* The silicone rubber heater can improve heat transfer, accelerate warming and decrease power under the process of operation. Fiberglass reinforced silicone rubber stabilizes the dimension of heaters;
* The silicone rubber heater's max wattage can be made for 1 w/cm²;
* The silicone rubber heater's can be made for any size and any shapes.

Specifications

A. For 55Gal, 115V, 1500W Drum Heater
Drum Capacity 55 Gal, Drum Dia 22 1/2 In,1500 Watts, 13 Amps AC, Voltage 115, For Use With Metal Drum, Size 4 In W, Stem Rotation 310 Deg
B. For 55Gal, 230V, 1500W Drum Heater
Drum Capacity 55 Gal, Drum Dia 22 1/2 In,1500 Watts, 6.5 Amps AC, Voltage 230, For Use With Metal Drum, Size 4 In W, Stem Rotation 310 Deg
C. For 55Gal, 115V, 1000W Drum Heater
Drum Capacity 55 Gallons, Voltage Rating 115 Volts, Power Rating 1000 Watts, Current Rating 8.7 Amps, Drum Diameter 22 1/2 Inches
D. For 55Gal, 230V, 1000W Drum Heater
Drum Capacity 55 Gallons, Voltage Rating 230 Volts, Power Rating 1000 Watts, Current Rating 4.35Amps, Drum Diameter 22 1/2 Inches
E. For 30Gal, 230V, 750W Drum Heater
Drum Capacity 30 Gallons, Voltage Rating 230 Volts, Power Rating 750 Watts, Current Rating 6.6 Amps, Drum Diameter 18 1/4 Inches
F. For 30Gal, 115V,750W Drum Heater
Drum Capacity 30 Gallons, Voltage Rating 115 Volts, Power Rating 750 Watts, Current Rating 6.6 Amps, Drum Diameter 18 1/4 Inches

Accessories optional
