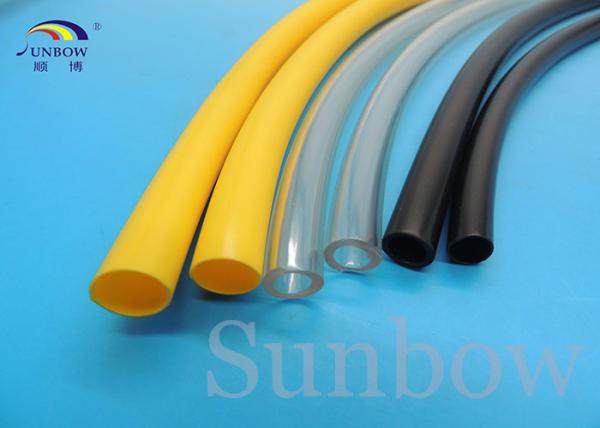

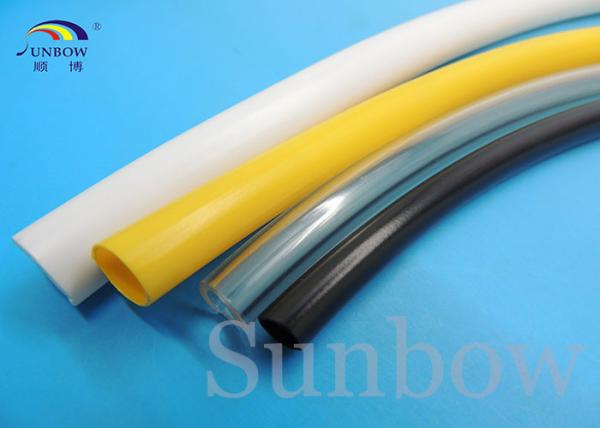

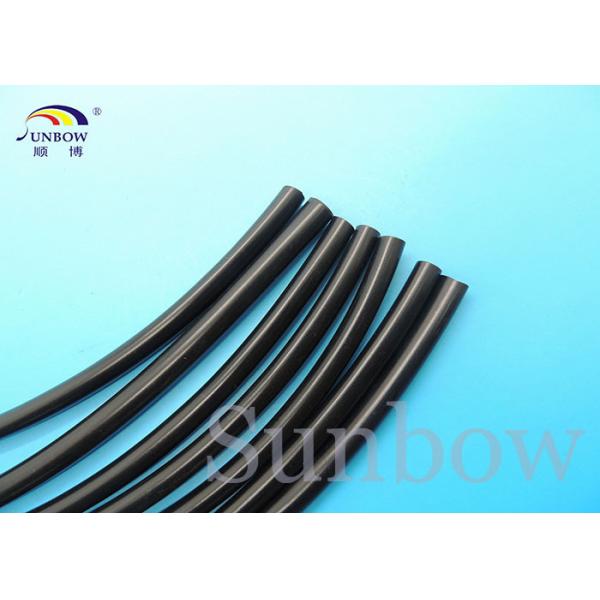

Wire Management flexibleTubing 4mm Clear PVC Tubings For wire harness
Wire Management flexibleTubing 4mm Clear PVC Tubings For wire harness
Wire Management flexibleTubing 4mm Clear PVC Tubings For wire harness
Wire Management flexibleTubing 4mm Clear PVC Tubings For wire harness
Wire Management flexibleTubing 4mm Clear PVC Tubings For wire harness
Wire Management flexibleTubing 4mm Clear PVC Tubings For wire harness
Wire Management flexibleTubing 4mm Clear PVC Tubings For wire harness
Wire Management flexibleTubing 4mm Clear PVC Tubings For wire harness
Specifications
Brand Name :
SUNBOW
Model Number :
SB-PVC
Certification :
TS, ISO, UL, REACH, ROHS
Place of Origin :
CHINA
MOQ :
1000m
Price :
USD0.5-5 per meter
Payment Terms :
Western Union, T/T,paypal
Supply Ability :
9,000,000 meters per month
Packaging Details :
packing in rolls,50-500m/roll
Material :
PVC
Voltage rating :
300V & 600V
Working temperature :
-30℃-105℃
Size :
inner diameter 0.8-26 mm
Color :
Black, clear, white, red, yellow etc
Certificate :
UL, REACH, ROHS, TS, ISO
Product Name :
Wire Management Tubing 4mm ID 6mm OD Clear PVC Tubing Pipe Hose
Description

Wire Management flexibleTubing 4mm Clear PVC Tubings for wire harness

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Sunbow
  • Model Number: SB-PVC
  • Type: Insulation Sleeving
  • Material: PVC
  • Application: High Temperature
  • Rated Voltage: 300V/600V
  • Tensile Strength: 10.4MPA
  • working tempeature: -30c-105c
  • voltage rating: 300v/600v
  • color: transparant,black,red,blown,yellow,grey etc
  • material: pvc
  • size range: 0.8~25.0mm
  • rigidity/hardness: 45~80A
  • certification: UL, REACH, ROHS
  • UL NO.: E467953---YDQS2
  • Product name: Wire Management Tubing 4mm ID 6mm OD Clear PVC Tubing Pipe Hose

Specification

Item

Unit

Test Method

Numerical Value

SB-300

SB-600

Voltage Rating

V

300

600

Temperature Rating

ºC

UL224

105

Voltage Resistance

Before Aging

UL224 23ºC

2500V/60sec

After Aging

UL224 136ºC 168hrs

2500V/60sec

Volume Resistivity

Ωcm

UL224

≥1010

Tensile Strength

Before Aging

Mpa

UL224 23ºC

≥10.4

After Aging

Mpa

UL224 136ºC 168hrs

≥7.3

Elongation

Before Aging

％

UL224 23ºC

≥100％

After Aging

％

UL224 136ºC 168hrs

≥100％

Flexibility

UL224 136ºC 168hrs

No Cracking

Heat Shock

UL224 180ºC 4hrs

No Cracking

Cold Bend

UL224 30ºC 1hrs

No Cracking

Copper Stability

UL224 136ºC 168hrs

No Corrosion

Flame Resistance

UL224

VW－1

Special instruction: The PVC tubing supplied for the customers should be based upon the samples which are confirmed by both sides, not restricted by the above performance index.

Dimension

(One) The British System Series of AWG

AWG No.

Inner Diameter(mm)

Wall Thickness (mm)

Package (m/roll)

SB-300

SB-600

24

0.55±0.1

0.25±0.05

0.40±0.05

305

22

0.65±0.1

0.25±0.05

0.40±0.05

305

20

0.85±0.1

0.25±0.05

0.40±0.05

305

19

0.9±0.1

0.30±0.05

0.40±0.05

305

18

1.0±0.15

0.30±0.05

0.45±0.05

305

17

1.2±0.15

0.30±0.05

0.45±0.05

305

16

1.3±0.15

0.30±0.05

0.45±0.05

305

15

1.5±0.15

0.30±0.05

0.45±0.05

305

14

1.7±0.15

0.30±0.05

0.45±0.05

305

13

1.9±0.2

0.30±0.05

0.45±0.05

305

12

2.1±0.2

0.35±0.05

0.50±0.05

305

11

2.4±0.2

0.35±0.05

0.50±0.05

305

10

2.7±0.2

0.35±0.05

0.50±0.05

305

9

3.0±0.2

0.40±0.05

0.50±0.05

305

8

3.3±0.2

0.40±0.05

0.50±0.05

305

7

3.7±0.2

0.40±0.05

0.50±0.05

305

6

4.2±0.3

0.45±0.05

0.50±0.05

305

5

4.7±0.3

0.45±0.05

0.55±0.05

305

4

5.3±0.3

0.45±0.05

0.55±0.05

305

3

5.9±0.3

0.45±0.05

0.55±0.05

305

2

6.6±0.3

0.45±0.05

0.55±0.05

152

1

7.4±0.35

0.45±0.05

0.55±0.55

152

0

8.3±0.35

0.45±0.05

0.55±0.55

152

(Two) The British System Series

Size (inch)

Inner Diameter(mm)

Wall Thickness(mm)

Package (m/roll)

SB-300

SB-600

5/16

8.0±0.35

0.45±0.05

0.55±0.05

152

3/8

9.5±0.35

0.50±0.05

0.55±0.05

152

7/16

11.1±0.35

0.55±0.10

0.65±0.10

152

1/2

12.7±0.35

0.55±0.10

0.65±0.10

152

9/16

14.3±0.4

0.65±0.10

0.75±0.10

76

5/8

16.0±0.4

0.65±0.10

0.75±0.10

76

3/4

19.0±0.4

0.65±0.10

0.75±0.10

76

7/8

22.0±0.5

0.75±0.15

0.85±0.15

76

1

25.0±0.5

0.75±0.15

0.85±0.15

76

0

27.0±0.8

0.75±0.15

0.85±0.15

76

(Three) The Metric System Series

Inner Diameter

(mm)

Wall Thickness(mm)

Package (m/roll)

SB-300

SB-600

0.80±0.1

0.25±0.05

0.40±0.05

500

1.0±0.1

0.30±0.05

0.40±0.05

500

1.5±0.1

0.33±0.05

0.45±0.05

400

2.0±0.2

0.33±0.05

0.50±0.05

400

2.5±0.2

0.35±0.05

0.50±0.05

300

3.0±0.2

0.40±0.05

0.50±0.05

300

3.5±0.2

0.40±0.05

0.50±0.05

300

4.0±0.2

0.45±0.05

0.55±0.05

300

4.5±0.3

0.45±0.05

0.55±0.05

300

5.0±0.3

0.45±0.05

0.55±0.05

300

6.0±0.3

0.45±0.05

0.55±0.05

300

7.0±0.3

0.45±0.05

0.55±0.05

150

8.0±0.35

0.45±0.05

0.55±0.05

150

9.0±0.35

0.50±0.05

0.60±0.05

150

10.0±0.35

0.55±0.10

0.65±0.10

150

11.0±0.40

0.55±0.10

0.65±0.10

150

12.0±0.40

0.55±0.10

0.65±0.10

150

13.0±0.40

0.55±0.10

0.65±0.10

150

14.0±0.40

0.55±0.10

0.65±0.10

150

15.0±0.40

0.60±0.10

0.70±0.10

50

16.0±0.40

0.60±0.10

0.70±0.10

50

17.0±0.40

0.60±0.10

0.70±0.10

50

18.0±0.40

0.60±0.10

0.70±0.10

50

19.0±0.40

0.65±0.10

0.75±0.10

50

20.0±0.50

0.65±0.10

0.75±0.10

50

21.0±0.50

0.65±0.10

0.75±0.10

50

22.0±0.50

0.70±0.10

0.80±0.10

50

23.0±0.50

0.70±0.10

0.80±0.10

50

24.0±0.50

0.75±0.10

0.85±0.10

50

25.0±0.50

0.75±0.10

0.85±0.10

50

26.0±0.50

0.85±0.10

0.85±0.10

50

Wire Management flexibleTubing 4mm Clear PVC Tubings For wire harnessWire Management flexibleTubing 4mm Clear PVC Tubings For wire harness
