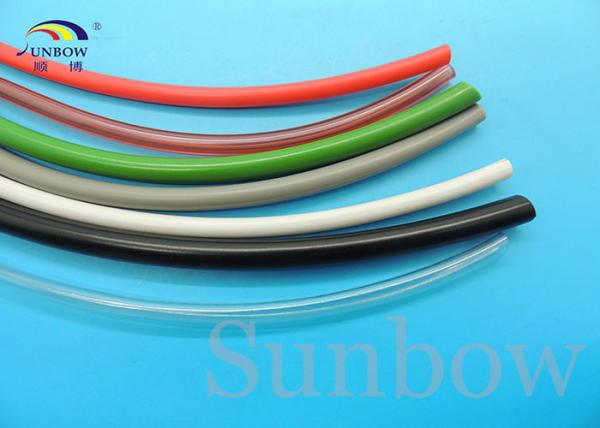

600V/300V Flexible PVC Tubings Red 1/4 ID 3/8 OD UL224
600V/300V Flexible PVC Tubings Red 1/4 ID 3/8 OD UL224
600V/300V Flexible PVC Tubings Red 1/4 ID 3/8 OD UL224
600V/300V Flexible PVC Tubings Red 1/4 ID 3/8 OD UL224
600V/300V Flexible PVC Tubings Red 1/4 ID 3/8 OD UL224
600V/300V Flexible PVC Tubings Red 1/4 ID 3/8 OD UL224
600V/300V Flexible PVC Tubings Red 1/4 ID 3/8 OD UL224
600V/300V Flexible PVC Tubings Red 1/4 ID 3/8 OD UL224
Specifications
Brand Name :
SUNBOW
Model Number :
SB-PVC
Certification :
UL no E467953
Place of Origin :
CHINA
MOQ :
1000m
Price :
USD0.5-5 per meter
Payment Terms :
Western Union, T/T,paypal
Supply Ability :
9,000,000 meters per month
Packaging Details :
packing in rolls,50-500m/roll
Material :
PVC
Voltage rating :
300V&600V
Flame resistance :
UL224,VW-1
Working temperature :
-30℃-105℃
Color :
black,blue,white......
Product name :
600V Flexible PVC Tubing PVC Tubings Red 1/4" ID 3/8" OD
Description

600V/300V Flexible PVC Tubings Red 1/4" ID 3/8" OD UL224

Structure

PVC tubing is produced by superior and environmental- friendly polyvinyl colloidal particle, after drying, extruded to tubing when heated up and liquated, then packing in rolls after cooling.

Usage

With the excellent flexibility, mechanical and dielectric capability, flame resistance performance, PVC tubing is widely used in outside insulation protection of outgoing wires of electrical appliances, transformers, electrical motors or lighting equipment, electronic components, wire harness and etc.

Specification

Item

Unit

Test Method

Numerical Value

SB-300

SB-600

Voltage Rating

V

300

600

Temperature Rating

ºC

UL224

105

Voltage Resistance

Before Aging

UL224 23ºC

2500V/60sec

After Aging

UL224 136ºC 168hrs

2500V/60sec

Volume Resistivity

Ωcm

UL224

≥1010

Tensile Strength

Before Aging

Mpa

UL224 23ºC

≥10.4

After Aging

Mpa

UL224 136ºC 168hrs

≥7.3

Elongation

Before Aging

％

UL224 23ºC

≥100％

After Aging

％

UL224 136ºC 168hrs

≥100％

Flexibility

UL224 136ºC 168hrs

No Cracking

Heat Shock

UL224 180ºC 4hrs

No Cracking

Cold Bend

UL224 30ºC 1hrs

No Cracking

Copper Stability

UL224 136ºC 168hrs

No Corrosion

Flame Resistance

UL224

VW－1

Special instruction: The PVC tubing supplied for the customers should be based upon the samples which are confirmed by both sides, not restricted by the above performance index.

Dimension

(One) The British System Series of AWG

AWG No.

Inner Diameter(mm)

Wall Thickness (mm)

Package (m/roll)

SB-300

SB-600

24

0.55±0.1

0.25±0.05

0.40±0.05

305

22

0.65±0.1

0.25±0.05

0.40±0.05

305

20

0.85±0.1

0.25±0.05

0.40±0.05

305

19

0.9±0.1

0.30±0.05

0.40±0.05

305

18

1.0±0.15

0.30±0.05

0.45±0.05

305

17

1.2±0.15

0.30±0.05

0.45±0.05

305

16

1.3±0.15

0.30±0.05

0.45±0.05

305

15

1.5±0.15

0.30±0.05

0.45±0.05

305

14

1.7±0.15

0.30±0.05

0.45±0.05

305

13

1.9±0.2

0.30±0.05

0.45±0.05

305

12

2.1±0.2

0.35±0.05

0.50±0.05

305

11

2.4±0.2

0.35±0.05

0.50±0.05

305

10

2.7±0.2

0.35±0.05

0.50±0.05

305

9

3.0±0.2

0.40±0.05

0.50±0.05

305

8

3.3±0.2

0.40±0.05

0.50±0.05

305

7

3.7±0.2

0.40±0.05

0.50±0.05

305

6

4.2±0.3

0.45±0.05

0.50±0.05

305

5

4.7±0.3

0.45±0.05

0.55±0.05

305

4

5.3±0.3

0.45±0.05

0.55±0.05

305

3

5.9±0.3

0.45±0.05

0.55±0.05

305

2

6.6±0.3

0.45±0.05

0.55±0.05

152

1

7.4±0.35

0.45±0.05

0.55±0.55

152

0

8.3±0.35

0.45±0.05

0.55±0.55

152

(Two) The British System Series

Size (inch)

Inner Diameter(mm)

Wall Thickness(mm)

Package (m/roll)

SB-300

SB-600

5/16

8.0±0.35

0.45±0.05

0.55±0.05

152

3/8

9.5±0.35

0.50±0.05

0.55±0.05

152

7/16

11.1±0.35

0.55±0.10

0.65±0.10

152

1/2

12.7±0.35

0.55±0.10

0.65±0.10

152

9/16

14.3±0.4

0.65±0.10

0.75±0.10

76

5/8

16.0±0.4

0.65±0.10

0.75±0.10

76

3/4

19.0±0.4

0.65±0.10

0.75±0.10

76

7/8

22.0±0.5

0.75±0.15

0.85±0.15

76

1

25.0±0.5

0.75±0.15

0.85±0.15

76

0

27.0±0.8

0.75±0.15

0.85±0.15

76

(Three) The Metric System Series

Inner Diameter

(mm)

Wall Thickness(mm)

Package (m/roll)

SB-300

SB-600

0.80±0.1

0.25±0.05

0.40±0.05

500

1.0±0.1

0.30±0.05

0.40±0.05

500

1.5±0.1

0.33±0.05

0.45±0.05

400

2.0±0.2

0.33±0.05

0.50±0.05

400

2.5±0.2

0.35±0.05

0.50±0.05

300

3.0±0.2

0.40±0.05

0.50±0.05

300

3.5±0.2

0.40±0.05

0.50±0.05

300

4.0±0.2

0.45±0.05

0.55±0.05

300

4.5±0.3

0.45±0.05

0.55±0.05

300

5.0±0.3

0.45±0.05

0.55±0.05

300

6.0±0.3

0.45±0.05

0.55±0.05

300

7.0±0.3

0.45±0.05

0.55±0.05

150

8.0±0.35

0.45±0.05

0.55±0.05

150

9.0±0.35

0.50±0.05

0.60±0.05

150

10.0±0.35

0.55±0.10

0.65±0.10

150

11.0±0.40

0.55±0.10

0.65±0.10

150

12.0±0.40

0.55±0.10

0.65±0.10

150

13.0±0.40

0.55±0.10

0.65±0.10

150

14.0±0.40

0.55±0.10

0.65±0.10

150

15.0±0.40

0.60±0.10

0.70±0.10

50

16.0±0.40

0.60±0.10

0.70±0.10

50

17.0±0.40

0.60±0.10

0.70±0.10

50

18.0±0.40

0.60±0.10

0.70±0.10

50

19.0±0.40

0.65±0.10

0.75±0.10

50

20.0±0.50

0.65±0.10

0.75±0.10

50

21.0±0.50

0.65±0.10

0.75±0.10

50

22.0±0.50

0.70±0.10

0.80±0.10

50

23.0±0.50

0.70±0.10

0.80±0.10

50

24.0±0.50

0.75±0.10

0.85±0.10

50

25.0±0.50

0.75±0.10

0.85±0.10

50

26.0±0.50

0.85±0.10

0.85±0.10

50

Remark: Other sizes and color can be produced upon request.

Color:any colors available upon request
