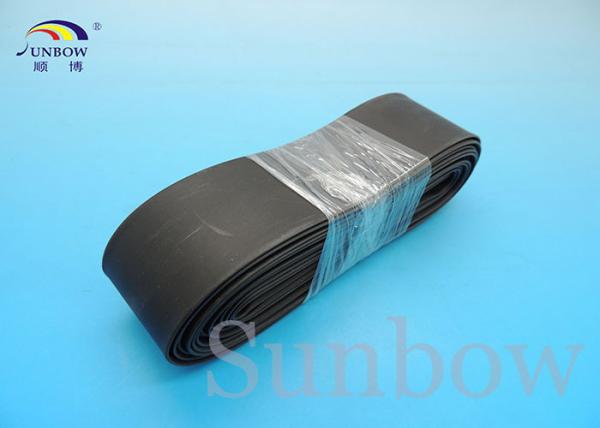

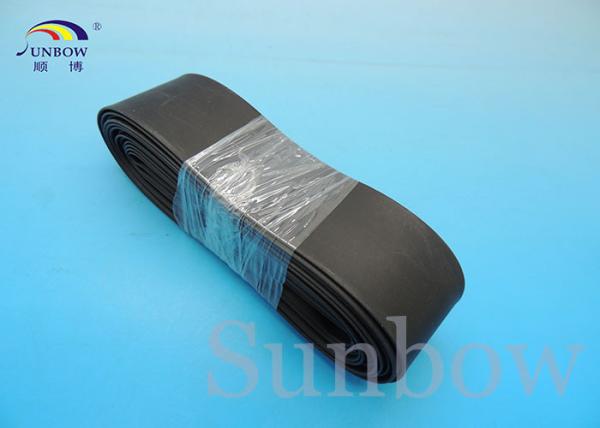

Black 5mm Dia 2:1 Polyolefin Heat Shrink Tubing Shrinkable Tubing Tube Sleeves
Black 5mm Dia 2:1 Polyolefin Heat Shrink Tubing Shrinkable Tubing Tube Sleeves
Black 5mm Dia 2:1 Polyolefin Heat Shrink Tubing Shrinkable Tubing Tube Sleeves
Black 5mm Dia 2:1 Polyolefin Heat Shrink Tubing Shrinkable Tubing Tube Sleeves
Black 5mm Dia 2:1 Polyolefin Heat Shrink Tubing Shrinkable Tubing Tube Sleeves
Black 5mm Dia 2:1 Polyolefin Heat Shrink Tubing Shrinkable Tubing Tube Sleeves
Black 5mm Dia 2:1 Polyolefin Heat Shrink Tubing Shrinkable Tubing Tube Sleeves
Black 5mm Dia 2:1 Polyolefin Heat Shrink Tubing Shrinkable Tubing Tube Sleeves
Specifications
Brand Name :
Sunbow
Model Number :
SB-SBRSM&SB-RSFRM
Certification :
UL no E360625,RoHS/REACH
Place of Origin :
CHINA
MOQ :
500M
Price :
USD0.09-16.4 per meter
Payment Terms :
Western Union, T/T,paypal
Supply Ability :
9,000,000 meters per month
Packaging Details :
packing by rolls,50-200m/roll
Characteristic :
Flexible, flame retardant, eco-friendly, quick shrink, bright color stand, stable performance
Working temperature :
-45ºC ~ 125ºC
Shrink ratio :
3:1
Shrink temperature :
70ºC ~ 125ºC
Color :
black,white,red,blue,green...
Size :
inner diameter 10-85mm
Description

Black 5mm Dia 2:1 Polyolefin Heat Shrink Tubing Shrinkable Tubing Tube Sleeves

Medium wall heat shrinkable tube is manufactured by co-extrusion polyolefin and environmental friendly hot-melt adhesive. It is designed to provide both insulation and sealing for protected articles. Both adhesive-lined and without adhesive are available.

Usage:

It has semi-rigid, electrical insulation, mechanical protection and sealing damp proof functions. It is mainly used in electrons, electricity, telecommunications, automobile, shipping, aerospace manufacturing etc.

Characteristics:

1. Shrink ratio: 3:1

2. Shrink temperature: 70ºC ~ 125ºC

3. Semi-rigid, insulated, excellent sealing performance

Standard:

1) Standard: RoHS and Reach approval

2) Our normal color is black (other color available upon request)

Dimension:

1) Flame Retardant Heat Shrinkable Tube with Adhesive Lined

Inner Diameter (mm)

As Supplied (mm)

After Recovery(mm)

Standard Package (mm)

ID

Wall Thickness

10.2/3.0

≥10.2

≤3.0

1.75±0.25

1.22

16/5.0

≥16

≤5.0

1.90±0.25

1.22

19.1/5.6

≥19.1

≤5.6

2.45±0.25

1.22

25/8

≥25

≥8

2.45±0.25

1.22

28/9

≥28

≤9

2.60±0.25

1.22

35/10.2

≥35

≤10.2

2.70±0.25

1.22

38.1/12

≥38.1

≤12

2.70±0.25

1.22

43.2/12.7

≥43.2

≤12.7

2.70±0.25

1.22

52.1/16

≥52.1

≤16

2.80±0.30

1.22

63/19

≥63

≤19

3.00±0.30

1.22

75/22

≥75

≤22

3.00±0.30

1.22

85/25

≥85

≤25

3.30±0.30

1.22

95/29

≥95

≤29

3.70±0.35

1.22

115/34

≥115

≤34

3.70±0.35

1.22

140/42

≥140

≤42

3.70±0.35

1.22

2) Flame Retardant Heat Shrinkable Tube without Adhesive Lined

Inner Diameter

(mm)

As Supplied ID (mm)

After Recovery(mm)

Standard Package

(m/pc)

ID

Out Layer Thickness

Adhesive Layer Thickness

Whole Wall Thickness

10.2/3.0

≥10.2

≤3.0

1.4±0.20

0.35±0.10

1.75±0.25

1.22

16/5.0

≥16

≤5.0

1.5±0.20

0.40±0.10

1.90±0.25

1.22

19.1/5.6

≥19.1

≤5.6

2.0±0.20

0.45±0.10

2.45±0.25

1.22

25/8

≥25

≥8

2.0±0.20

0.45±0.10

2.45±0.25

1.22

28/6

≥28

≥6

2.5±0.20

0.65±0.10

3.10±0.30

1.22

28/9

≥28

≤9

2.0±0.20

0.50±0.10

2.60±0.25

1.22

35/10.2

≥35

≤10.2

2.2±0.20

0.78±0.10

2.70±0.25

1.22

38.1/12

≥38.1

≤12

2.2±0.20

0.50±0.10

2.70±0.25

1.22

43.2/12.7

≥43.2

≤12.7

2.2±0.20

0.50±0.10

2.70±0.25

1.22

52.1/16

≥52.1

≤16

2.3±0.25

0.50±0.15

2.80±0.30

1.22

63/19

≥63

≤19

2.5±0.25

0.50±0.15

3.00±0.30

1.22

75/22

≥75

≤22

2.6±0.25

0.50±0.15

3.00±0.30

1.22

85/25

≥85

≤25

2.8±0.30

0.50±0.15

3.30±0.30

1.22

95/29

≥95

≤29

3.1±0.30

0.60±0.20

3.70±0.35

1.22

115/34

≥115

≤34

3.1±0.30

0.60±0.20

3.70±0.35

1.22

140/42

≥140

≤42

3.1±0.30

0.60±0.20

3.70±0.35

1.22

Color: Standard color is black,other colors available upon request
