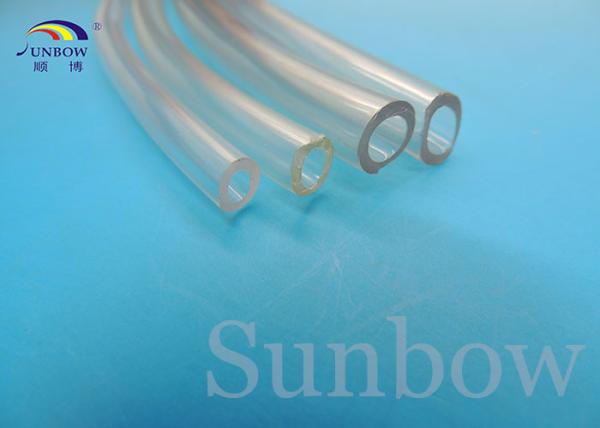

Flame retardant UL224 Plastic clear pvc pipe tubing For Wire Jacket
Flame retardant UL224 Plastic clear pvc pipe tubing For Wire Jacket
Specifications
Brand Name :
SUNBOW
Model Number :
SB-PVC
Certification :
UL, ROHS, REACH
Place of Origin :
Guangdong, China
MOQ :
2000 meters
Price :
USD 0.01-0.99 /M
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
200000 meters/ month
Delivery Time :
5-7 work days
Packaging Details :
packing by rolls, then rolls by carton
Product name :
Clear plastic PVC tube
Material :
PVC
Color :
clear, black, white, red, yellow, brown, grey, etc.
Flammability :
UL VW-1
Working temperature :
-30-105 degree
resistant voltage :
300V or 600V
Size :
ID 0.8-25 mm
Description

Flame retardant UL224 Plastic clear pvc pipe tubing For Wire Jacket

GRADE:SB-PVC

Working temperature:-30°C~+105°C

STRUCTURE

UL Approval Clear Soft PVC Pipe /PVC tubing is produced with superior and environmentally friendly polyvinyl colloidal particle, after drying, extruded to tubing when heated up and liquated, then packing in rolls after cooling.

USAGE

With the excellent flexibility, mechanical and dielectric capability, flame resistance performance, PVC tubing is widely used in outside insulation protection of outgoing wires of electrical appliances, transformers, electrical motors or lighting equipment, and electronic components, wire harness and etc.

SPECIFICATION

Item Unit Test Method Numerical Value
SB-300 SB-600
Voltage rating V 300 600
Temperature rating °C UL224 105
Voltage resistance Before aging UL224 23°C 2500V/60sec
After aging UL224 136°C 168hr 2500V/60sec
Volume resistivity Ωcm UL224 ≥1010
Tensile strength Before aging Mpa UL224 23°C ≥10.4
After aging Mpa UL224 136°C 168hr ≥7.3
Elongation Before aging % UL224 23°C ≥100%
After aging % UL224 136°C 168hr ≥100%
Flexibility UL224 136°C 168hr No cracking
Heat shock UL224 180°C 4hr No cracking
Cold bend UL224 -30°C 1hr No cracking
Copper stability UL224 136°C 168hr No corrosion
Flame resistance UL224 VW-1

DIMENSION

Flame retardant UL224 Plastic clear pvc pipe tubing For Wire JacketFlame retardant UL224 Plastic clear pvc pipe tubing For Wire JacketFlame retardant UL224 Plastic clear pvc pipe tubing For Wire JacketFlame retardant UL224 Plastic clear pvc pipe tubing For Wire Jacket

Flame retardant UL224 Plastic clear pvc pipe tubing For Wire JacketFlame retardant UL224 Plastic clear pvc pipe tubing For Wire Jacket
