Specifications
Brand Name :
SUNBOW
Model Number :
SB-SGS-40
Certification :
UL, REACH, ROHS, ISO9001:2008
Place of Origin :
Shenzhen China
MOQ :
2000 meters
Price :
USD
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
9,000,000meters/month
Delivery Time :
5~8 working days
Packaging Details :
Sunbow standard packing
Product Name :
fray resistant Silicone Saturated Fiberglass Sleeving Silicone fiberglass sleeves
Material :
Silicone resin, fiberglass
Working Temperature :
200 C
Size Range :
0.5~30.0 mm
Certificates :
UL, REACH, ROHS, ISO9001:2008
UL NO. :
E333178
Application :
AC motor, heater, wire hardness, bus bar, component leads, assemblies of electric components etc.
Color :
White, others could be customized
Description

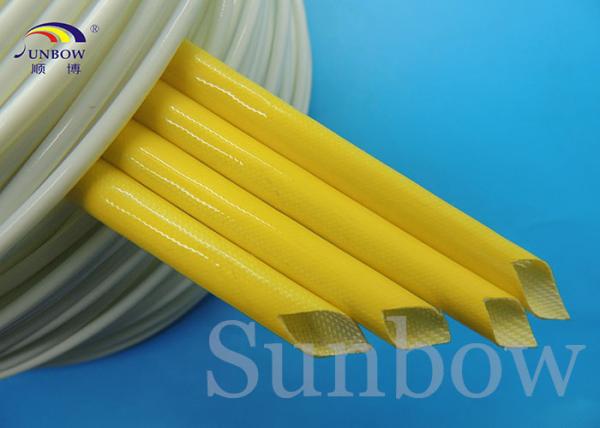

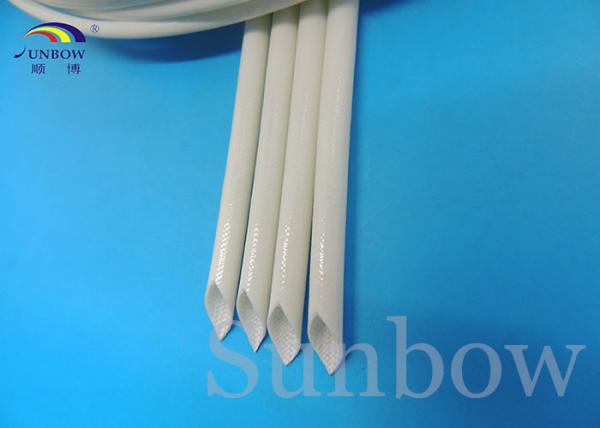

Fray resistant Saturated Silicone Fiberglass Sleeving , heat proof cable sleeve

Working temperature:200°C

Fiberglass Sleeving treated at high temperature with special kind of silicone resin. Flexible silicone varnish fiberglass tubing possesses good qualities of dielectric, domestic electrical appliances heating electric equipment, TV set, and electric apparatus, and it's also suitable for the protection of collected

strands of wire.

The material content of the SB-SGS-40 is Non-Alkali Fiberglass Braided then coated with silicone resin and treated in high temperature.

SB-SGS-40 sleeving with its good dielectric strength, flexibility and flame retarding properties make it high performance qualities. It can be widely used in insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.

SPECIFICATION

ITEM

PERFORMANCE)

NOTE

DIELECTRIC BREAKDOWN

VOLTAGE KV AC

MINIMUM AVERAGE

≥4.0

BEFORE AGED

MINIMUM SINGLE POINT

≥3.0

MINIMUM AVERAGE

≥3.0

6 HRS* 245±5°C

245±5°C 6HRS AGING

MINIMUM SINGLE POINT

≥2.0

THERMAL ENDURANCE

NO INDICATION OF CRACK

OK

6 HRS* 245±5°C

245±5°C 6HRS AGING

FIRE RESISTANCE

VW-1

OK

UL 1441

DIMENSION

INSIDE DIAMETER

WALL THICKNESS MINIMUM

(mm)

STANDARD PACKAGE

m/roll

NOMINAL(mm)

TOLERANCE(mm)

φ0.5

+0.2, -0.1

≥0.37

200

φ1.0

+0.2, -0.1

≥0.37

200

φ1.5

+0.2, -0.1

≥0.37

200

φ2.0

+0.2, -0.1

≥0.37

200

φ2.5

+0.3, -0.1

≥0.42

200

φ3.0

+0.3, -0.1

≥0.42

200

φ4.0

+0.3, -0.1

≥0.42

200

φ4.5

+0.3, -0.1

≥0.51

100

φ5.0

+0.3, -0.1

≥0.51

100

φ6.0

+0.3, -0.1

≥0.51

100

φ7.0

+0.3, -0.1

≥0.56

100

φ8.0

+0.3, -0.1

≥0.56

100

φ9.0

+0.3, -0.1

≥0.66

100

φ10.0

+0.3, -0.1

≥0.66

100

φ12.0

+1.0, -1.0

≥0.66

50

φ14.0

+1.0, -1.0

≥0.66

50

φ16.0

+1.0, -1.0

≥0.66

50

φ18.0

+1.0, -1.0

≥0.66

50

φ20.0

+1.0, -1.0

≥0.76

25

φ25.0

+1.0, -1.0

≥0.76

25

φ30.0

+1.0, -1.0

≥0.76

25

PACKAGE: Packing by rolls or cut upon request.

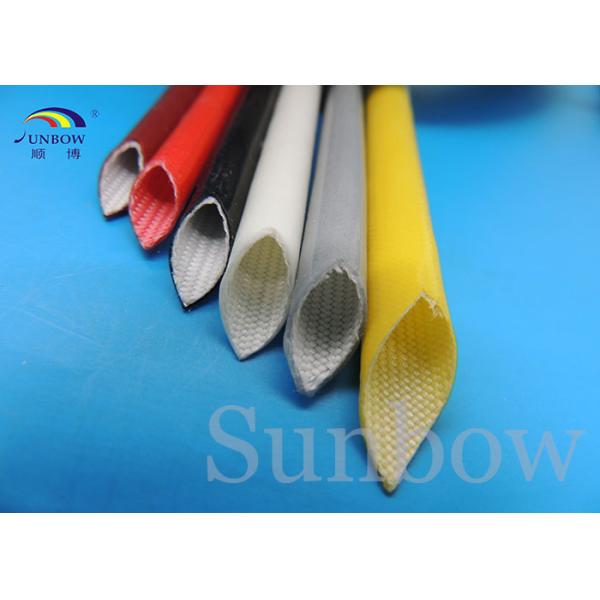

COLOR: Standard color is white, other color available upon request.

SILICONE RUBBER sleeve WITH GLASSFIBER Silicone fiber glass sleeving
