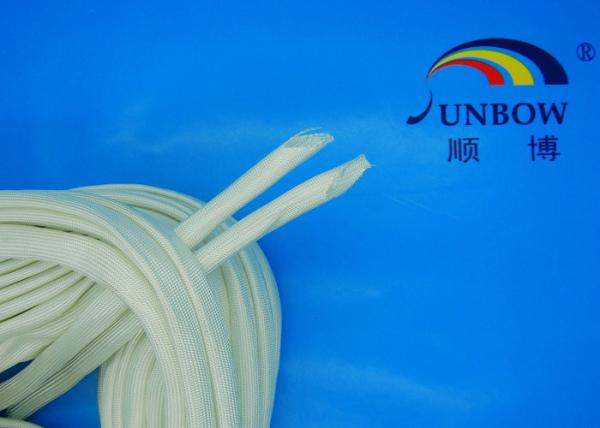

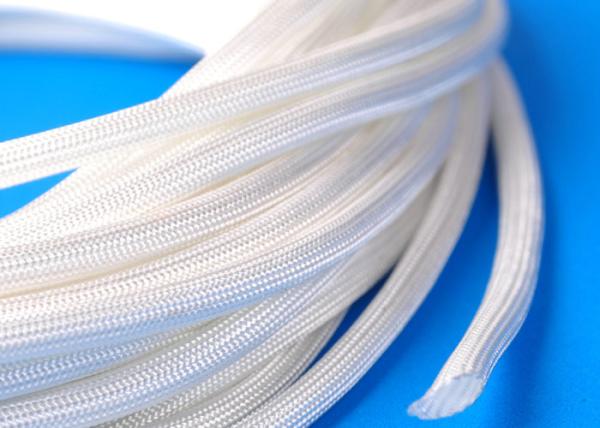

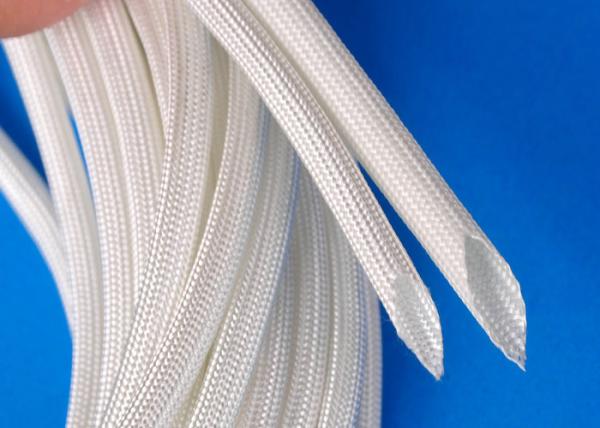

400ºC - 500ºC High Temperature Fiberglass Sleeving Flame Retardant Fiberglass Braided Sleeve
400ºC - 500ºC High Temperature Fiberglass Sleeving Flame Retardant Fiberglass Braided Sleeve
400ºC - 500ºC High Temperature Fiberglass Sleeving Flame Retardant Fiberglass Braided Sleeve
400ºC - 500ºC High Temperature Fiberglass Sleeving Flame Retardant Fiberglass Braided Sleeve
400ºC - 500ºC High Temperature Fiberglass Sleeving Flame Retardant Fiberglass Braided Sleeve
400ºC - 500ºC High Temperature Fiberglass Sleeving Flame Retardant Fiberglass Braided Sleeve
400ºC - 500ºC High Temperature Fiberglass Sleeving Flame Retardant Fiberglass Braided Sleeve
400ºC - 500ºC High Temperature Fiberglass Sleeving Flame Retardant Fiberglass Braided Sleeve
Specifications
Brand Name :
SUNBOW
Model Number :
SB-TGS-1S
Certification :
RoHS, REACH
Place of Origin :
Shenzhen, China
MOQ :
5000meters/size/color
Price :
USD0.025~USD1.624/meter
Payment Terms :
TT, LC, WU, Paypal
Supply Ability :
9,000,000meters/month
Delivery Time :
5-9 working days
Packaging Details :
Sunbow standard packing
Product name :
High temperature fiberglass sleeving without coating
Working temperature :
400ºC - 500ºC
Size :
0.5mm-30mm
Standard color :
White color, other color can be customized.
Fire resistance :
VW-1
Performance :
Good dielectric strength, flexibility and flame retarding properties
Application :
Un-insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.
Description

400ºC - 500ºC High Temperature Fiberglass Sleeving Flame Retardant Fiberglass Braided Sleeve

Model Number: SB-TGS-1S

Working temperature: 400ºC - 500ºC

Structure

The material content of the SB-TGS-1S are composed of woven Non-Alkali Fiberglass.

Usage

These sleevings with its good dielectric strength, flexibility and flame retarding properties make these sleevings high performance qualities. It can be widely used in un-insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.

400ºC - 500ºC High Temperature Fiberglass Sleeving Flame Retardant Fiberglass Braided Sleeve

Specification

Item

Performance

Note

Thermal endurance

No indication of crack

OK

6 HRS* 400±5ºC

245±5ºC 6HRS Aging

Fire resistance

VW-1

OK

UL 1441

Dimension

Inside Diameter

Wall thickness

(mm)

Standard package m/roll

Nominal (mm)

Tolerance (mm)

φ0.5

+0.5, -0.5

≥0.25mm

200

φ1.0

+0.5, -0.5

≥0.25mm

200

φ1.5

+0.5, -0.5

≥0.25mm

200

φ2.0

+0.5, -0.5

≥0.25mm

200

φ2.5

+0.5, -0.5

≥0.30mm

200

φ3.0

+0.5, -0.5

≥0.30mm

200

φ4.0

+0.5, -0.5

≥0.30mm

200

φ4.5

+0.5, -0.5

≥0.35mm

100

φ5.0

+0.5, -0.5

≥0.35mm

100

φ6.0

+0.5, -0.5

≥0.35mm

100

φ7.0

+0.5, -0.5

≥0.40mm

100

φ8.0

+0.5, -0.5

≥0.40mm

100

φ9.0

+0.5, -0.5

≥0.45mm

100

φ10.0

+1.0 -1.0

≥0.45mm

100

φ12.0

+1.0, -1.0

≥0.45mm

50

φ14.0

+1.0, -1.0

≥0.45mm

50

φ16.0

+1.0, -1.0

≥0.45mm

50

φ18.0

+1.0, -1.0

≥0.45mm

50

φ20.0

+1.0, -1.0

≥0.50mm

25

φ25.0

+1.0, -1.0

≥0.50mm

25

φ30.0

+1.0, -1.0

≥0.50mm

25

Package: Packing by rolls upon request.

Color: Standard color is white, other color available upon request.

Competitive Advantage:

1. 11 years manufacturing experience

2. Great production ability as high as 9,000,000 meters/month

3. Competitive price with quality products

4. Free sample for your approval
