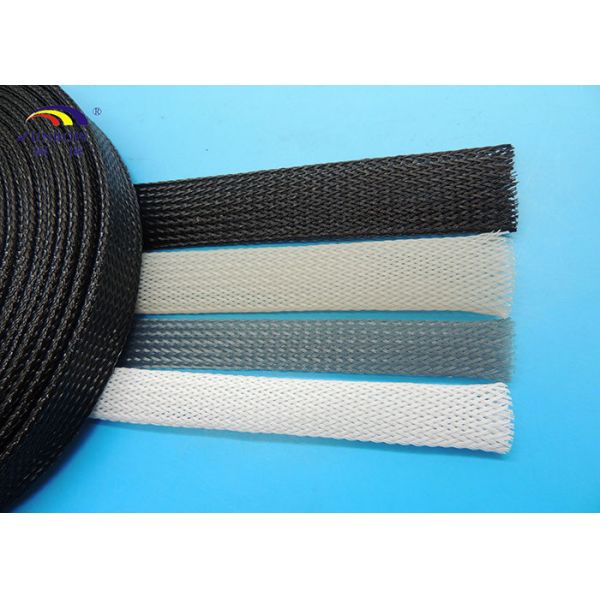

Polyester Braided Expandable Sleevings for Cable Management from 3mm to 125mm
Polyester Braided Expandable Sleevings for Cable Management from 3mm to 125mm
Polyester Braided Expandable Sleevings for Cable Management from 3mm to 125mm
Polyester Braided Expandable Sleevings for Cable Management from 3mm to 125mm
Polyester Braided Expandable Sleevings for Cable Management from 3mm to 125mm
Polyester Braided Expandable Sleevings for Cable Management from 3mm to 125mm
Polyester Braided Expandable Sleevings for Cable Management from 3mm to 125mm
Polyester Braided Expandable Sleevings for Cable Management from 3mm to 125mm
Specifications
Brand Name :
SUNBOW
Model Number :
SB-ES
Certification :
UL, ROHS, REACH
Place of Origin :
Shenzhen, China
MOQ :
5000meter/size/color
Price :
USD0.12-USD3/meter
Payment Terms :
TT, LC, WU, paypal
Supply Ability :
9,000,000meters/month
Delivery Time :
5-8 working days
Packaging Details :
Sunbow standard packing
Product name :
Expandable sleeving
Flat Size :
0.5mm-30mm
Color :
black, grey, White, red, blue, yellow, brown
Raw materials :
PET, Nylon(PA6, PA66, PPS)
Application :
Automobile, AC motor, heater,Wire hardness, bus bar, component leads, assemblies of electric components etc
Description

Polyester braided expandable sleevings for cable management from 3mm to 125mm high wear resistance

Model number:SB-ES

Working temperature: -50ºC ～ +150ºC

Melting point: 250ºC±5 Flame resistant grade: UL VW-1

Structure

Expandable sleeving is braided by environment-friendly polyester monofil. (PET, PA6, PA66,PPS), It possesses good flexibility, fire resistance, abrasive resistance and thermal insulation performance. The sleeving owns smooth surface, bright color, various patterns.

Polyester Braided Expandable Sleevings for Cable Management from 3mm to 125mm

Usage & Main Parameters

Expandable sleeving is widely used in bounding and protecting of electrical cables, automobile and aviation sectors.

The selection of this product refers to following four parameters.

Polyester Braided Expandable Sleevings for Cable Management from 3mm to 125mm

A- yarn number (one or three);

B- Diameter of single yarn (0.25mm or 0.20mm)

C- Strand number (48 spindles braiding machine or 72 spindles braiding machine) D- flat width(6mm or 18mm)

Dimension

Part No.

Model No.

Min width (mm)

Max width(mm)

Part No.

Model No.

Min width(mm)

Max width (mm)

24#

120024

3

6

56#

120056

8

16

125024

3

6

125056

8

16

320024

4

8

320056

10

20

325024

4

8

325056

10

20

32#

120032

4

8

64#

120064

9

18

125032

4

8

125064

9

18

320032

5

10

320064

12

24

325032

5

10

325064

12

24

36#

120036

5

10

72#

120072

10

12

125036

5

10

125072

10

12

320036

6

12

320072

15

30

325036

6

12

325072

15

30

40#

120040

6

12

96#

120096

12

24

125040

6

12

125096

12

24

320040

7

14

320096

20

40

325040

7

14

325096

25

50

48#

120048

7

14

120#

120120

15

30

125048

7

14

125120

15

30

320048

8

16

320120

30

70

325048

8

16

325120

35

100

Competitive Advantage:

  1. Great production ability as high as 9,000,000 meters/month
  2. Competitive price with quality products
  3. Standard Flat sizewith 0.5mm-76mm, up to 140mm can be customized
  4. Excellent flame resistance
  5. Various materials: PET, PA6, PA66,PPS
  6. Soft and flexible
  7. Excellent abrasive resistance and thermal insulation performance
  8. It owns smooth surface, bright color and various patterns
  9. Excellent wear resistance
  10. It can be widely used in harness
  11. Various sizes are available, from 3mm to 125mm
  12. Free samples are avaible
  13. Fast delivery
  14. Sufficient storage
