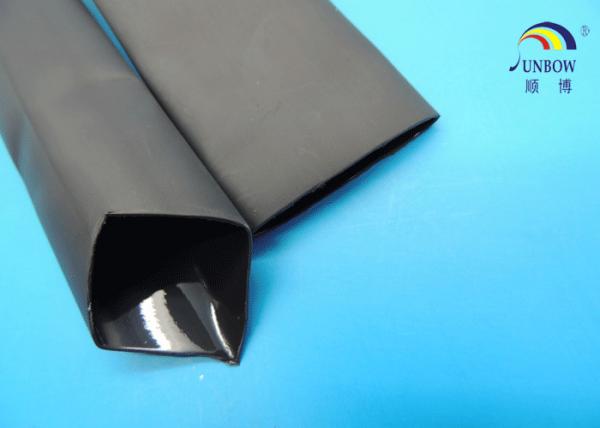

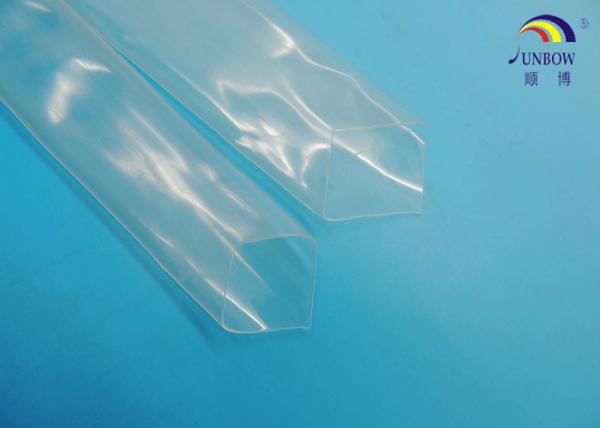

3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
Specifications
Brand Name :
SUNBOW
Model Number :
SB-SBRS-(3X,4X)
Certification :
UL no E360625,RoHS/REACH
Place of Origin :
CHINA
MOQ :
500M
Price :
USD0.09-16.4 per meter
Payment Terms :
Western Union, T/T,paypal
Supply Ability :
9,000,000 meters per month
Packaging Details :
packing by rolls,50-200m/roll
Characteristic :
3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection
Working temperature :
-45ºC ~ 125ºC
Shrink ratio :
3:1&4:1
Shrink temperature :
70ºC ~ 125ºC
Size :
inner diameter 2.4-125mm
Color :
black,blue,red,green......
Product name :
3:1/4:1 High Flow Glue Double Wall Glue Heat Shrink Tube Wire Protection
Material :
Polyolefin
Description

3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection

Advantage

1. Great production ability as high as 9,000,000 meters/month

2. Competitive price with quality products

3. Whole color UL certificated with inner diameter 2.4-125mm

Characteristics

Working temperature: -45ºC ~ 125ºC

Shrink temperature: 70ºC ~ 125ºC

Shrink ratio: 3:1 & 4:1

Structure

Adhesive-lined heat shrinkable tube adopts flame retardant, cross-linked polyolefin with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performances. Inner layer has the excellence of low melt point and waterproof etc. It has passed UL, RoHS, Reach certifications with 600V and 300V.

Usage

It is mainly used as waterproof, corrosion resistance, insulation, and mechanical protection. It is widely used in manufacturing of electrical and electronics, communications, automobiles, shipping, aircraft etc.

Standard

Production standards: UL224, CAN/CSA C22.2 NO198.1-99, SAE-AMS-DTL-23053/4

Dimension

1. SBRS-(3X)G

Inner Diameter

As Supplied(mm)

ID

After Recovery(mm)

Standard Package

(m/roll)

(mm)

(inch)

ID

Whole Wall Thickness

Adhesive Thickness

Φ2.4

3/32

≥2.4

≤0.80

0.85±0.15

0.40±0.10

200

Φ3.2

1/8

≥3.2

≤1.00

0.95±0.15

0.40±0.10

200

Φ4.8

3/16

≥4.8

≤1.60

1.10±0.15

0.40±0.10

100

Φ6.4

1/4

≥6.4

≤2.20

1.20±0.15

0.45±0.10

100

Φ7.9

5/16

≥7.9

≤2.70

1.35±0.15

0.50±0.10

100

Φ9.5

3/8

≥9.5

≤3.20

1.45±0.20

0.50±0.15

50

Φ12.7

1/2

≥12.7

≤4.20

1.70±0.20

0.50±0.15

1.22

Φ15.0

5/8

≥15.0

≤5.20

1.80±0.20

0.55±0.15

1.22

Φ19.1

3/4

≥19.1

≤6.30

2.00±0.20

0.55±0.15

1.22

Φ25.4

1

≥25.4

≤8.50

2.10±0.25

0.55±0.15

1.22

Φ30.0

1-1/4

≥30.0

≤10.20

2.20±0.25

0.60±0.15

1.22

Φ39.0

1-1/2

≥39.0

≤13.50

2.40±0.25

0.60±0.15

1.22

Φ50.0

2

≥50.0

≤17.00

2.70±0.25

0.80±0.15

1.22

Φ64.0

2-1/2

≥64.0

≤21.00

3.00±0.30

0.80±0.20

1.22

Φ76.0

3

≥76.0

≤25.00

3.00±0.30

1.00±0.20

1.22

Φ90.0

3-1/2

≥90.0

≤30.00

3.00±0.30

1.00±0.20

1.22

Φ100

4

≥100

≤34.00

3.00±0.30

1.00±0.20

1.22

Φ125

5

≥125

≤42.00

3.00±0.30

1.00±0.15

1.22

2.SBRS-(4X)G

Inner Diameter

As Supplied(mm)

ID

After recovery(mm)

Standard Package (m/roll)

(mm)

(inch)

Max ID

Whole Wall Thickness

Adhesive Thickness

Φ4.0

2/13

≥4.0

≤1.0

1.0±0.15

0.4±0.15

200

Φ6.0

1/4

≥6.0

≤1.5

1.1±0.15

0.4±0.15

100

Φ8.0

5/16

≥8.0

≤2.0

1.2±0.15

0.5±0.15

1.22

Φ12.0

1/2

≥12.0

≤3.0

1.4±0.15

0.5±0.15

1.22

Φ16.0

5/8

≥16.0

≤4.0

1.7±0.15

0.6±0.15

1.22

Φ20.0

15/19

≥20.0

≤5.0

2.0±0.25

0.6±0.15

1.22

Φ24.0

1

≥24.0

≤6.0

2.1±0.25

0.6±0.15

1.22

Φ32.0

1 1/4

≥32.0

≤8.0

2.4±0.25

0.7±0.15

1.22

Φ52.0

2

≥52.0

≤13.0

2.4±0.25

0.7±0.15

1.22

Color:Standard color is black,other color available upon request

Company information

Our main products include various fiberglass sleeving, silicone tube (especially the platinum cured silicone tube), PTFE tube, PVC tube, Heat shrinkable tube and so on.

All our products have obtained theUL and CSA certificates (Cert No: E333178 --UZIQ2, VW-1 & E333177--UZFT2/8,200C, 600V).Also all our products are in conformance with the European RoHS requirements. Furthermore, based on European new requirements, we re-apply and obtained German PFOA and PFOS certificates and European REACH reportshowing that our products do not contain 73 high-risk substances. In Sep.2009, we successfully passed ISO9001:2008international quality management system certification, nowISO14001system is also pushing.

3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection

3:1/4:1 High quality Double Wall Glue Heat Shrink Tube Wire harness Protection

FAQ
1. Why choose us?
We are the No.1 fiberglass sleeve coated silicone resin in China.
2. What material do you use?
Fiberglass yarn and silicone resin,PVC,silicone,PE,PET. RoHS,Reach,UL certificated
3. How's the package?
Packed by roll then rolls by carton. Also can cut and pack as requested.
4. Where is your factory?
In Shenzhen. The loading port here is Yantian or Shekou.
5. How many employees are there in your company?
More than 50.
6. How many people are there in your R&D department?
More than 5 desingers,.
7. How do you control the quality?
We have 8 QC team.
Each process has one QC. We check carefully before shipment.
8. What's your sample lead time?
can ship right now if in stock.5 - 7 working days if the items are out of stock.
9.Is the sample free charge?
Yes,it is free but the express fee should be paid by buyer.
10.What's your mass production lead time?
7 - 15 working days.
11. What's your payment terms?
L/C at sight, T/T in advance,Western Union,Paypal.
