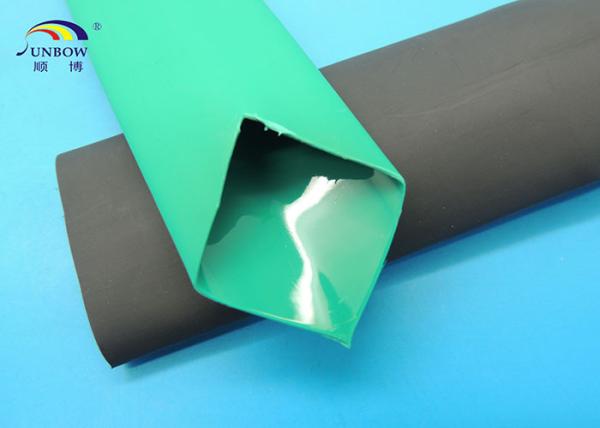

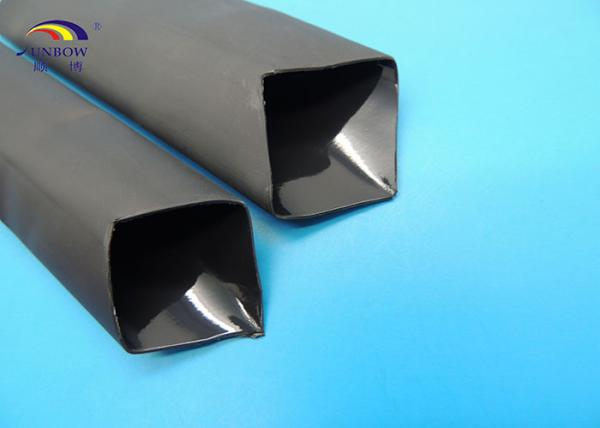

No Halogen Flame Retardant Adhesive Lined Heat Shrink Tubing / Heat Shrinking Tube 3 : 1 & 4 : 1
No Halogen Flame Retardant Adhesive Lined Heat Shrink Tubing / Heat Shrinking Tube 3 : 1 & 4 : 1
No Halogen Flame Retardant Adhesive Lined Heat Shrink Tubing / Heat Shrinking Tube 3 : 1 & 4 : 1
No Halogen Flame Retardant Adhesive Lined Heat Shrink Tubing / Heat Shrinking Tube 3 : 1 & 4 : 1
No Halogen Flame Retardant Adhesive Lined Heat Shrink Tubing / Heat Shrinking Tube 3 : 1 & 4 : 1
No Halogen Flame Retardant Adhesive Lined Heat Shrink Tubing / Heat Shrinking Tube 3 : 1 & 4 : 1
Specifications
Brand Name :
Sunbow
Model Number :
SB-SBRS-(3X,4X)
Certification :
UL no E360625,RoHS/REACH
Place of Origin :
CHINA
MOQ :
500M
Price :
USD0.09-16.4 per meter
Payment Terms :
Western Union, T/T,paypal
Supply Ability :
9,000,000 meters per month
Packaging Details :
packing by rolls,50-200m/roll
Characteristic :
Flexible, flame retardant, eco-friendly, quick shrink, bright color stand, stable performance
Working temperature :
-45ºC ~ 125ºC
Shrink ratio :
3:1&4:1
Shrink temperature :
70ºC ~ 125ºC
Size :
inner diameter 2.4-125mm
Color :
black,blue,red,green......
Description

No Halogen Flame Retardant Adhesive Lined Heat Shrink Tubing / Heat Shrinking Tube 3 : 1 & 4 : 1

Advantage

1. Great production ability as high as 9,000,000 meters/month

2. Competitive price with quality products

3. Whole color UL certificated with inner diameter 2.4-125mm

Characteristics

Working temperature: -45ºC ~ 125ºC

Shrink temperature: 70ºC ~ 125ºC

Shrink ratio: 3:1 & 4:1

Structure

Adhesive-lined heat shrinkable tube adopts flame retardant, cross-linked polyolefin with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performances. Inner layer has the excellence of low melt point and waterproof etc. It has passed UL, RoHS, Reach certifications with 600V and 300V.

Usage

It is mainly used as waterproof, corrosion resistance, insulation, and mechanical protection. It is widely used in manufacturing of electrical and electronics, communications, automobiles, shipping, aircraft etc.

Standard

Production standards: UL224, CAN/CSA C22.2 NO198.1-99, SAE-AMS-DTL-23053/4

Dimension

1. SBRS-(3X)G

Inner Diameter

As Supplied(mm)

ID

After Recovery(mm)

Standard Package

(m/roll)

(mm)

(inch)

ID

Whole Wall Thickness

Adhesive Thickness

Φ2.4

3/32

≥2.4

≤0.80

0.85±0.15

0.40±0.10

200

Φ3.2

1/8

≥3.2

≤1.00

0.95±0.15

0.40±0.10

200

Φ4.8

3/16

≥4.8

≤1.60

1.10±0.15

0.40±0.10

100

Φ6.4

1/4

≥6.4

≤2.20

1.20±0.15

0.45±0.10

100

Φ7.9

5/16

≥7.9

≤2.70

1.35±0.15

0.50±0.10

100

Φ9.5

3/8

≥9.5

≤3.20

1.45±0.20

0.50±0.15

50

Φ12.7

1/2

≥12.7

≤4.20

1.70±0.20

0.50±0.15

1.22

Φ15.0

5/8

≥15.0

≤5.20

1.80±0.20

0.55±0.15

1.22

Φ19.1

3/4

≥19.1

≤6.30

2.00±0.20

0.55±0.15

1.22

Φ25.4

1

≥25.4

≤8.50

2.10±0.25

0.55±0.15

1.22

Φ30.0

1-1/4

≥30.0

≤10.20

2.20±0.25

0.60±0.15

1.22

Φ39.0

1-1/2

≥39.0

≤13.50

2.40±0.25

0.60±0.15

1.22

Φ50.0

2

≥50.0

≤17.00

2.70±0.25

0.80±0.15

1.22

Φ64.0

2-1/2

≥64.0

≤21.00

3.00±0.30

0.80±0.20

1.22

Φ76.0

3

≥76.0

≤25.00

3.00±0.30

1.00±0.20

1.22

Φ90.0

3-1/2

≥90.0

≤30.00

3.00±0.30

1.00±0.20

1.22

Φ100

4

≥100

≤34.00

3.00±0.30

1.00±0.20

1.22

Φ125

5

≥125

≤42.00

3.00±0.30

1.00±0.15

1.22

2.SBRS-(4X)G

Inner Diameter

As Supplied(mm)

ID

After recovery(mm)

Standard Package (m/roll)

(mm)

(inch)

Max ID

Whole Wall Thickness

Adhesive Thickness

Φ4.0

2/13

≥4.0

≤1.0

1.0±0.15

0.4±0.15

200

Φ6.0

1/4

≥6.0

≤1.5

1.1±0.15

0.4±0.15

100

Φ8.0

5/16

≥8.0

≤2.0

1.2±0.15

0.5±0.15

1.22

Φ12.0

1/2

≥12.0

≤3.0

1.4±0.15

0.5±0.15

1.22

Φ16.0

5/8

≥16.0

≤4.0

1.7±0.15

0.6±0.15

1.22

Φ20.0

15/19

≥20.0

≤5.0

2.0±0.25

0.6±0.15

1.22

Φ24.0

1

≥24.0

≤6.0

2.1±0.25

0.6±0.15

1.22

Φ32.0

1 1/4

≥32.0

≤8.0

2.4±0.25

0.7±0.15

1.22

Φ52.0

2

≥52.0

≤13.0

2.4±0.25

0.7±0.15

1.22

Color:Standard color is black,other color available upon request
