Specifications
Brand Name :
Sunbow
Model Number :
SB-SGS-70
Certification :
UL , RoHS , Reach , CSA
Place of Origin :
Shenzhen, Guangdong, China
MOQ :
1000 Meter
Price :
USD0.07-13.4 per meter
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
600000 Meters / Month
Delivery Time :
7~10 Working Days
Packaging Details :
0.5mm ~ 4.0mm, 200 meters/roll; 4.5mm ~ 10.0mm, 100 meters/roll; 12.0mm ~ 18.0mm, 50 meters/roll; 20.0mm ~ 30.0mm, 25 meters/roll. Carton Size 35*35*60cm
Working Temperature :
200 degrees
Breakdown Voltage :
7000V
Material :
Fiberglass Yarn, silicone Rubber
Color :
White, Black, Green, Yellow, Brown, Rust Red etc
Size :
0.5mm ~ 30.0mm
Properties :
Flame Retardant, Flexible , Eco-friendly , Good Dielectric Strength
Flame Retardant Rating :
VW-1 UL 1441
Application :
Insulators, Electrical Appliance, Wires
Product Name :
Iron oxide red Silicone Rubber Coated Fiberglass Sleeve Silicone Fiberglass Sleeving
UL NO :
E333177
Description

Iron oxide red braided sleeving products , High Temperature Fiberglass Sleeving

Specifications
Silicone Rubber Coated Fiberglass Sleeve
1. out layer non-alkali
2. nice abrasion resistance
3. high breakdown voltage

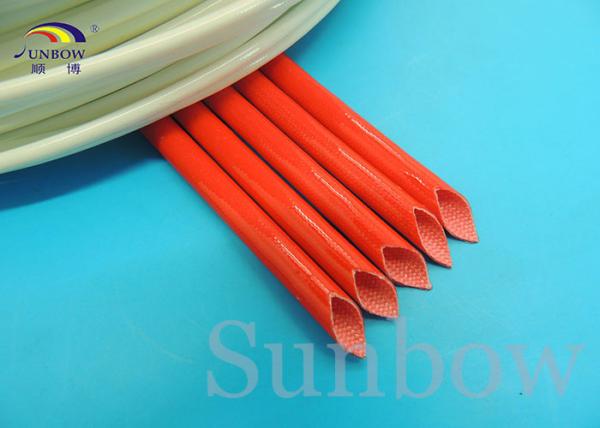

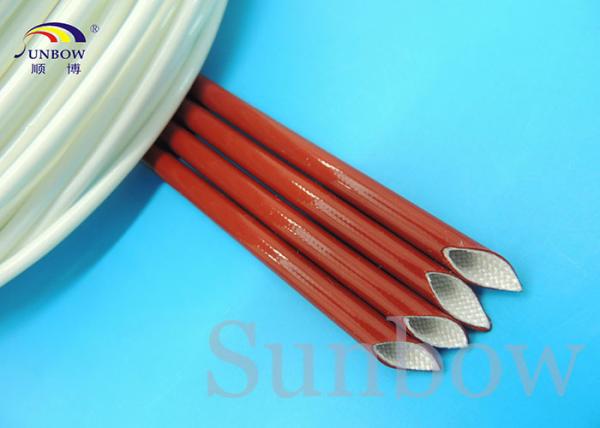

The glass fiber sleeving is braided by E-glass fiber. Heavily coated with iron oxide red silicone rubber. Silicone rubber coated fiberglass sleeve offer high-temperature heat and flame resistance, along with the ability to shed welding splatter and molten splash.

Sunbow Silicone Rubber Coated Fiberglass Sleeve Specification:
Temperature: withstands continuous exposure to 200C;
Inner diameter: 0.5mm ~30.0mm.

Sunbow Silicone Rubber Coated Fiberglass Sleeve Application:
Glass fiber sleeve coated with silicone rubber typical applications are as protection sleeves for industrial hoses, cables and wire, aviation and marine fuel, oil and hydraulic lines and wiring and anywhere hoses, cables, tubes and wiring needs protection.

Package:
200m/roll,100m/roll, 50m/roll, 25m/roll.
In carton box, Other packing style on request.

Specification

Item

Performance

Note

Dielectric Breakdown Voltage KV AC

Minimum Average

≥7.0

Before Aging

Minimum Single Point

≥5.0

Minimum Average

≥3.5

6 Hrs* 245±5ºC

245±5ºC 6Hrs Aging

Minimum Single Point

≥2.5

No Breakdown

/

1 KV in 2% Salt Water

Thermal Endurance

No Indication of Crack

OK

1440 Hrs* 235±5ºC

235±5ºC 1440Hrs Aging

Fire Resistance

VW-1

OK

UL 1441

Dimension

Inside Diameter

Wall Thickness (mm)

Standard Package (m/roll)

Nominal (mm)

Tolerance (mm)

φ0.5

+0.2, -0.1

≥0.37

200

φ1.0

+0.2, -0.1

≥0.37

200

φ1.5

+0.2, -0.1

≥0.37

200

φ2.0

+0.2, -0.1

≥0.37

200

φ2.5

+0.3, -0.1

≥0.42

200

φ3.0

+0.3, -0.1

≥0.42

200

φ4.0

+0.3, -0.1

≥0.42

200

φ4.5

+0.3, -0.1

≥0.51

100

φ5.0

+0.3, -0.1

≥0.51

100

φ6.0

+0.3, -0.1

≥0.51

100

φ7.0

+0.3, -0.1

≥0.56

100

φ8.0

+0.3, -0.1

≥0.56

100

φ9.0

+0.3, -0.1

≥0.66

100

φ10.0

+0.3, -0.1

≥0.66

100

φ12.0

+1.0, -1.0

≥0.66

50

φ14.0

+1.0, -1.0

≥0.66

50

φ16.0

+1.0, -1.0

≥0.66

50

φ18.0

+1.0, -1.0

≥0.66

50

φ20.0

+1.0, -1.0

≥0.76

25

φ25.0

+1.0, -1.0

≥0.76

25

φ30.0

+1.0, -1.0

≥0.76

25
