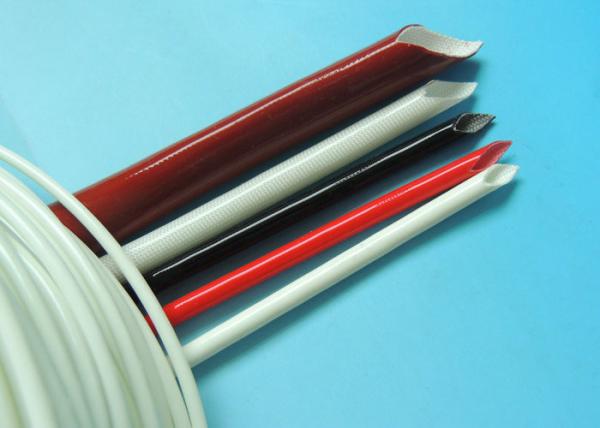

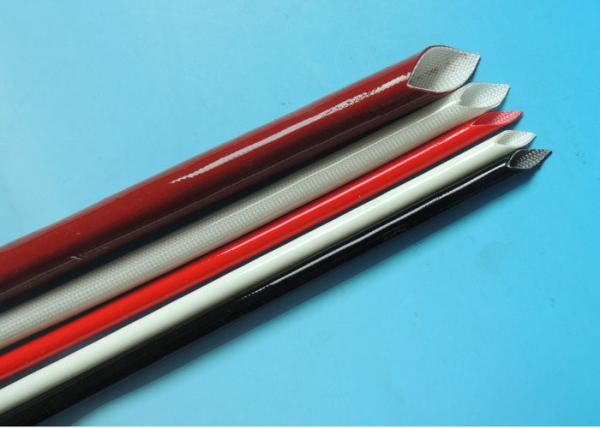

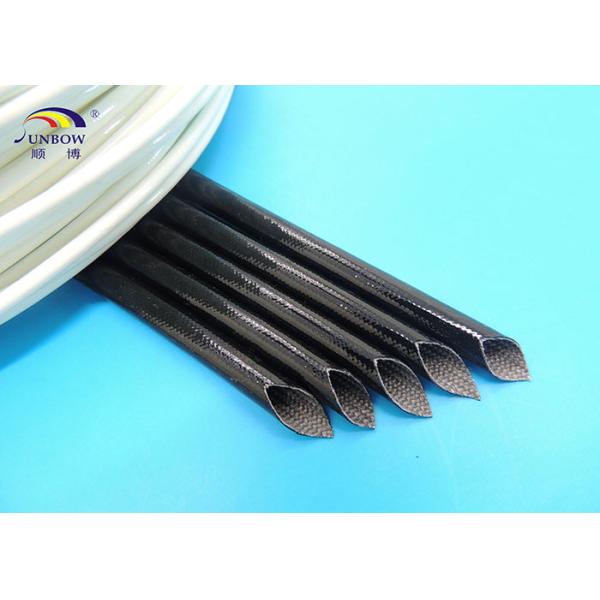

Silicon Resin Coated Silicone Fiberglass Sleeving 200℃ High Temperature 0.5mm - 30mm
Silicon Resin Coated Silicone Fiberglass Sleeving 200℃ High Temperature 0.5mm - 30mm
Silicon Resin Coated Silicone Fiberglass Sleeving 200℃ High Temperature 0.5mm - 30mm
Silicon Resin Coated Silicone Fiberglass Sleeving 200℃ High Temperature 0.5mm - 30mm
Silicon Resin Coated Silicone Fiberglass Sleeving 200℃ High Temperature 0.5mm - 30mm
Silicon Resin Coated Silicone Fiberglass Sleeving 200℃ High Temperature 0.5mm - 30mm
Silicon Resin Coated Silicone Fiberglass Sleeving 200℃ High Temperature 0.5mm - 30mm
Silicon Resin Coated Silicone Fiberglass Sleeving 200℃ High Temperature 0.5mm - 30mm
Specifications
Brand Name :
SUNBOW
Model Number :
SB-SGS-12
Certification :
UL, RoHS, REACH
Place of Origin :
Shenzhen, China
MOQ :
5000meters/size/color
Price :
USD0.029~USD1.805 /meter
Payment Terms :
TT, LC, WU, Paypal
Supply Ability :
9,000,000meters/month
Delivery Time :
5-9 working days
Packaging Details :
Sunbow standard packing
Product name :
1.2KV silicone fiberglass sleeving
Working temperature :
200℃
Size :
0.5mm-30mm
Standard color :
White color, other color can be customized.
UL certificate :
E333178
Fire resistance :
VW-1
Performance :
Good dielectric strength, flexibility and flame retarding properties.
Application :
AC motor, heater, wire hardness, bus bar, component leads, assemblies of electric components etc.
Material :
Fiberglass yarn, silicone resin
Description

Silicone Resin Coated Silicone Fiberglass Sleeving 200℃ High Temperature 0.5mm - 30mm

Model Number: SB-SGS-12

Advantage:

1. 11 years manufacturing experience

2. Great production ability as high as 9,000,000 meters/month

3. Competitive price with quality products

4. Free sample for your approval

Silicon Resin Coated Silicone Fiberglass Sleeving 200℃ High Temperature 0.5mm - 30mm

Model Number: SB-SGS-12

Working temperature: 200ºC

Structure

The material content of the SB-SGS-12 is Non-Alkali Fiberglass braided then coated with silicone resin and treated in high temperature.

Usage

SB-SGS-12 sleeving with its good dielectric strength, flexibility and flame retarding properties make it high performance qualities. It can be widely used in insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.

Specification

Item

Performance

Note

Dielectric breakdown

Voltage KV AC

Minimum average

≥1.2

Before aged

Thermal endurance

No Indication of crack

OK

6 HRS* 245±5ºC

245±5ºC 6HRS AGING

Fire resistance

VW-1

OK

UL 1441

Dimension

Inside diameter

Wall thickness (mm)

Standard package m/roll

Nominal(mm)

Tolerance (mm)

φ0.5

+0.2, -0.1

≥0.27

200

φ1.0

+0.2, -0.1

≥0.27

200

φ1.5

+0.2, -0.1

≥0.27

200

φ2.0

+0.2, -0.1

≥0.27

200

φ2.5

+0.3, -0.1

≥0.32

200

φ3.0

+0.3, -0.1

≥0.32

200

φ4.0

+0.3, -0.1

≥0.37

200

φ4.5

+0.3, -0.1

≥0.37

100

φ5.0

+0.3, -0.1

≥0.37

100

φ6.0

+0.3, -0.1

≥0.37

100

φ7.0

+0.3, -0.1

≥0.42

100

φ8.0

+0.3, -0.1

≥0.42

100

φ9.0

+0.3, -0.1

≥0.52

100

φ10.0

+0.3, -0.1

≥0.52

100

φ12.0

+1.0, -1.0

≥0.52

50

φ14.0

+1.0, -1.0

≥0.52

50

φ16.0

+1.0, -1.0

≥0.52

50

φ18.0

+1.0, -1.0

≥0.52

50

φ20.0

+1.0, -1.0

≥0.62

25

φ25.0

+1.0, -1.0

≥0.62

25

φ30.0

+1.0, -1.0

≥0.62

25

Package: Packing by rolls or cut upon request.

Color: Standard color is white, other color available upon request.

Silicon Resin Coated Silicone Fiberglass Sleeving 200℃ High Temperature 0.5mm - 30mm
