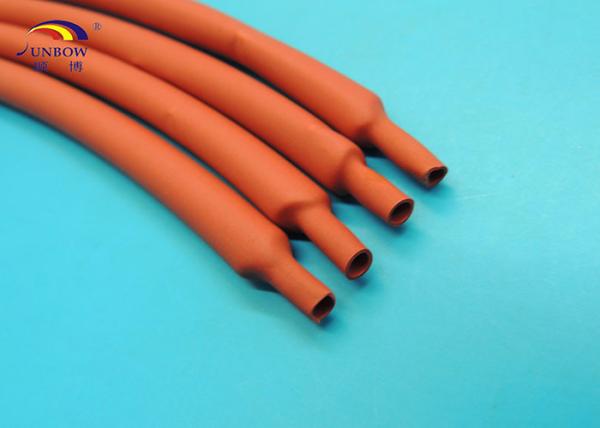

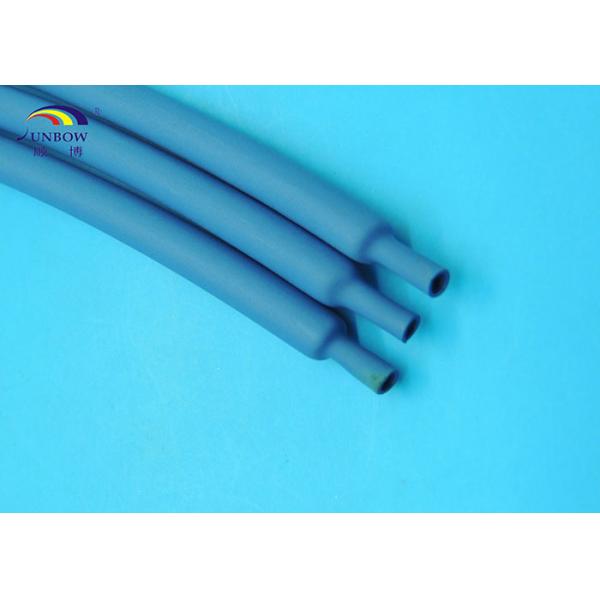

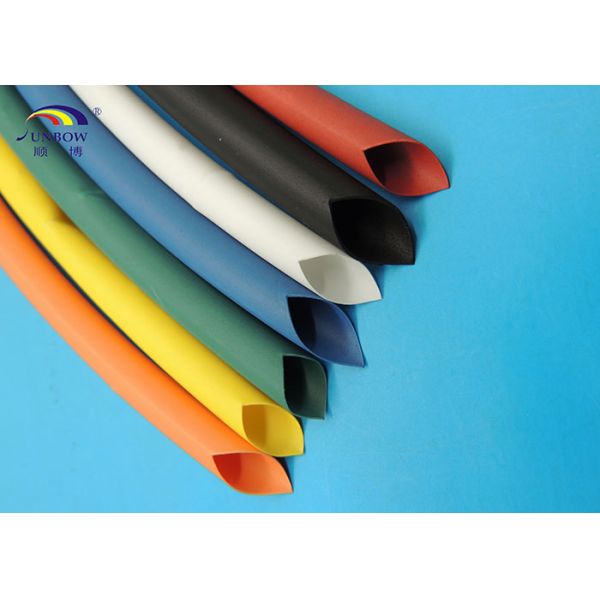

RoHS Flexo Colored Polyolefin Heat Shrink Tubing / Heat Shrink Tube Blue Green Orange
RoHS Flexo Colored Polyolefin Heat Shrink Tubing / Heat Shrink Tube Blue Green Orange
RoHS Flexo Colored Polyolefin Heat Shrink Tubing / Heat Shrink Tube Blue Green Orange
RoHS Flexo Colored Polyolefin Heat Shrink Tubing / Heat Shrink Tube Blue Green Orange
RoHS Flexo Colored Polyolefin Heat Shrink Tubing / Heat Shrink Tube Blue Green Orange
RoHS Flexo Colored Polyolefin Heat Shrink Tubing / Heat Shrink Tube Blue Green Orange
RoHS Flexo Colored Polyolefin Heat Shrink Tubing / Heat Shrink Tube Blue Green Orange
RoHS Flexo Colored Polyolefin Heat Shrink Tubing / Heat Shrink Tube Blue Green Orange
Specifications
Brand Name :
Sunbow
Model Number :
SB-RSFR-H
Certification :
UL, ROHS, REACH
Place of Origin :
SHENZHEN, CHINA
MOQ :
2000 meter
Price :
US$0.01 - 9.99 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
9000000 meter per year
Packaging Details :
SUNBOW Standard Package.
Product name :
RoHS Flexo Colored Heat Shrink Tubing Polyolefin Heat Shrink Tubing
Tensile strength :
10.4MPa
Tensile strength after heat aging :
UL 224 158C*168hrs
Elongation after heat aging :
UL 224 158C*168hrs
Heat shock :
UL 224 250C*4hrs
Dielectric strength :
≥15KV/mm
Volume resistivity :
≥1*1014Ω.cm
Corrosion action :
UL 224 158C*168hrs
Shrink temperature :
84ºC ~ 120ºC
Working temperature :
-45ºC ~ 125ºC
Description

RoHS Flexo Colored Heat Shrink Tubing Polyolefin Heat Shrink Tubing

Model Number: SB-RSFR-H

Working temperature: -45ºC ~ 125ºC

Structure

Halogen free flame-retardant heat shrinkable tube is made of eco-friendly cross-linking polyolefin material under irradiation. It has environment-friendly, flexible, flame retardant, quick shrink and stable performances. Also, it has electrical insulation, welding point anticorrosion and antirust and mechanical performances. It has passed UL, RoHS, Reach certifications for 300V and 600V.

Usage

It is mainly used in electronics, telecommunication, automobiles, shipping and other manufacturing industries.

Characteristics

  • Halogen free, non-smoke, non-toxic, flame-retardant, soft, quick shrink, stable performance
  • Shrink ratio: 2:1
  • Shrink temperature: 84ºC ~ 120ºC

Physical Technical Data

Property Test Method Typical Performance
Tensile strength ASTM D2671 10.4MPa
Elongation(%) ASTM D2671 200
Tensile strength after heat aging UL 224 158C*168hrs ≥7.3
Elongation after heat aging UL 224 158C*168hrs ≥100
Heat shock UL 224 250C*4hrs No dripping and no cracking

Electrical Technical Data

Property Test Method Typical Performance
Dielectric strength IEC 243 ≥15KV/mm
Volume resistivity IEC 93 ≥1*1014Ω.cm

Chemical Technical Data

Property Test Method Typical Performance
Corrosion action UL 224 158C*168hrs Pass
Copper compatibility UL 224 158C*168hrs Pass

Dimension

Size As Supplied After Recovery Standard Package
(Inch) (mm) Internal Diameter(mm) Internal Diameter Max(mm) Wall Thickness Nom(mm) Spool Length(M/Spool)
3/64 0.8 1.1±0.2 0.50 0.22 400
1/16 1.0 1.5±0.2 0.65 0.28 400
1.5 2.0±0.2 0.85 0.32 400
3/32 2.0 2.5±0.2 1.00 0.35 400
2.5 3.0±0.2 1.30 0.38 400
1/8 3.0 3.5±0.2 1.50 0.40 400
3.5 4.0±0.2 1.80 0.42 400
4.0 4.5±0.2 2.00 0.45 400
3/16 4.5 5.0±0.2 2.30 0.50 200
5.0 5.5±0.2 2.50 0.55 200
1/4 6.0 6.5±0.2 3.0 0.55 200
5/16 7.0 7.5±0.3 3.5 0.55 100
8.0 8.5±0.3 4.0 0.60 100
3/8 9.0 9.5±0.3 4.5 0.60 100
10.0 10.5±0.3 5.0 0.60 100
11.0 11.5±0.3 5.5 0.60 100
1/2 12.0 12.5±0.3 6.0 0.60 100
13.0 13.5±0.3 6.5 0.65 100
14.0 14.5±0.3 7.0 0.65 100
5/8 15.0 15.5±0.4 7.5 0.70 100
16.0 16.5±0.4 8.0 0.70 100
17.0 17.5±0.4 8.5 0.70 100
3/4 18.0 19.0±0.5 9.0 0.80 100
20.0 21.0±0.5 10.0 0.80 100
22.0 23.0±0.5 11.0 0.80 100
1 25.0 26.0±0.5 12.5 0.90 50
28.0 29.0±0.5 14.0 0.90 50
1-1/4 30.0 31.5±1.0 15.0 0.95 50
35.0 36.5±1.0 17.5 1.00 50
1-1/2 40.0 41.5±1.0 20.0 1.00 50
45.0 46.5±1.0 22.5 1.00 25
2 50.0 ≥50 25.0 1.00 25
60.0 ≥60 31.0 1.30 25
70.0 ≥70 36.0 1.30 25
3 80.0 ≥80 41.0 1.46 25
90.0 ≥90 46.0 1.46 25
4 100.0 ≥100 51.0 1.46 25
5 120.0 ≥120 61.0 1.56 25
6 150.0 ≥150 76.0 1.56 25
7 180.0 ≥180 91.0 1.56 25

Color: Standard color is black (other color available upon request).

RoHS Flexo Colored Heat Shrink Tubing Polyolefin Heat Shrink Tubing

RoHS Flexo Colored Polyolefin Heat Shrink Tubing / Heat Shrink Tube Blue Green OrangeRoHS Flexo Colored Polyolefin Heat Shrink Tubing / Heat Shrink Tube Blue Green Orange
