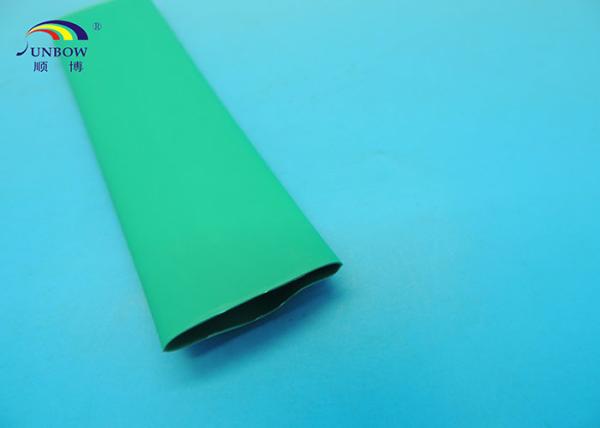

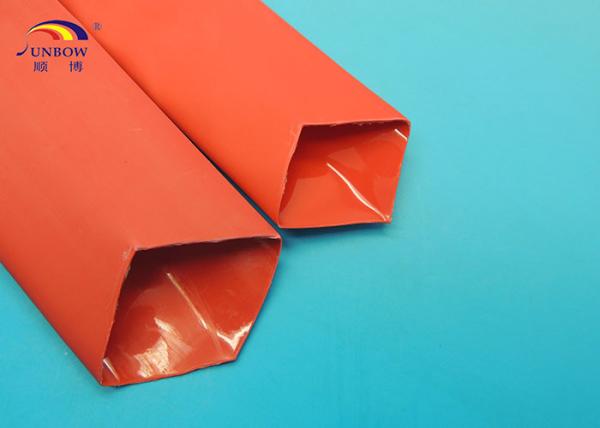

Waterproof adhesive lined heat shrink tubing , Polyolefin electrical shrink tubing
Waterproof adhesive lined heat shrink tubing , Polyolefin electrical shrink tubing
Waterproof adhesive lined heat shrink tubing , Polyolefin electrical shrink tubing
Waterproof adhesive lined heat shrink tubing , Polyolefin electrical shrink tubing
Waterproof adhesive lined heat shrink tubing , Polyolefin electrical shrink tubing
Waterproof adhesive lined heat shrink tubing , Polyolefin electrical shrink tubing
Waterproof adhesive lined heat shrink tubing , Polyolefin electrical shrink tubing
Waterproof adhesive lined heat shrink tubing , Polyolefin electrical shrink tubing
Specifications
Brand Name :
Sunbow
Model Number :
SB-SBRS-(3X,4X)
Certification :
UL, RoHS, Reach
Place of Origin :
Shenzhen, China
MOQ :
1000 meter
Price :
US$0.02 - 9.99 meter per year
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
9000000 meter per year
Packaging Details :
SUNBOW Normal Package.
Product name :
Waterproof Adhesive-Lined Polyolefin Heat Shrink Tubing Heat Shrink Tube
Tensile Strength(MPa) :
≥10.4MPa
Tensile Strength after Aging(MPa) :
≥7.3MPa
Water Absorption :
≤0.2%
Softening Point :
95℃
Volume Resistivity(Ω.cm) :
≥1*1014Ω.cm
Working temperature :
-45ºC ~ 125ºC
Shrink temperature :
70ºC ~ 125ºC
Description

Waterproof adhesive lined heat shrink tubing , Polyolefin electrical shrink tubing

Model Number: SB-SBRS-(3X, 4X)

Working temperature: -45ºC ~ 125ºC

Shrink temperature: 70ºC ~ 125ºC

Shrink ratio: 3:1 & 4:1

Structure

Adhesive-lined heat shrinkable tube adopts flame retardant, cross-linked polyolefin with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performances. Inner layer has the excellence of low melt point and waterproof etc. It has passed UL, RoHS, Reach certifications with 600V and 300V.

Usage

3:1 adhesive-lined heat shrinkable tube with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire spices, breakouts, and connector-to-cable transitions.

Standards

Production standards: UL224, CAN/CSA C22.2 NO198.1-99, SAE-AMS-DTL-23053/4

Dimension

  • SBRS-(3X)G
Inner Diameter

As Supplied(mm)

ID

 After Recovery(mm)

Standard Package

(m/roll)
(mm) (inch) ID Whole Wall Thickness Adhesive Thickness
Φ2.4 3/32 ≥2.4 ≤0.80 0.85±0.15 0.40±0.10 200
Φ3.2 1/8 ≥3.2 ≤1.00 0.95±0.15 0.40±0.10 200
Φ4.8 3/16 ≥4.8 ≤1.60 1.10±0.15 0.40±0.10 100
Φ6.4 1/4 ≥6.4 ≤2.20 1.20±0.15 0.45±0.10 100
Φ7.9 5/16 ≥7.9 ≤2.70 1.35±0.15 0.50±0.10 100
Φ9.5 3/8 ≥9.5 ≤3.20 1.45±0.20 0.50±0.15 50
Φ12.7 1/2 ≥12.7 ≤4.20 1.70±0.20 0.50±0.15 1.22
Φ15.0 5/8 ≥15.0 ≤5.20 1.80±0.20 0.55±0.15 1.22
Φ19.1 3/4 ≥19.1 ≤6.30 2.00±0.20 0.55±0.15 1.22
Φ25.4 1 ≥25.4 ≤8.50 2.10±0.25 0.55±0.15 1.22
Φ30.0 1-1/4 ≥30.0 ≤10.20 2.20±0.25 0.60±0.15 1.22
Φ39.0 1-1/2 ≥39.0 ≤13.50 2.40±0.25 0.60±0.15 1.22
Φ50.0 2 ≥50.0 ≤17.00 2.70±0.25 0.80±0.15 1.22
Φ64.0 2-1/2 ≥64.0 ≤21.00 3.00±0.30 0.80±0.20 1.22
Φ76.0 3 ≥76.0 ≤25.00 3.00±0.30 1.00±0.20 1.22
Φ90.0 3-1/2 ≥90.0 ≤30.00 3.00±0.30 1.00±0.20 1.22
Φ100 4 ≥100 ≤34.00 3.00±0.30 1.00±0.20 1.22
Φ125 5 ≥125 ≤42.00 3.00±0.30 1.00±0.15 1.22
  • SBRS-(4X)G
Inner Diameter

As Supplied(mm)

ID

 After recovery(mm) Standard Package (m/roll)
(mm) (inch) Max ID Whole Wall Thickness Adhesive Thickness
Φ4.0 2/13 ≥4.0 ≤1.0 1.0±0.15 0.4±0.15 200
Φ6.0 1/4 ≥6.0 ≤1.5 1.1±0.15 0.4±0.15 100
Φ8.0 5/16 ≥8.0 ≤2.0 1.2±0.15 0.5±0.15 1.22
Φ12.0 1/2 ≥12.0 ≤3.0 1.4±0.15 0.5±0.15 1.22
Φ16.0 5/8 ≥16.0 ≤4.0 1.7±0.15 0.6±0.15 1.22
Φ20.0 15/19 ≥20.0 ≤5.0 2.0±0.25 0.6±0.15 1.22
Φ24.0 1 ≥24.0 ≤6.0 2.1±0.25 0.6±0.15 1.22
Φ32.0 1 1/4 ≥32.0 ≤8.0 2.4±0.25 0.7±0.15 1.22
Φ52.0 2 ≥52.0 ≤13.0 2.4±0.25 0.7±0.15 1.22

Technical Data

Property Test Method Standard
Tensile Strength(MPa) ASTM D2671 ≥10.4
Elongation ASTM D2671 ≥300
Tensile Strength after Aging(MPa) UL224 158℃*168hrs ≥7.3
Elongation after Aging(MPa) UL224 158℃*168hrs ≥200
Dielectric Strength(KV/MM) IEC243 ≥15
Volume Resistivity(Ω.cm) ASTM D876 ≥1*1014

Hot Melt Adhesive Property

Property Test Method Standard
Water Absorption ASTM D570 ≤0.2%
Softening Point ASTM E8 95℃
Strength of Pearing(PE) ASTM D 1000 120N/25mm
Strength of Pearing(AL) ASTM D 1000 80N/25mm

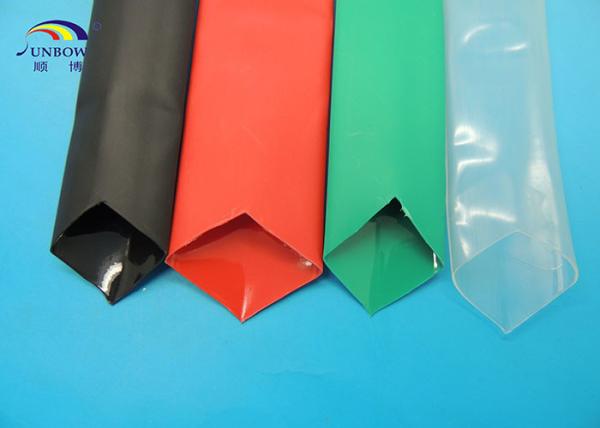

Color: Standard color is black (other color available upon request).

Waterproof Adhesive-Lined Polyolefin Heat Shrink Tubing Heat Shrink Tube

Waterproof adhesive lined heat shrink tubing , Polyolefin electrical shrink tubingWaterproof adhesive lined heat shrink tubing , Polyolefin electrical shrink tubing
