Specifications
Brand Name :
Sunbow
Model Number :
SB-RSFR-125H
Certification :
UL, RoHS, Reach
Place of Origin :
Shenzhen, China
MOQ :
2000 meter
Price :
US$0.01 - 9.99 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
9000000 per year
Packaging Details :
SUNBOW Standard Package
Product name :
UL Recognized 1/8'' Flexible Eco-friendly Polyolefin Heat Shrink Tubing
Working temperature :
-45ºC ~ 125ºC
Shrink temperature :
84ºC ~ 120ºC
Shrink ratio :
2:1
Property :
Halogen free, non-smoke, non-toxic, flame-retardant, soft, quick shrink, stable performance
Tensile Strength :
≥10.4(Before Aging)
Breakage Elongation (%) :
≥200(Before Aging)
Breakdown Strength :
≥15KV/mm
Volume Resistivity :
≥1×1014Ω. cm
Flammability :
VW-1
Description

UL Recognized Polyolefin Heat Shrink Tubing , 1/8'' heat shrink electrical tubing Flexible

Model Number: SB-RSFR-H

Working temperature: -45ºC ~ 125ºC

Structure

Halogen free flame-retardant heat shrinkable tube is made of eco-friendly cross-linking polyolefin material under irradiation. It has environment-friendly, flexible, flame retardant, quick shrink and stable performances. Also, it has electrical insulation, welding point anticorrosion and antirust and mechanical performances. It has passed UL, RoHS, Reach certifications for 300V and 600V.

Usage

It is mainly used in electronics, telecommunication, automobiles, shipping and other manufacturing industries.

Characteristics

  • Halogen free, non-smoke, non-toxic, flame-retardant, soft, quick shrink, stable performance
  • Shrink ratio: 2:1
  • Shrink temperature: 84ºC ~ 120ºC

Specification

Property Unit Test Method Standard
Tensile Strength MPA ≥10.4(Before Aging) GB/T 1040
≥7.3(After Aging) 158ºC*168hrs
Breakage Elongation (%) % ≥200(Before Aging) GB/T 1040
≥100(After Aging) 158ºC*168hrs
Heat Shock - No Sticking & No Cracking 250ºC*4hrs
Cold Blend - No Cracking -30ºC*4hrs
Breakdown Strength KV/mm ≥15 GB/T 1408
Dielectric Withstand 600V - Pass No Breakdown for 2500V, 60s
300V - Pass No Breakdown for 1500V,60s
Volume Resistivity Ω. cm ≥1×1014 GB/T 1410
Corrosion Performance - pass 158ºC*168hrs
Copper Stability - pass 158ºC*168hrs
Flammability - pass VW-1

Dimension

Inner

Diameter

 As Supplied(mm) After Recovery(mm) Standard Package Application Range(mm)
Inner Diameter Wall Thickness Inner Diameter Wall Thickness (m/spool)
Φ0.6 0.9±0.2 0.20±0.05 ≤0.40 0.33±0.10 400 0.4~0.7
Φ0.8 1.1±0.2 0.20±0.05 ≤0.50 0.33±0.10 400 0.6~0.8
Φ1.0 1.5±0.2 0.20±0.05 ≤0.65 0.36±0.10 400 0.75~0.9
Φ1.5 2.0±0.2 0.20±0.05 ≤0.85 0.36±0.10 400 0.95~1.4
Φ2.0 2.5±0.2 0.23±0.05 ≤1.00 0.45±0.10 400 1.1~1.8
Φ2.5 3.0±0.2 0.23±0.05 ≤1.30 0.45±0.10 400 1.35~2.3
Φ3.0 3.5±0.2 0.23±0.05 ≤1.50 0.45±0.10 400 1.6~2.7
Φ3.5 4.0±0.2 0.23±0.05 ≤1.80 0.45±0.10 400 1.85~3.2
Φ4.0 4.5±0.2 0.25±0.05 ≤2.00 0.45±0.10 400 2.1~3.6
Φ4.5 5.0±0.2 0.28±0.05 ≤2.30 0.56±0.10 200 2.35~4.0
Φ5.0 5.5±0.2 0.28±0.05 ≤2.50 0.56±0.10 200 2.6~4.5
Φ6.0 6.5±0.2 0.28±0.05 ≤3.00 0.56±0.10 200 3.1~5.4
Φ7.0 7.5±0.3 0.28±0.05 ≤3.50 0.56±0.10 100 3.7~6.3
Φ8.0 8.5±0.3 0.30±0.08 ≤4.00 0.56±0.10 100 4.2~7.2
Φ9.0 9.5±0.3 0.30±0.08 ≤4.50 0.56±0.10 100 4.7~8.0
Φ10 10.5±0.3 0.30±0.08 ≤5.00 0.56±0.10 100 5.2~9.0
Φ11 11.5±0.3 0.30±0.08 ≤5.50 0.56±0.10 100 5.7~10
Φ12 12.5±0.3 0.30±0.08 ≤6.00 0.56±0.10 100 6.2~11
Φ13 13.5±0.3 0.30±0.08 ≤6.50 0.56±0.10 100 6.7~12
Φ14 14.5±0.3 0.35±0.10 ≤7.00 0.70±0.10 100 7.3~13
Φ15 15.5±0.4 0.35±0.10 ≤7.50 0.70±0.10 100 7.8~14
Φ16 16.5±0.4 0.35±0.10 ≤8.00 0.70±0.10 100 8.3~15
Φ17 17.5±0.4 0.35±0.10 ≤8.50 0.70±0.10 100 8.8~16
Φ18 19.0±0.5 0.35±0.10 ≤9.00 0.70±0.10 100 9.3~17
Φ20 22.0±0.5 0.35±0.10 ≤10.00 0.83±0.15 100 10.4~19
Φ22 24.0±0.5 0.40±0.12 ≤11.00 0.83±0.15 100 11.4~21
Φ25 26.0±0.5 0.40±0.12 ≤12.50 0.90±0.15 50 12.8~24
Φ28 29.0±0.5 0.45±0.12 ≤14.00 0.90±0.15 50 14.4~29
Φ30 31.5±1.0 0.45±0.12 ≤15.00 1.00±0.15 50 16~29
Φ35 36.5±1.0 0.45±0.12 ≤17.50 1.00±0.15 50 18~34
Φ40 41.5±1.0 0.45±0.12 ≤20.00 1.00±0.15 50 21~39
Φ45 46.5±1.0 0.50±0.15 ≤22.5 1.00±0.15 25 23.5~44
Φ50 ≥50 0.50±0.15 ≤25.0 1.10±0.15 25 26~49
Φ60 ≥60 0.60±0.15 ≤30.0 1.20±0.15 25 35~55
Φ70 ≥70 0.65±0.15 ≤35.0 1.30±0.20 25 40~65
Φ80 ≥80 0.65±0.15 ≤40.0 1.30±0.20 25 45~75
Φ90 ≥90 0.65±0.15 ≤45.0 1.30±0.20 25 50~85
Φ100 ≥100 0.65±0.20 ≤50.0 1.30±0.20 25 55~95
Φ120 ≥120 0.65±0.20 ≤60.0 1.30±0.20 25 65~115
Φ150 ≥150 0.65±0.20 ≤70.0 1.30±0.20 25 80~145
Φ180 ≥180 0.65±0.30 ≤90.0 1.30±0.30 25 95~175
Φ210 ≥210 0.65±0.30 ≤105.0 1.30±0.30 25 110~205
Φ230 ≥230 0.65±0.30 ≤115.0 1.30±0.30 25 120~225
Φ250 ≥250 0.65±0.30 ≤125.0 1.30±0.30 25 130~240

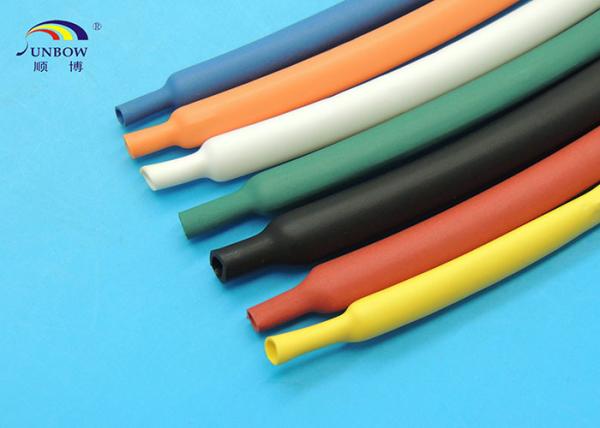

Color: Standard color is black (other color available upon request).
