Semi Rigid heat shrink tubing / Polyolefin Tubing Meltable Liner 6.0mm
Semi Rigid heat shrink tubing / Polyolefin Tubing Meltable Liner 6.0mm
Semi Rigid heat shrink tubing / Polyolefin Tubing Meltable Liner 6.0mm
Semi Rigid heat shrink tubing / Polyolefin Tubing Meltable Liner 6.0mm
Semi Rigid heat shrink tubing / Polyolefin Tubing Meltable Liner 6.0mm
Semi Rigid heat shrink tubing / Polyolefin Tubing Meltable Liner 6.0mm
Semi Rigid heat shrink tubing / Polyolefin Tubing Meltable Liner 6.0mm
Semi Rigid heat shrink tubing / Polyolefin Tubing Meltable Liner 6.0mm
Specifications
Brand Name :
Sunbow
Model Number :
SB-SBRS-(4X)G
Certification :
UL, RoHS, Reach, ISO9001, TS16949
Place of Origin :
Shenzhen 518106, Guangdong, China
MOQ :
1000 meter
Price :
US$0.409/M - US$0.461/M
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
9000000 meter/year
Packaging Details :
Sunbow Normal Standard Package.
Product name :
Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1
Working temperature :
-45ºC ~ 125ºC
Shrink temperature :
70ºC ~ 125ºC
Shrink ratio :
4:1
Size :
6.0mm
Color :
Black
Volume resistivity :
≥1*1014 Ω.cm
Dielectric strength :
≥15KV/mm
Description

Semi Rigid heat shrink tubing / Polyolefin Tubing Meltable Liner 6.0mm

Model Number: SB-SBRS-(4X) GR

Working temperature: -45ºC ~ 125ºC
Shrink temperature: 70ºC ~ 125ºC

Shrink ratio: 4:1

Structure: Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1

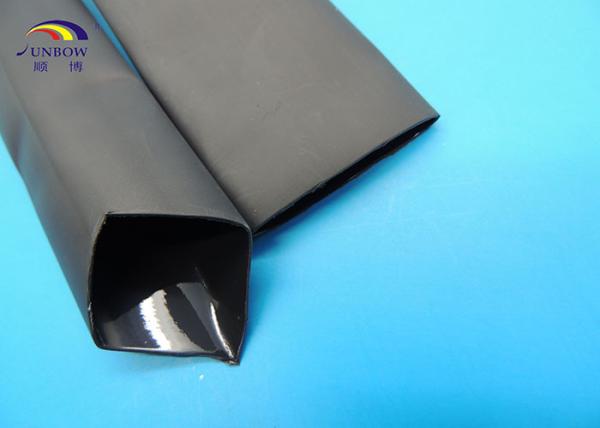

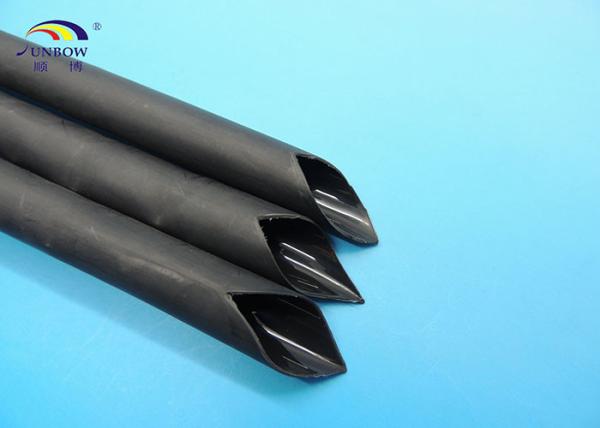

Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1 adopts flame retardant, cross-linked polyolefin material with an inner coating of hot-melt adhesive and outer layer that shrinks to provide electrical and mechanical protection. The outer layer has excellent insulation, wear and corrosion resistant performance. The inner layer has the excellence of low melt point and waterproof etc. It has passed UL, RoHS, Reach certifications with 600V/300V.

Usage: Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1

Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1 allows a few sizes to cover a wide range of splices and component diameters, mechanically tough tubing provides strain relief and abrasion protection of wire splices, terminals, and other components, adhesive-lined against fluids, moisture and other contaminants.

Standards: Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1

Production standards: UL224, CAN/CSA C22.2 NO198.1-99

Features: Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1

  • 4:1 very high shrink ratio
  • Longitudinal shrink 8% max
  • Out jacket flame retardant
  • Continuous operating temperature: -45C - 125C
  • Shrink temperature: 70C - 125C

Technical data: Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1

Property Test Method Standard
Tensile strength(MPa) ASTM D2671 ≥12
Elongation ASTM D2671 ≥300
Tensile strength after aging(MPa) UL224 158C*168hrs ≥7.3
Elongation after aging(%) UL224 158C*168hrs ≥200
Dielectric strength(KV/mm) IEC243 ≥15
Volume resistivity(Ω.cm) ASTM D876 ≥1*1014

Hot melt adhesive property: Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1

Property Test Method Standard
Water absorption ASTM D570 ≤0.2%
Softening point ASTM E8 95C
Strength of pearing(PE) ASTM D1000 120N/25mm
Strength of pearing(AL) ASTM D1000 80N/25mm

Dimension: Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1

Inner Diameter As Supplied(mm) After Recovery(mm) Standard Length
(inch) (mm) ID Max ID Whole Wall Thickness Adhesive Thickness (m/roll) (m/pc)
1/4 φ6.0 6.0 1.27 1.26±0.30 0.50±0.30 100 —
5/16 φ8.0 8.0 1.65 1.70±0.30 0.75±0.30 100 —
1/2 φ12.0 12.0 2.41 2.10±0.30 0.95±0.30 — 1.22
3/4 φ18.0 18.0 4.45 2.60±0.30 1.30±0.30 — 1.22

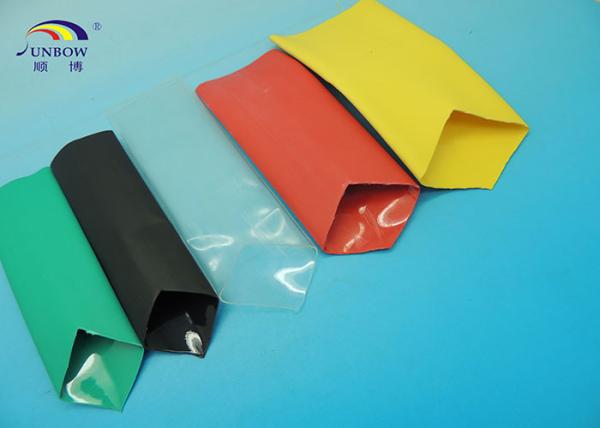

Color: Standard color is black (other color available upon request).

Semi-Rigid Heat Shrinkable Polyolefin Tubing with Meltable Liner 6.0mm Black VW-1

Semi Rigid heat shrink tubing / Polyolefin Tubing Meltable Liner 6.0mmSemi Rigid heat shrink tubing / Polyolefin Tubing Meltable Liner 6.0mmSemi Rigid heat shrink tubing / Polyolefin Tubing Meltable Liner 6.0mm
