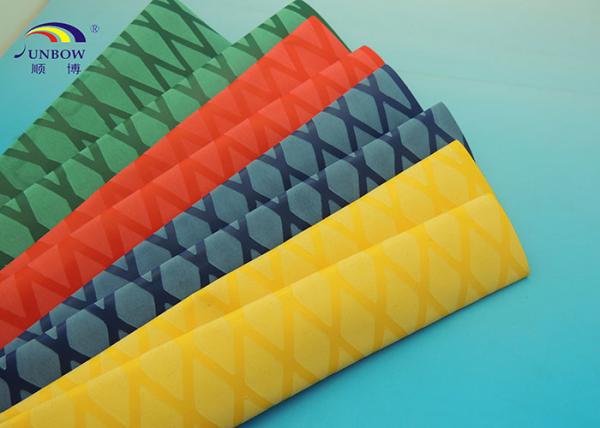

RoHS Compliant X Printed Diamond Polyolefin Heat Shrink Tubing , heat shrink insulation sleeving
RoHS Compliant X Printed Diamond Polyolefin Heat Shrink Tubing , heat shrink insulation sleeving
RoHS Compliant X Printed Diamond Polyolefin Heat Shrink Tubing , heat shrink insulation sleeving
RoHS Compliant X Printed Diamond Polyolefin Heat Shrink Tubing , heat shrink insulation sleeving
RoHS Compliant X Printed Diamond Polyolefin Heat Shrink Tubing , heat shrink insulation sleeving
RoHS Compliant X Printed Diamond Polyolefin Heat Shrink Tubing , heat shrink insulation sleeving
RoHS Compliant X Printed Diamond Polyolefin Heat Shrink Tubing , heat shrink insulation sleeving
RoHS Compliant X Printed Diamond Polyolefin Heat Shrink Tubing , heat shrink insulation sleeving
Specifications
Brand Name :
Sunbow
Model Number :
SB-WOLVO
Certification :
UL, RoHS, Reach
Place of Origin :
Shenzhen, China
MOQ :
100 meter
Price :
US$1.04 - 9.99 per meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
9000000 meter per year
Packaging Details :
SUNBOW standard package
Product name :
RoHS Compliant X Printed Diamond Heat Shrinkable Tube Polyolefin Heat Shrink Tubing
Operating temperature :
-55ºC ~ 105ºC
Shrinking temperature :
70ºC ~ 110ºC
Shrink ratio :
2:1
Property :
Soft, non-slip, perfect appearance, fast shrinkage and stable performance.
Longitudinal Elongation(%) :
≤8
Tensile Strength(Mpa) :
10.4
Elongation(%) :
200
Size :
10.0mm - 50.0mm
Color :
Black, red, yellow, green, blue
Description

RoHS Compliant X Printed Diamond Polyolefin Heat Shrink Tubing , heat shrink insulation sleeving

Model Number: SB-WOLVO

Operating temperature: -55ºC ~ 105ºC

Structure

Skid proof heat shrink tubing is made of high-polymer with scientific formula, via advanced technology processing. It has the advantages of environment friendly, good flexiblility, skidproof, perfect appearance, fast shrinkage, and stable performance.

Usage

Functional usage: Widely used in fishing and sports.

Application range: fishing tackles, sports fittings, health equipments and commodities, etc.

Characteristics

1. Shrink ratio: 2:1
2. Shrinking temperature: Start at 70ºC, and full recovery at 110ºC
3. Operating temperature:-55ºC ~ 105ºC
4. Soft, non-slip, perfect appearance, fast shrinkage and stable performance.

Technical Data

Property Test Method Standard Required
Longitudinal Elongation(%) ASTM D412 ≤8
Tensile Strength(Mpa) ASTM D412 10.4
Elongation(%) ISO 1210 200

Dimension

Size As supplied(mm) After Recovery(mm) Standard Package
(M/pc)
Inside Diameter Wall Thickness Inside Diameter Wall Thickness
φ15 ≥15 0.45±0.15 8 0.85±0.15 1.0
φ20 ≥20 0.50±0.15 11 0.90±0.15 0.8/1.0/1.6
φ22 ≥22 0.50±0.15 12.5 0.90±0.15 0.8/1.0/1.6
φ25 ≥25 0.50±0.15 14.5 1.00±0.15 0.8/1.0/1.6
φ28 ≥28 0.50±0.15 15.5 1.00±0.15 0.8/1.0/1.6
φ30 ≥30 0.60±0.15 17.5 1.20±0.15 0.8/1.0/1.6
φ35 ≥35 0.60±0.15 20.0 1.20±0.15 0.8/1.0/1.6
φ40 ≥40 0.60±0.15 23.0 1.20±0.15 0.8/1.0/1.6
φ45 ≥45 0.65±0.15 25.0 1.25±0.15 0.8/1.0/1.6
φ50 ≥50 0.65±0.15 28.0 1.25±0.15 0.8/1.0/1.6

Color: Black, red, yellow, green, blue (other color available upon request).

About SUNBOW

Shenzhen Sunbow Insulation Materials MFG. Co., Ltd was established in 2003. We are mainly engaged in producing and selling Fiberglass Sleeving, Soft PVC Tube, Silicone Rubber Tube, Corrugated Conduit, PET Expandable Sleeving, PTFE Tube and Cable Accessories. Our products are UL, RoHS, Reach approved and are widely used in transformers, motors, lightings, wiring harness, heating elements, Switchboard etc.
