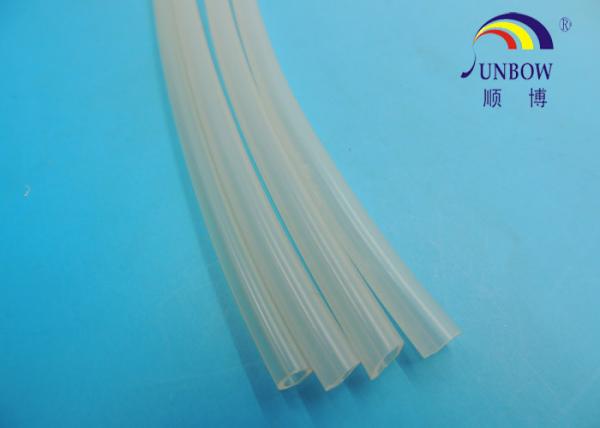

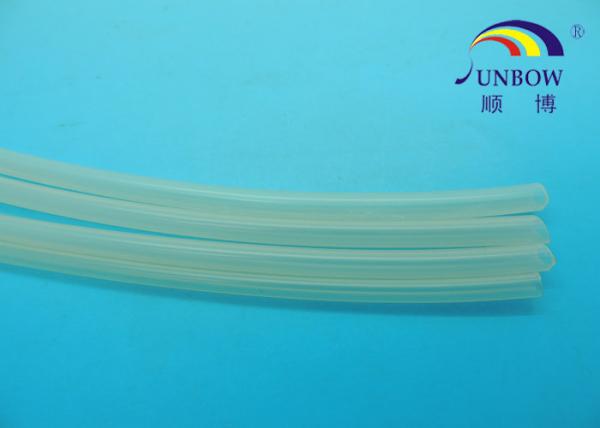

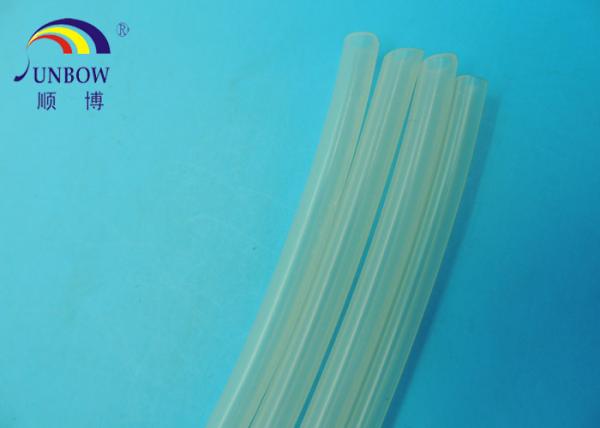

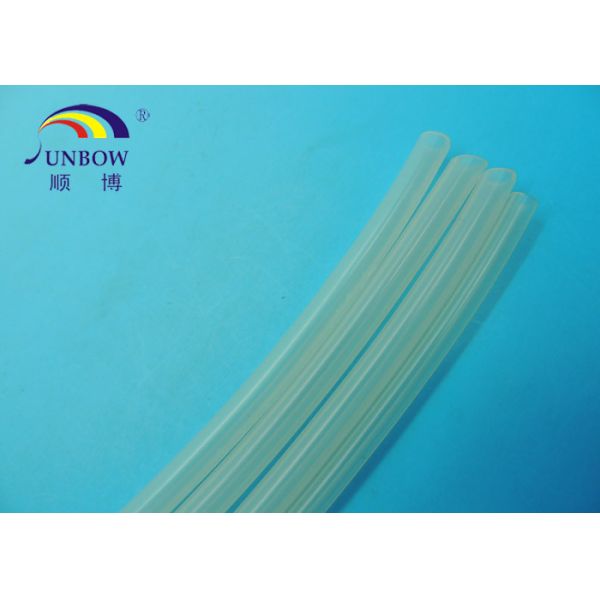

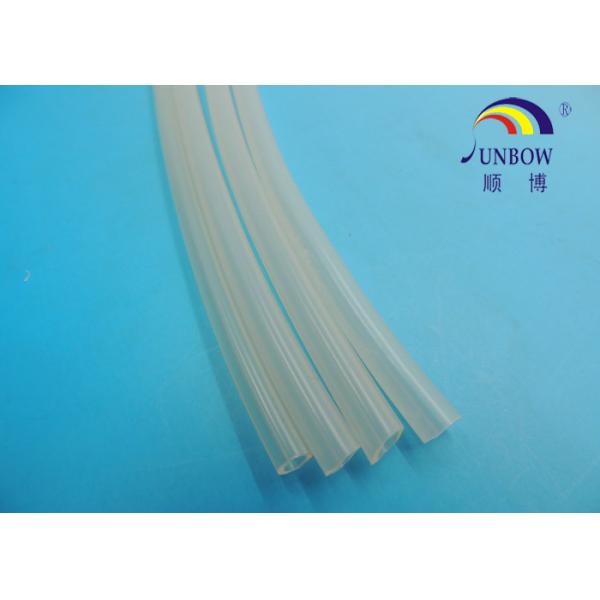

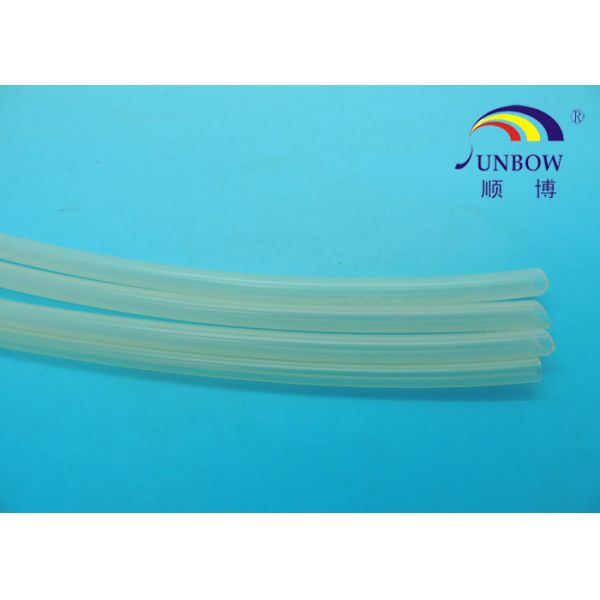

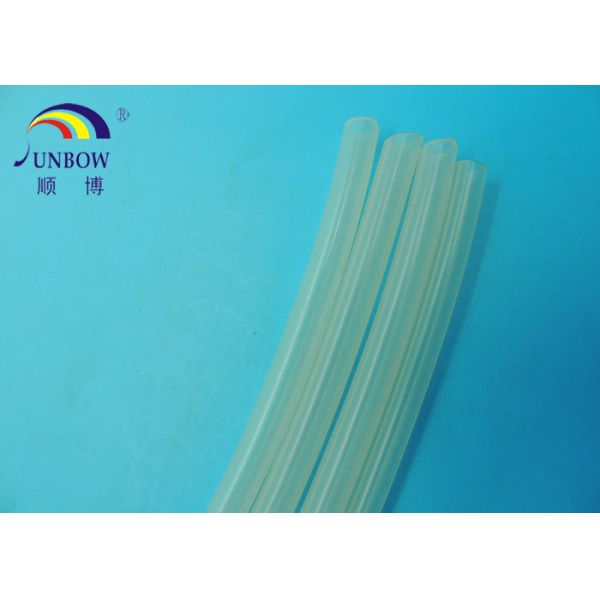

Transparent Silicone Rubber Tube / Clear Heat Shrinkable Tubing -40ºC - 200ºC
Transparent Silicone Rubber Tube / Clear Heat Shrinkable Tubing -40ºC - 200ºC
Transparent Silicone Rubber Tube / Clear Heat Shrinkable Tubing -40ºC - 200ºC
Transparent Silicone Rubber Tube / Clear Heat Shrinkable Tubing -40ºC - 200ºC
Transparent Silicone Rubber Tube / Clear Heat Shrinkable Tubing -40ºC - 200ºC
Transparent Silicone Rubber Tube / Clear Heat Shrinkable Tubing -40ºC - 200ºC
Transparent Silicone Rubber Tube / Clear Heat Shrinkable Tubing -40ºC - 200ºC
Transparent Silicone Rubber Tube / Clear Heat Shrinkable Tubing -40ºC - 200ºC
Specifications
Brand Name :
SUNBOW
Model Number :
SB-SR-HST
Certification :
UL, CE, REACH
Place of Origin :
Shenzhen, China
MOQ :
silicone rubber heat shrink tube for electric cable and wire insulation
Delivery Time :
6-10 working days
Packaging Details :
standard packing in roll
Product name :
Silicone rubber heat shrink tube
Working temperature :
-40ºC - 200ºC
Brand name :
SUNBOW
Color :
Default color is grey, others available
Size :
0.8-22mm Standard, No Mould Required
UL Number :
E360625
Application :
Medical Device, Wiring Insulation, Cable Bundles, H Grade AC Motors, Car Windows/sealing, Cooking Appliances..
Description

UL-224 VW-1 shrink ratio:1.7: 1 flexible silicone heat shrinkable tubing

Shrink temperature: 90ºC - 170ºC

Model Number: SB-SR-HST

Shrink temperature: 90ºC - 170ºC

Structure of SB-SR-HST

High temperature and voltage resistant, flame retardant, soft, SGS compliant.

Usage

It is widely use in electric

protection, resistor, capacitor, aerospace, medical instrument etc.

;retardant, soft, SGS compliant.

Specification

Dielectric constant (*) 50HZ

3.2

Rigidity (Shore A)

70±5

Copper Corrosion

No corrosion

Antibiotic property, erosion resistance property

Excellent

Toughness (fold, bend, tear etc.)

Excellent

Tensile strength Mpa (kgf/cm)

6.9(70)

Dielectric breakdown voltage (kv/mm)

25

Appearance

Smooth, no visible fur and defects , no impurity

Shrink temperature

>90ºC

Shrink ratio (%)

≥50%

Elongation (%)

40

Flammability UL-224

VW-1

Resistance performance

Wear-resistant, acid-resistant, anti-virus,

anti-corona discharge, withstand liquor,

oil and other special liquid.

Water absorption

No

Dimension

Size

Shrink size

Wall thickness

After recovery

Thickness

I.D.

Thin type

Thick type

I.D.

Thin type

Thick type

Φ1.0

1.0

0.5±0.1

0.80

0.6

0.7±0.1

1.1±0.1

Φ1.5

1.5

0.5±0.1

0.80

0.8

0.7±0.1

1.1±0.1

Φ2.0

2.0

0.5±0.1

0.80

1.2

0.7±0.1

1.1±0.1

Φ2.5

2.5

0.5±0.1

0.80

1.5

0.7±0.1

1.1±0.1

Φ3.0

3.0

0.5±0.1

0.80

1.8

0.7±0.1

1.1±0.1

Φ3.5

3.5

0.5±0.1

0.80

2.0

0.7±0.1

1.1±0.1

Φ4.0

4.0

0.5±0.1

0.80

2.5

0.7±0.1

1.1±0.1

Φ4.5

4.5

0.5±0.1

0.80

2.8

0.7±0.1

1.1±0.1

Φ5.0

5.0

0.5±0.1

0.80

3.0

0.7±0.1

1.1±0.1

Φ6.0

6.0

0.5±0.1

0.80

3.8

0.7±0.1

1.1±0.1

Φ7.0

7.0

0.5±0.1

0.80

4.0

0.7±0.1

1.1±0.1

Φ8.0

8.0

0.5±0.1

0.80

4.8

0.7±0.1

1.1±0.1

Φ9.0

9.0

0.5±0.1

0.80

5.0

0.7±0.1

1.1±0.1

Φ10.0

10.0

1.0±0.1

1.50

6.5

1.7±0.1

2.5±0.1

Φ12

12.0

1.0±0.1

1.50

7.0

1.7±0.1

2.5±0.1

Φ15

15.0

1.0±0.1

1.50

9.0

1.7±0.1

2.5±0.1

Φ20

20.0

1.0±0.1

1.50

13.0

1.7±0.1

2.5±0.1

Φ25

25.0

1.0±0.1

1.50

15.0

1.7±0.1

2.5±0.1

Φ30

30.0

1.0±0.1

1.50

18.0

1.7±0.1

2.5±0.1

Φ35

35.0

1.0±0.1

1.50

20.0

1.7±0.1

2.5±0.1

Φ40

38.0

1.0±0.1

1.50

25.0

1.7±0.1

2.5±0.1

Φ50

47.0

1.0±0.1

1.50

30.0

1.7±0.1

2.5±0.1

Φ60

57.0

1.5±0.1

2.00

38.0

2.5±0.1

3.2±0.1

Φ70

67.0

1.5±0.1

2.00

45.0

2.5±0.1

3.2±0.1

Φ80

77.0

1.5±0.1

2.00

48.0

2.5±0.1

3.2±0.1

Φ90

87.0

1.5±0.1

2.00

52.0

2.5±0.1

3.2±0.1

Φ110

107.0

1.5±0.1

2.00

63.0

2.5±0.1

3.2±0.1

*The thickness could be customized for 2mm~5mm thicker upon request.

Competitive of SUNBOW'S silicone rubber heat shrinkable tubing

1) ISO 9001 : 2008 and TS 16949 standard manufacturer
2) high-tech enterprise in China
3) with 12-year manufacturing experience
4) factory direct sales
5) best price high quality product
6) quick delivery time for sample or formal orders
7) quick response for feedback
8) few complaints from customers
9) more competitive price for VIP customers
10) convenient situation near to seaport
11) flame resistant tube of this type is available
12) high quality non-alkali fiberglass yarn
13) free samples are available
14) customized solution for non standard sizes
15) famous manufacturer partners such as Panasonic, Samsung, Midea, HOT, Emerson etc.
