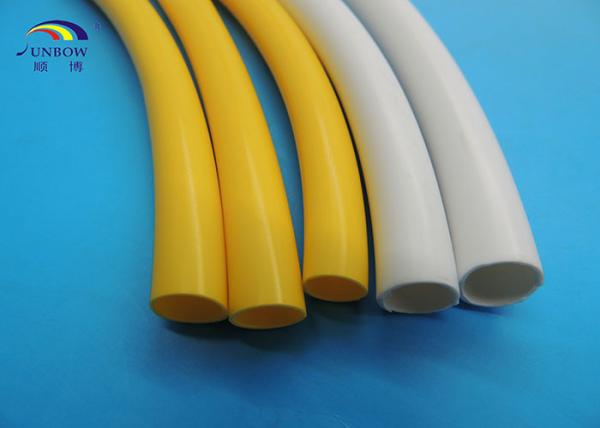

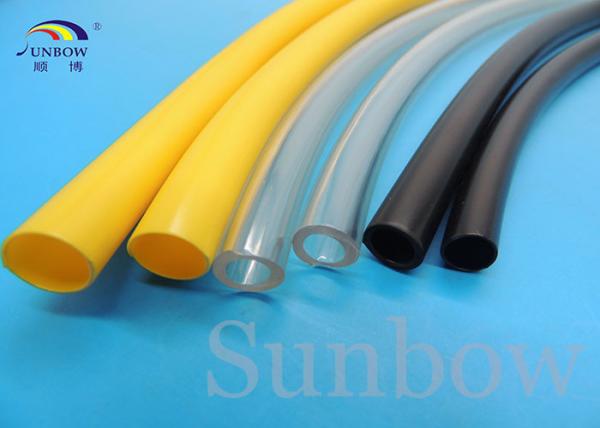

Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness
Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness
Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness
Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness
Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness
Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness
Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness
Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness
Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness
Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness
Specifications
Brand Name :
SUNBOW
Model Number :
SB-PVC
Certification :
UL, ROHS, REACH
Place of Origin :
SHENZHEN, CHINA
MOQ :
2000meters
Price :
USD 0.01-0.99/M
Payment Terms :
L/C, T/T, Paypal
Supply Ability :
2000000 meters/ month
Delivery Time :
7-10 work days.
Packaging Details :
Packing by rolls then rolls by carton.
Product Name :
Clear PVC jacketed sleeve for wire harness
Material :
PVC
Working temperature :
-30C-105C
Voltage :
300V or 600V
Fire resistant :
UL vw-1
Size :
ID 0.8-25mm
Application :
electric appliance, motors, wire harness, components
Description

Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness

Product Description

GRADE:SB-PVC
Working temperature:-30°C~+105°C

STRUCTURE

PVC tubing is produced with superior and environmentally friendly polyvinyl colloidal particle, after drying,

extruded to tubing when heated up and liquated, then packing in rolls after cooling.

USAGE

With the excellent flexibility, mechanical and dielectric capability, flame resistance performance, PVC tubing

is widely used in outside insulation protection of outgoing wires of electrical appliances, transformers, electrical

motors or lighting equipment, and electronic components, wire harness and etc.

SPECIFICATION

Item Unit Test Method Numerical Value
SB-300 SB-600
Voltage rating V 300 600
Temperature rating °C UL224 105
Voltage resistance Before aging UL224 23°C 2500V/60sec
After aging UL224 136°C 168hr 2500V/60sec
Volume resistivity Ωcm UL224 ≥1010
Tensile strength Before aging Mpa UL224 23°C ≥10.4
After aging Mpa UL224 136°C 168hr ≥7.3
Elongation Before aging % UL224 23°C ≥100%
After aging % UL224 136°C 168hr ≥100%
Flexibility UL224 136°C 168hr No cracking
Heat shock UL224 180°C 4hr No cracking
Cold bend UL224 -30°C 1hr No cracking
Copper stability UL224 136°C 168hr No corrosion
Flame resistance UL224 VW-1

DIMENSION

Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness

Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness

Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness

Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness

Soft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire HarnessSoft Clear Flexible PVC Tubing PVC Jacketed Sleeves For Wire Harness

Our Services

1) 3~5 quick time production;

2) 2 years quality guarantee;

3) Prompt feedback;

4) 24 hours on line service.

Company Information

1) ISO 9001:2008 approved;

2) 10 years exporting experience;

3) 15 years manufacturing experience;

4) Other products certificates: UL E360625 for heat shrink tube, silicone rubber tube and PTFE tube; E333178 and E333177 for silicone fiberglass sleeve; ROHS, REACH, CQC.
