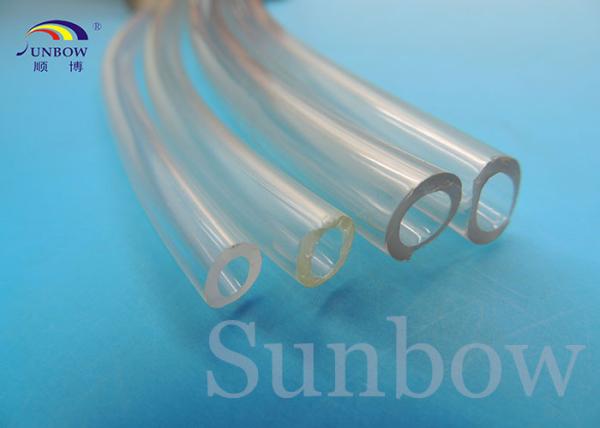

Clear 1/8 ID x 1/4 OD flexible pvc hose / Resistant temperature pvc flexible pipe
Clear 1/8 ID x 1/4 OD flexible pvc hose / Resistant temperature pvc flexible pipe
Clear 1/8 ID x 1/4 OD flexible pvc hose / Resistant temperature pvc flexible pipe
Clear 1/8 ID x 1/4 OD flexible pvc hose / Resistant temperature pvc flexible pipe
Specifications
Brand Name :
SUNBOW
Model Number :
SB-PVC
Certification :
ROHS, REACH, UL
Place of Origin :
SHENZHEN, CHINA
MOQ :
2000 meters
Price :
USD 0.01-0.99/M
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
20000 meters/week
Delivery Time :
7-10 work days
Packaging Details :
by rolls, then rolls by carton.
Product name :
clear PVC soft tube
Material :
PVC
Color :
clear, other color available
Flammability :
UL224 VW-1
Certificate :
Rohs, Reach
Application :
wire harness, electric component
Resistant temperature, voltage :
105 degree, 600V
MOQ :
2000 meters
Size :
ID 0.8-28 mm
Tensile strength :
10.4 MPA
Description

Clear 1/8" ID x 1/4" OD flexible pvc hose / Resistant temperature pvc flexible pipe

Product Description

Model Number: SB-PVC

Working temperature: -30-105 degree

Structure

Pvc tubing is produced by superior and environmentally friendly polyvinyl colloidal particle,after drying,extruded to tubing when heated up and liquated,then packing in rolls after cooling.

Usage

Widely used in insulated or partially insulated conductors,bus bars,componet leads,or assemlies or electrical componets etc.

Specification

ITEM PERFORMANCE ITEM PERFORMANCE
Continuous operating temperature -20°C~105°C Potential rating(V) 300V,600V
Tensile strength (Mpa) ≥10.4 Potential rating(V) no breakdown
Ultimate elongation(%) ≥100 Corrosion of bare copper NO Corrosion
Optional Flame VW-1 Heat shock NO Cracking
Aging in circulating air oven 7day at136.0±1.0°C Cold bend NO Cracking
After aging Tensile strength(Mpa) ≥7.28 Maximum longitudinal change ±5%
Ultimate elongation (%) ≥70

Dimension

AWG NO. Inner Diameter(mm) Wall Thickness (mm)

Standard Package

m/roll
SB-300 SB-600
24 0.55±0.1 0.25±0.05 0.40±0.05
22 0.65±0.1 0.25±0.05 0.40±0.05 305
20 0.85±0.1 0.25±0.05 0.40±0.05 305
19 0.9±0.1 0.30±0.05 0.40±0.05 305
18 1.0±0.15 0.30±0.05 0.45±0.05 305
17 1.2±0.15 0.30±0.05 0.45±0.05 305
16 1.3±0.15 0.30±0.05 0.45±0.05 305
15 1.5±0.15 0.30±0.05 0.45±0.05 305
14 1.7±0.15 0.30±0.05 0.45±0.05 305
13 1.9±0.2 0.30±0.05 0.45±0.05 305
12 2.1±0.2 0.35±0.05 0.50±0.05 305
11 2.4±0.2 0.35±0.05 0.50±0.05 305
10 2.7±0.2 0.35±0.05 0.50±0.05 305
9 3.0±0.2 0.40±0.05 0.50±0.05 305
8 3.3±0.2 0.40±0.05 0.50±0.05 305
7 3.7±0.2 0.40±0.05 0.50±0.05 305
6 4.2±0.3 0.45±0.05 0.50±0.05 305
5 4.7±0.3 0.45±0.05 0.55±0.05 305
4 5.3±0.3 0.45±0.05 0.55±0.05 305
3 5.9±0.3 0.45±0.05 0.55±0.05 152
2 6.6±0.3 0.45±0.05 0.55±0.05 152
1 7.4±0.35 0.45±0.05 0.55±0.05 152
0 8.3±0.35 0.45±0.05 0.55±0.05 152


Clear 1/8Clear 1/8
