White High Temperature Fiberglass Sleeving for AC Motor / Generator / Electronics
White High Temperature Fiberglass Sleeving for AC Motor / Generator / Electronics
White High Temperature Fiberglass Sleeving for AC Motor / Generator / Electronics
White High Temperature Fiberglass Sleeving for AC Motor / Generator / Electronics
White High Temperature Fiberglass Sleeving for AC Motor / Generator / Electronics
White High Temperature Fiberglass Sleeving for AC Motor / Generator / Electronics
White High Temperature Fiberglass Sleeving for AC Motor / Generator / Electronics
White High Temperature Fiberglass Sleeving for AC Motor / Generator / Electronics
Specifications
Brand Name :
Sunbow
Model Number :
SB-TGS-1S
Certification :
UL, REACH, ROHS
Place of Origin :
Shenzhen, China
MOQ :
5000meters/size/color
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
9,000,000meters/month
Packaging Details :
Sunbow standard packing
Price :
USD 0.03 ~ 1.37 /M
Delivery Time :
5 ~9 working days
Material :
fiberglass yarn
Color :
White
Product name :
High temperature fiberglass sleeving
Certificate :
CE, ROHS, REACH, UL
Working temperature :
200 celius degree
Manufacturer name :
Sunbowgd
Insulation level :
800V
Description

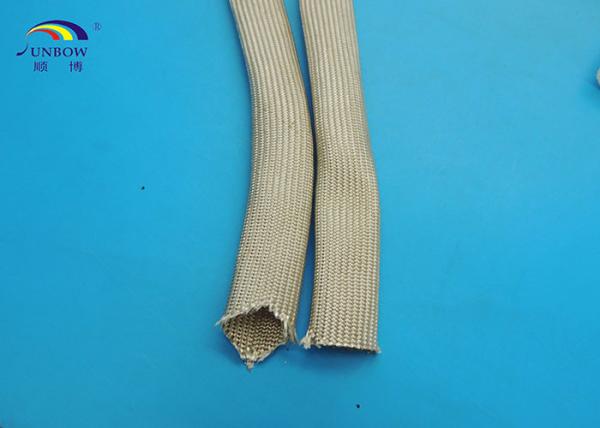

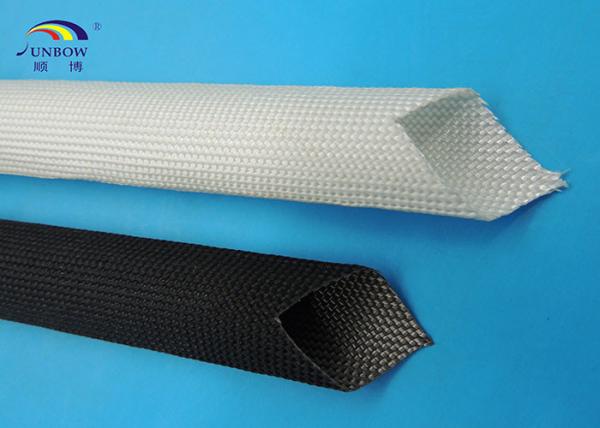

white color high temperature fiberglass sleeving for AC motor / generator / electronics

Model number: SB-TGS-1S

Flexibility and flame retarding properties make these sleevings high performance qualities. It can be

widely used in uninsulated or partially insulated conductors, bus bars, component leads, or assemblies

of electrical components etc.

Item

Performance

Note

Thermal endurance

No indication of crack

OK

6 HRS* 400±5ºC

245±5ºC 6HRS Aging

Fire resistance

VW-1

OK

UL 1441

DIMENSION

Inside Diameter

Wall thickness

(mm)

Standard package

(m/roll)

Nominal (mm)

Tolerance (mm)

φ0.5

+0.5, -0.5

≥0.25mm

200

φ1.0

+0.5, -0.5

≥0.25mm

200

φ1.5

+0.5, -0.5

≥0.25mm

200

φ2.0

+0.5, -0.5

≥0.25mm

200

φ2.5

+0.5, -0.5

≥0.30mm

200

φ3.0

+0.5, -0.5

≥0.30mm

200

φ4.0

+0.5, -0.5

≥0.30mm

200

φ4.5

+0.5, -0.5

≥0.35mm

100

φ5.0

+0.5, -0.5

≥0.35mm

100

φ6.0

+0.5, -0.5

≥0.35mm

100

φ7.0

+0.5, -0.5

≥0.40mm

100

φ8.0

+0.5, -0.5

≥0.40mm

100

φ9.0

+0.5, -0.5

≥0.45mm

100

φ10.0

+1.0 -1.0

≥0.45mm

100

φ12.0

+1.0, -1.0

≥0.45mm

50

φ14.0

+1.0, -1.0

≥0.45mm

50

φ16.0

+1.0, -1.0

≥0.45mm

50

φ18.0

+1.0, -1.0

≥0.45mm

50

φ20.0

+1.0, -1.0

≥0.50mm

25

φ25.0

+1.0, -1.0

≥0.50mm

25

φ30.0

+1.0, -1.0

≥0.50mm

25

White High Temperature Fiberglass Sleeving for AC Motor / Generator / Electronics
