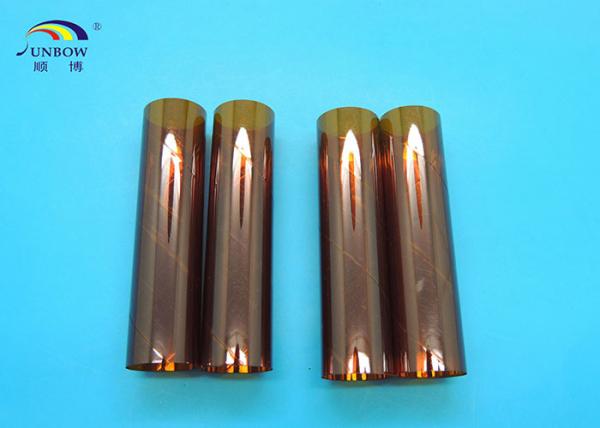

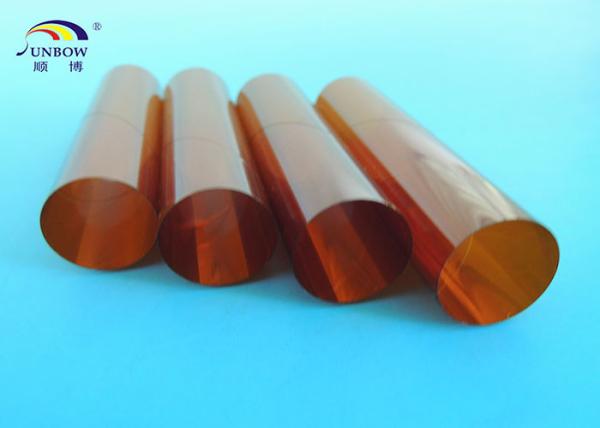

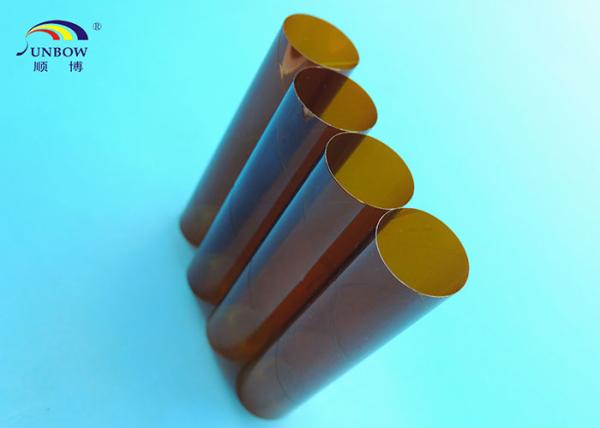

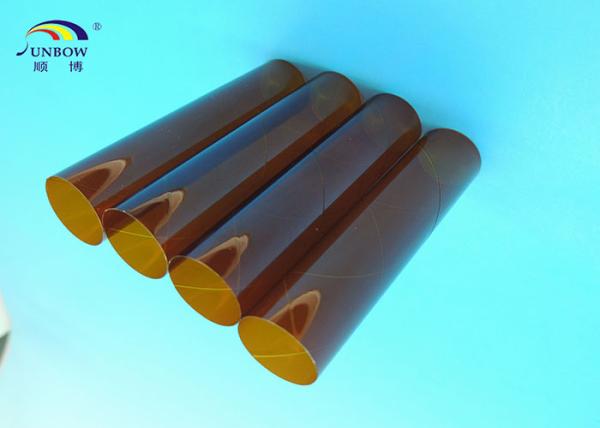

Acid / Abrasion proof Polyimide Film Sleeving for Electrical Applicance
Acid / Abrasion proof Polyimide Film Sleeving for Electrical Applicance
Acid / Abrasion proof Polyimide Film Sleeving for Electrical Applicance
Acid / Abrasion proof Polyimide Film Sleeving for Electrical Applicance
Acid / Abrasion proof Polyimide Film Sleeving for Electrical Applicance
Acid / Abrasion proof Polyimide Film Sleeving for Electrical Applicance
Acid / Abrasion proof Polyimide Film Sleeving for Electrical Applicance
Acid / Abrasion proof Polyimide Film Sleeving for Electrical Applicance
Specifications
Brand Name :
SUNBOW
Model Number :
SB-PFT
Certification :
UL, ROHS, REACH
Place of Origin :
Shenzhen, China
MOQ :
10000meter/size/color
Price :
USD0.12-USD3/meter
Payment Terms :
TT, LC, WU, paypal
Supply Ability :
9,000,000meters/month
Delivery Time :
5-8 working days
Packaging Details :
Sunbow standard packing
Product name :
Acid / Abrasion proof Polyimide Film Sleeving for Electrical Applicance
Flat Size :
0.5mm-30mm
Color :
light yellow
Reach :
Yes, SGS
Application :
Automobile, AC motor, heater,Wire hardness, bus bar, component leads, assemblies of electric components etc.
RoHS :
Yes, SGS
Tenacity :
Excellent
Cuticle intensity :
Excellent
Metling point :
250~265 degree C
Surface :
Smooth, no fleck
Description

Acid / Abrasion proof Polyimide Film Sleeving for Electrical Applicance

Model Number:SB-PFT

Operating temperature: -60ºC ~ +220ºC

Acid / Abrasion proof Polyimide Film Sleeving for Electrical Applicance

Structure

PFT tubing is manufactured by twisted polyimide film then adhesives by special glue. The glue possesses similar chemical characteristics with polyester film.

Usage

Main application range: insulation and mechanical protection for soldering, connection, wire harness, transformer, motor, cable, heating element, capacitor, telephone, electrical appliance etc.

Characteristics

Dimension

Inside diameter 2.0-65(mm),Thickness 0.05-1(mm), Length10-1000(mm)

Color

light yellow

Melting point

250ºC - 265ºC

Service temperature

-269ºC ～ 260ºC

Density

1.42+/-0.02

Tensile strength

Longitudinal >=130mpa; Horizontal>=110mpa

Water absorption

75% max after 24 hr immersion

Corrosive on Copper

Negligible

Solubility in acid, oil, paint, industrial solvents tec.

Undissolved

Antibacterial, anti corrosive

Excellent

Tenacity

Excellent

Cuticle intensity

≥35%

Resistance pressure

50HZ 115MV/min Not perforative

Visual

Smooth, No fleck

Surface resistivity: (200ºC)

≥1.0x1013

Volume resistivity: (200ºC)

≥3.8x1010

Dielectric coefficient:(50HZ)

3.5

Dielectric loss:(50HZ)

≤4X10-3

Flammability

Slow to self-extinguishing

Burning resistance

Resistance characteristics

Resistance to abrasion, acids, immersion, mildew, industrial solvent, mechanical destroy, Freon and special liquids

Xylene extraction

<2%

Environment protection

No harmful to human and environment

Note: Besides above dimension, we can manufacture other dimension upon request.

Advantages

  1. Soft and flexible
  2. Excellent anti-bacterial and corrosion
  3. Excellent non-flammability
  4. No harmful to human
  5. Excellent dielectric strength
  6. Smooth surface
  7. Wide application
  8. Anti corrosion
  9. Free samples are avaible
  10. Fast delivery
  11. Sufficient storage
