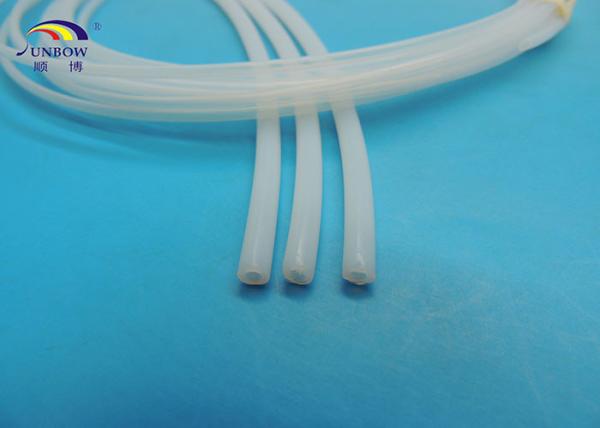

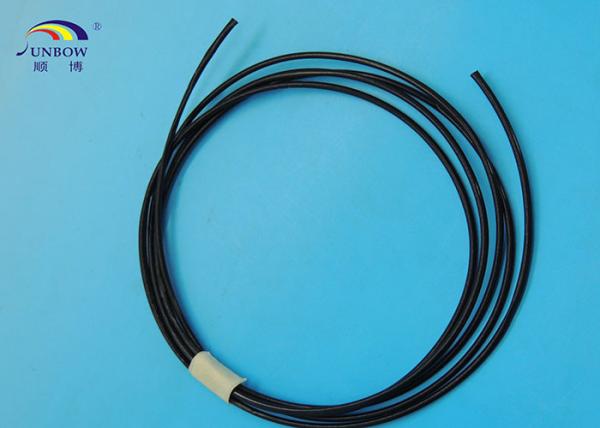

White or Black PTFE Hose / Tubing / Sleeving for Electric Products -80ºC ～ 260ºC
White or Black PTFE Hose / Tubing / Sleeving for Electric Products -80ºC ～ 260ºC
White or Black PTFE Hose / Tubing / Sleeving for Electric Products -80ºC ～ 260ºC
White or Black PTFE Hose / Tubing / Sleeving for Electric Products -80ºC ～ 260ºC
White or Black PTFE Hose / Tubing / Sleeving for Electric Products -80ºC ～ 260ºC
White or Black PTFE Hose / Tubing / Sleeving for Electric Products -80ºC ～ 260ºC
White or Black PTFE Hose / Tubing / Sleeving for Electric Products -80ºC ～ 260ºC
White or Black PTFE Hose / Tubing / Sleeving for Electric Products -80ºC ～ 260ºC
Specifications
Brand Name :
SUNBOW
Model Number :
SB-PTFE
Certification :
ROHS, REACH, UL
Place of Origin :
CHINA
MOQ :
1000M
Price :
USD$0.05~$3.15/M
Payment Terms :
Western Union, T/T
Supply Ability :
30,000M/day
Delivery Time :
5~8 work days
Packaging Details :
AWG30 to 20: 305M/spool, AWG19 to 17: 200M/spool, AWG 16 to 6: 100M/Spool, AWG5 to 0: 1M/PC
Material :
PTFE
Working temperature :
-80~+260 degree C
Color :
Transparent, bule, red, yellow, black
UL number :
E360625
Size :
AWG30 to AWG 0
Type :
S, T, L
Breakdown Voltage :
45kv/mm
Shore hardness :
59~63A
Tensile strength :
>25MPA
Melting Point :
327 degree C
Arc Resistance :
>300
Description

High temperature PTFE hose PTFE products for electric products

Advantages:

1. Anti-corrosion in all kinds of chemicals including nitric acid & aqua fortis.
2. Low friction.

3. Virtually no lubrication requirement.

4. Light weight.

5. Resistant to corrosion and abrasion.

6. Stable chemical properties, Oil resistance.

7. High temperature resistance,Low temperature resistance,water resistance and so on.
8. Working temperature:-55~+260°C.
9. Good dielectric in mediums.

10. Made of high-speed mixing polytetrafluoroethylene resin and certain filling resin.
11. Soft and formable.

12. Outstanding chemical properties etc.

White or Black PTFE Hose / Tubing / Sleeving for Electric Products -80ºC ～ 260ºC

Model number:SB-PTFE

Operating temperature: -80ºC ～ 260ºC

Characteristics

1. Excellent anti-corrosion (anti-acid/alkaline/chemical/oil);

2. High voltage resistance (45kv/mm)

Usage

PTFE tube manufacture by extrusion process with imported high quality PTFE resin. It has excellent high temperature resistance, high voltage resistance, abrasion resistance and self-lubricating properties. It widely used in mechanical industries, electronic and electric products, motor vehicle, aerospace, chemical industry, communications etc.

Dimension

AWG

Inside Diameter (mm)

Outside Diameter (mm)(S)

Outside Diameter (mm)(T)

Outside Diameter (mm)(L)

Standard Package

(m/roll)

30

0.30±0.10

0.80±0.10

0.70±0.10

0.64±0.10

305

28

0.38±0.10

0.88±0.10

0.78±0.10

0.72±0.10

305

26

0.46±0.10

0.96±0.10

0.86±0.10

0.80±0.10

305

24

0.56±0.10

1.16±0.10

1.06±0.10

0.90±0.10

305

23

0.66±0.10

1.26±0.10

1.16±0.10

1.00±0.10

305

22

0.71±0.10

1.31±0.10

1.21±0.10

1.05±0.10

305

21

0.81±0.10

1.41±0.10

1.31±0.10

1.15±0.10

305

20

0.86±0.10

1.66±0.10

1.46±0.10

1.20±0.10

305

19

0.96±0.20

1.76±0.20

1.56±0.20

1.30±0.20

200

18

1.07±0.20

1.87±0.20

1.67±0.20

1.41±0.20

200

17

1.19±0.20

1.99±0.20

1.79±0.20

1.53±0.20

200

16

1.34±0.20

2.14±0.20

1.94±0.20

1.68±0.20

153

15

1.50±0.20

2.30±0.20

2.10±0.20

1.84±0.20

153

14

1.68±0.20

2.48±0.20

2.28±0.20

2.08±0.20

100

13

1.93±0.20

2.73±0.20

2.53±0.20

2.33±0.20

100

12

2.16±0.25

2.96±0.25

2.76±0.25

2.56±0.25

100

11

2.41±0.25

3.21±0.25

3.01±0.25

2.81±0.25

150

10

2.69±0.25

3.49±0.25

3.29±0.25

3.09±0.25

150

9

3.00±0.25

4.00±0.25

3.80±0.25

3.40±0.25

150

8

3.38±0.25

4.38±0.25

4.18±0.25

3.78±0.25

100

7

3.76±0.25

4.76±0.25

4.56±0.25

4.16±0.25

100

6

4.22±0.25

5.22±0.25

4.92±0.25

4.80±0.25

100

5

4.72±0.25

5.72±0.25

5.42±0.25

5.32±0.25

50

4

5.28±0.30

6.28±0.30

6.02±0.30

5.88±0.25

1

3

5.94±0.30

6.94±0.30

6.74±0.30

6.54±0.25

1

2

6.68±0.30

7.68±0.30

7.48±0.30

7.28±0.25

1

1

7.46±0.30

8.46±0.30

8.26±0.30

8.06±0.25

1

0

8.38±0.30

9.38±0.30

9.18±0.30

8.98±0.25

1

Special thick wall thickness PTFE tube with wall thickness 0.5mm, 1mm, 1.5mm, 2mm

Inner Diameter(mm)

Outside Diameter (mm) Wall Thickness =0.5mm

Outside Diameter (mm) Wall Thickness =1mm

Outside Diameter (mm)

Wall Thickness =1.5mm

Outside Diameter (mm)

Wall Thickness =2.0mm

1

2±0.10

3±0.10

4±0.10

5±0.10

2

3±0.10

4±0.10

5±0.10

6±0.10

3

4±0.10

5±0.10

6±0.10

7±0.10

4

5±0.10

6±0.10

7±0.10

8±0.10

5

6±0.10

7±0.10

8±0.10

9±0.10

6

7±0.10

8±0.10

9±0.10

10±0.10

7

8±0.10

9±0.10

10±0.10

11±0.10

8

9±0.10

10±0.10

11±0.10

12±0.10

9

10±0.20

11±0.20

12±0.20

13±0.20

10

11±0.20

12±0.20

13±0.20

14±0.20

11

12±0.20

13±0.20

14±0.20

15±0.20

12

13±0.20

14±0.20

15±0.20

16±0.20

14

15±0.20

16±0.20

17±0.20

18±0.20

Specification

Item

Standard

Item

Standard

Relative Density

2.14～2.20

Melting Point (ºC)

327

Tensile Strength (MPa)

≥25

Operating Temperature (0C)

-80～260

Stretch Yield Strength (MPa)

≥11

Oxygen index(%)

>90

Elongation (%)

≥300

Water Absorption (%)

<0.01

Arc Resistance

>300

Linear Expansion Coefficient (×105/ ºC)21～1000C

10

Shore Hardness (D)

59～63

breakdown strength (kv/mm)

≥45

volume resistance (Ω.cm)

1×1016
