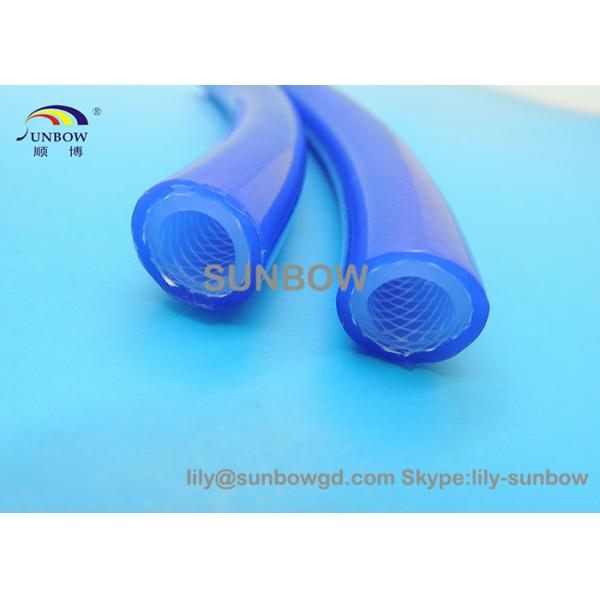

UL Certificate Inflatable Thick Wall Elastic Silicone Rubber Reinforced Tube
UL Certificate Inflatable Thick Wall Elastic Silicone Rubber Reinforced Tube
UL Certificate Inflatable Thick Wall Elastic Silicone Rubber Reinforced Tube
UL Certificate Inflatable Thick Wall Elastic Silicone Rubber Reinforced Tube
UL Certificate Inflatable Thick Wall Elastic Silicone Rubber Reinforced Tube
UL Certificate Inflatable Thick Wall Elastic Silicone Rubber Reinforced Tube
UL Certificate Inflatable Thick Wall Elastic Silicone Rubber Reinforced Tube
UL Certificate Inflatable Thick Wall Elastic Silicone Rubber Reinforced Tube
Specifications
Brand Name :
sunbow
Model Number :
SB-SRRT
Certification :
UL certificate
Place of Origin :
Shenzhen, China
MOQ :
1000 meter per size per colors
Price :
0.01-5usd per meter
Supply Ability :
200000m per week
Delivery Time :
5-15days
Packaging Details :
standard packing as size
Product name :
UL certificate inflatable thick wall elastic silicone rubber reinforced tube
Working Temperature :
-40ºC - 200ºC
Color :
clear, blue, red
UL Number :
E360625
Description

UL certificate inflatable thick wall elastic silicone rubber reinforced tube

1. Model

SB-SPR-20

2. Structure

The food grade red color silicone rubber reinforcement tube is made of extrude silicone rubber and fiberglass treated in high temperature.

3. Characteristics

1) flexibility, hot and cold resistance, insulation

2) thermal endurance: 200C*1hour

3) pressure endurance: 2.5 Mpa

4) certifications: UL, RoHS, REACH, SGS

4. Specification for UL certificate inflatable thick wall elastic silicone rubber reinforced tube

ITEM PERFORMANCE NOTE

DIELECTRIC BREAKDOWN

VOLTAGE KV AC

 ≥7.0 In air
≥6.0 In water
≥5.0 In 2% salt water
THERMAL ENDURANCE NO INDICATION OF CRACK 200℃× 1 hours
WORKING PRESSURE 2.5Mpa NO BREAKING

5. Dimension

I.D Tolerance Wall Thick Tolerance
mm mm mm mm
3.0 +0.4,-0.2 1.5 +/-0.2
4.0 +0.4,-0.2 2.0 +/-0.2
5.0 +0.4,-0.2 2.0 +/-0.2

6. Application

It has good flexibility, cold and heat resistance. It can work in high temperature and pressure. It is widely used in home use appliances like coffee makers.

UL Certificate Inflatable Thick Wall Elastic Silicone Rubber Reinforced Tube
