Specifications
Brand Name :
SUNBOW
Model Number :
SB-SRT
Certification :
UL, ROHS, REACH
Place of Origin :
Shenzhen, China
MOQ :
1000meters
Price :
0.1-5
Supply Ability :
10000000meters per month
Delivery Time :
6-10 days
Packaging Details :
Sunbow standard packing
Raw material :
silicone rubber
Working temperature :
-40-200C
Size :
0.8-30mm standard, no mould required
Properties :
Heat Resistant, Flexible, Self-extinguishing, Elastic
Color :
clear, red, blue, yellow, green
UL number :
E360625
Application :
Medical device, Wiring Insulation, Cable Bundles, H Grade AC Motors, Cooking Appliances...
Description

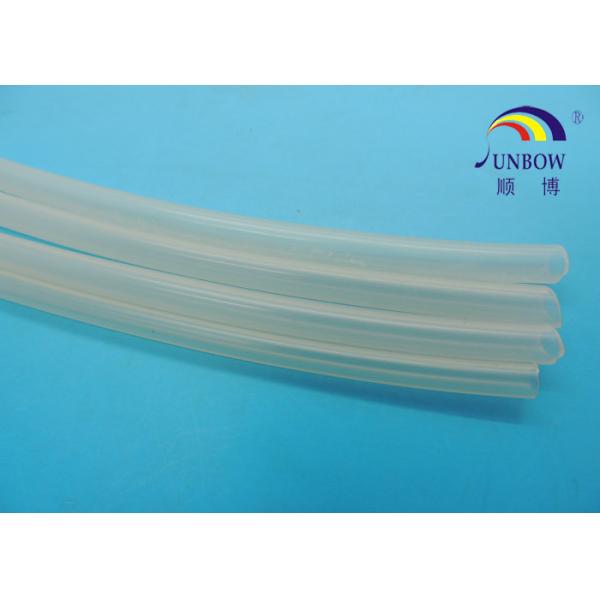

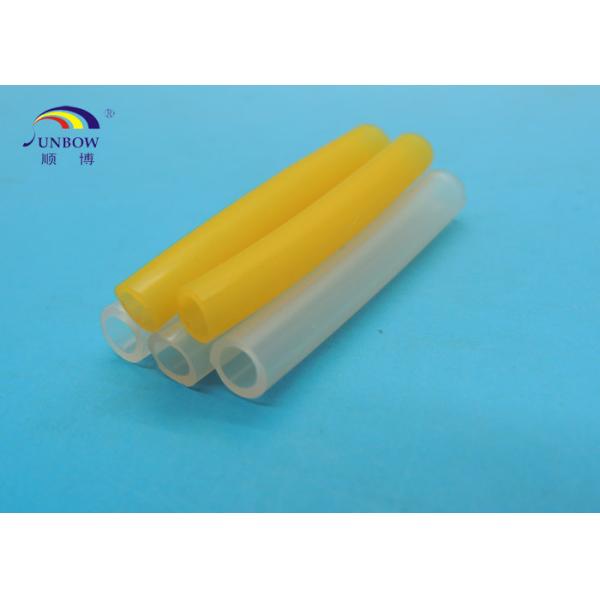

Milk beer Water Purifier Silicone Rubber Tube Aquarium Air Pump Carp Clear silicone hose tube

Model Number: SB-SRT

Usage

Silicone rubber tubing with service temperature -30ºC to 250ºC. They are commonly applied in contact

with foods in accordance with provisions of FDA 21 CFR 177.2600 and in electric insulation. It can be

installed in coffee maker, water dispenser. electric water bottle, car wire hardness, or used in electric insulation etc.

Specification

Performance

Test method

Performance index

Dielectric strength (kv/mm)

GB/T 1048

≥18

Volume resistivity (Ω/cm)

GB/T 1410

≥1x1014

Tearing strength (MPa)

GB/T 1040

≥3.5 MPa

Elongation (%)

GB/T 1040

≥210

Fire resistance(flame retarded products)

GB/T 2408

FV-1

Dimension of Platinum cured silicone tubes for our industrial coffee machine / water dispenser / medical device

Size

Tolerance(mm)

Thickness and tolerance

2500V(mm)

4000V(mm)

6000V(mm)

7000V(mm)

φ0.8

0.8±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ1.0

1.0±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ1.5

1.5±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ2.0

2.0±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ2.5

2.5±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ3.0

3.0±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ3.5

3.5±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ4.0

4.0±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ4.5

4.5±0.10

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ5.0

5.0±0.20

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ5.5

5.5±0.20

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ6.0

6.0±0.20

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ6.5

6.5±0.20

0.50±0.10

1.00±0.15

1.50±0.20

2.00±0.25

φ7.0

7.0±0.20

—

1.00±0.15

1.50±0.20

2.00±0.25

φ7.5

7.5±0.20

—

1.00±0.15

1.50±0.20

2.00±0.25

φ8.0

8.0±0.25

—

1.00±0.15

1.50±0.20

2.00±0.25

φ9.0

9.0±0.25

—

1.00±0.15

1.50±0.20

2.00±0.25

φ10.0

10.0±0.25

—

1.00±0.15

1.50±0.20

2.00±0.25

φ11.0

11.0±0.30

—

1.00±0.15

1.50±0.20

2.00±0.25

φ12.0

12.0±0.30

—

1.00±0.15

1.50±0.20

2.00±0.25

φ13.0

13.0±0.30

—

1.00±0.15

1.50±0.20

2.00±0.25

φ14.0

14.0±0.30

—

—

1.50±0.20

2.00±0.25

φ15.0

15.0±0.30

—

—

1.50±0.20

2.00±0.25

φ20.0

20.0±0.30

—

—

—

2.50±0.3

Remarks: Default color is clear, other color can be customized.

Competitive point,

1) ISO 9001 : 2008 factory manufacturer

2) high-tech enterprise and TS 16949 standard in China

3) 12-year manufacturing experience

4) factory direct sales and stardard after-sales service procedure

5) best price high quality product

6) quick delivery time for sample or formal orders

7) quick response for feedback in email or calls

8) few complaints from customers

9) more competitive price for VIP customers

10) convenient situation near to Shenzhen seaport

11) flame resistant tube is available
