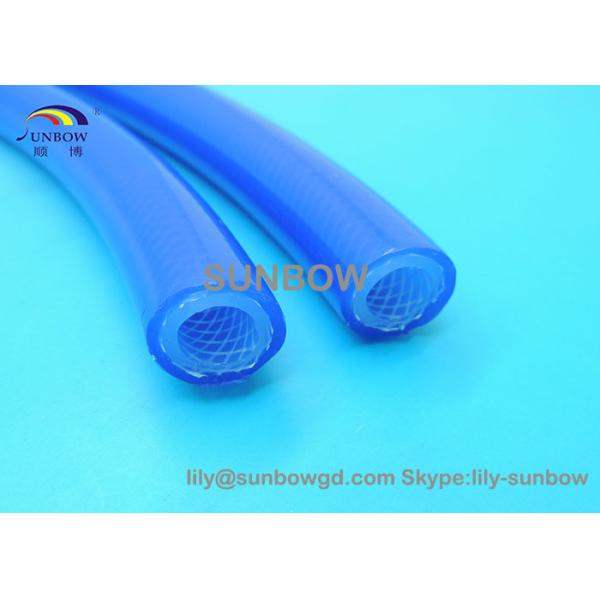

SUNBOW 12MM Food Grade Extruded Fiber Reinforced Silicone Rubber Tubing
SUNBOW 12MM Food Grade Extruded Fiber Reinforced Silicone Rubber Tubing
SUNBOW 12MM Food Grade Extruded Fiber Reinforced Silicone Rubber Tubing
SUNBOW 12MM Food Grade Extruded Fiber Reinforced Silicone Rubber Tubing
SUNBOW 12MM Food Grade Extruded Fiber Reinforced Silicone Rubber Tubing
SUNBOW 12MM Food Grade Extruded Fiber Reinforced Silicone Rubber Tubing
SUNBOW 12MM Food Grade Extruded Fiber Reinforced Silicone Rubber Tubing
SUNBOW 12MM Food Grade Extruded Fiber Reinforced Silicone Rubber Tubing
Specifications
Brand Name :
SUNBOW
Model Number :
SB-SRRT
Certification :
UL certificate
Place of Origin :
Shenzhen, China
MOQ :
1000 meter per size per colors
Price :
0.01-5usd per meter
Supply Ability :
200000m per week
Delivery Time :
5-15days
Packaging Details :
standard packing as size
Product name :
SUNBOW 12MM Food Grade Extruded Fiber Reinforced Silicone Rubber Tubing for coffee maker
Working Temperature :
-40ºC - 200ºC
Color :
clear, blue, red
UL Number :
E360625
Description

SUNBOW 12MM Food Grade Extruded Fiber Reinforced Silicone Rubber Tubing for coffee maker

1. Model

SB-SPR-20

2. Structure

The food grade red color silicone rubber reinforcement tube is made of extrude silicone rubber and fiberglass treated in high temperature.

3. Characteristics

1) flexibility, hot and cold resistance, insulation

2) thermal endurance: 200C*1hour

3) pressure endurance: 2.5 Mpa

4) certifications: UL, RoHS, REACH, SGS

4. Specification

ITEM PERFORMANCE NOTE

DIELECTRIC BREAKDOWN

VOLTAGE KV AC

 ≥7.0 In air
≥6.0 In water
≥5.0 In 2% salt water
THERMAL ENDURANCE NO INDICATION OF CRACK 200℃× 1 hours
WORKING PRESSURE 2.5Mpa NO BREAKING

5. Dimension

I.D Tolerance Wall Thick Tolerance
mm mm mm mm
3.0 +0.4,-0.2 1.5 +/-0.2
4.0 +0.4,-0.2 2.0 +/-0.2
5.0 +0.4,-0.2 2.0 +/-0.2

6. Application

It has good flexibility, cold and heat resistance. It can work in high temperature and pressure. It is widely used in home use appliances like coffee makers.

SUNBOW 12MM Food Grade Extruded Fiber Reinforced Silicone Rubber Tubing
