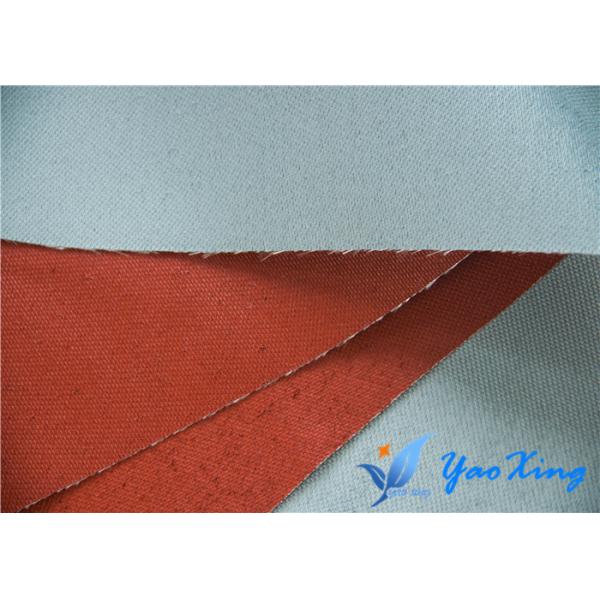

High Quality Single Side Silicone Coated Fiberglass Fabric(Cloth) For Fireproof
High Quality Single Side Silicone Coated Fiberglass Fabric(Cloth) For Fireproof
High Quality Single Side Silicone Coated Fiberglass Fabric(Cloth) For Fireproof
High Quality Single Side Silicone Coated Fiberglass Fabric(Cloth) For Fireproof
Specifications
Brand Name :
YAOXING
Model Number :
SRC0.8
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
30000 metres per month
Delivery Time :
5 work days
Packaging Details :
pvc package
Certification :
SGS
Material :
silicone rubber coated glass fiber fabric
Working Temperature :
220 ℃
Colour :
Red，Black,Gray,White and so on
Roll Length :
100 metres per roll or 50metres per roll
Thickness :
0.4mm-1.5mm
Width :
1000mm-1800mm
Package :
PVC bags and pallets
Substrate :
HT800 fiberglass fabric
Description

High Quality Single Side Silicone Coated Fiberglass Fabric(Cloth) for fireproof

Silicone rubber has excellent properties of heat-resistance, high insulation and resistance to weathering, so it can be used as coating on the fiberglass fabric. With silicone rubber coating, the fabric will has new properties of high performance and multi-purpose material, like anti-ozone, oxygen, light and weathering. As per our experience, we do silicon rubber coating on one side or two sides of fiberglass fabric, the final area weight is 300-2500g/m2, width is 1-1.54m, supply it in roll or in tape as per client's requirement.
Properties are as follows:
Life-time: 10 years
Standing temperature: -40C to 250C deg
Dielectric constant: 3-3.2
Breakdown voltage: 20-50KV/MM

Application:
1. Electrical insulation. With very high electrical insulation property, silicone coated glass fabric can stand high voltage load. It is suitable for making insulation cloth and insulating bush.

2. Non-metallic compensator. Silicone coated glass fabric can be produced as soft connecting part of pipe to avoid pipe broken caused by thermal expansion and contraction. With properties of thermal insulation, anti-corrosion, anti-aging and soft, silicone coated glass fabric is widely used in fields like oil, chemical industry, cement and energy sources.

3. Anti-corrosion. With very good anti-corrosive property, silicone coated glass fabric can be used as protection coating on pipe and saving box.

4. Other fields. Silicone coated glass fabric can also be used as building sealing material, high temperature corrosion resistant conveyor belt, packing material, etc.

Style Thickness
(mm)		 Weight
(g/m2)		 Color Base Cloth
(g/m2)		 Weaving Way
1 0.4 520 gray 310/3731 twill
2 0.5 580 gray 430/3732 satin
3 0.8 1000 gray 830/3784 satin
4 1.1 1600 black 880/3788 satin
5 1.2 1600 red 880/3788 satin
6 1.3 1550 gray 880/3788 satin
7 1.3 1650 black 880/2788 satin
8 1.5 2000 red 880/3788 satin
9 1.6 2350 black 1350 satin

Note:Special specification also can be produced.
