Red Silicone Rubber Coated Fiberglass Fabric For Smoke Curtain And Fire Blankets
Red Silicone Rubber Coated Fiberglass Fabric For Smoke Curtain And Fire Blankets
Red Silicone Rubber Coated Fiberglass Fabric For Smoke Curtain And Fire Blankets
Red Silicone Rubber Coated Fiberglass Fabric For Smoke Curtain And Fire Blankets
Specifications
Brand Name :
Yaoxing
Model Number :
SRC0.4
Certification :
SGS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000 per month
Delivery Time :
5-8work days
Packaging Details :
carton
Matreial :
Silicone and fiberglass
Color :
Red
Usage :
smoke curtain,fire blankets,joint
Roll Length :
100m/roll
Working Temperature :
-40℃-220℃
Width :
1-1.8m
Description

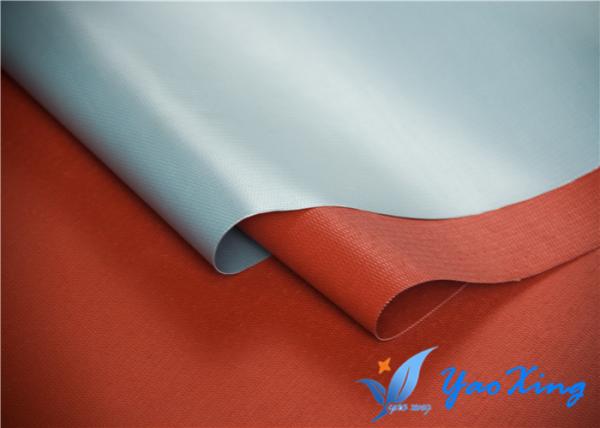

Red Silicone Coated Fiberglass Fabric For Smoke Curtain And Fire Blankets

Description:

Yaoxing company provides one-sided/double-sided silicone coated fire-resistant fiberglass cloth with many varieties of coating weight, colors and widths for difference applications.

SRC0.4 is a medium weight woven fiberglass fabric coated with both side silicone rubber.

Use for the external material of thermal insulation, have good performance in water proofing had heat resistant, export to Europe and other market for many years.

Coated Fiberglass Fabric​ Parameter List:

BASE FABRIC Base fabric style No.SRC0.4
(metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1﹡2 ECG 75 1/2
Weft EC9 68 1﹡2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96
Coating Silicone rubber 2 sides
Weight 590 ± 25 g/m2 17.4 ± 0.74 oz/yd2 ASTM D3776-96
Thickness 0.45± 0.02 mm 0.018 ± 0.0007 inch ASTM D1777-96
Color Red
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Silicone rubber coating up to 2500C (4800F)

Main Coated Fiberglass Fabric Application:

- Thermal insulation covers

- Fire doors & Fire curtains

- Welding/fire blankets

- Other fire control systems

- Fabric expansion joints

- Fabric ductwork connector

Coated Fiberglass Fabric​ Advantage:

Easy to cut and sewing

Short lead time (5-15 days)

P&D department to ensure the quality

Chinese manufacturer

Reasonable price

Red Silicone Rubber Coated Fiberglass Fabric For Smoke Curtain And Fire Blankets
