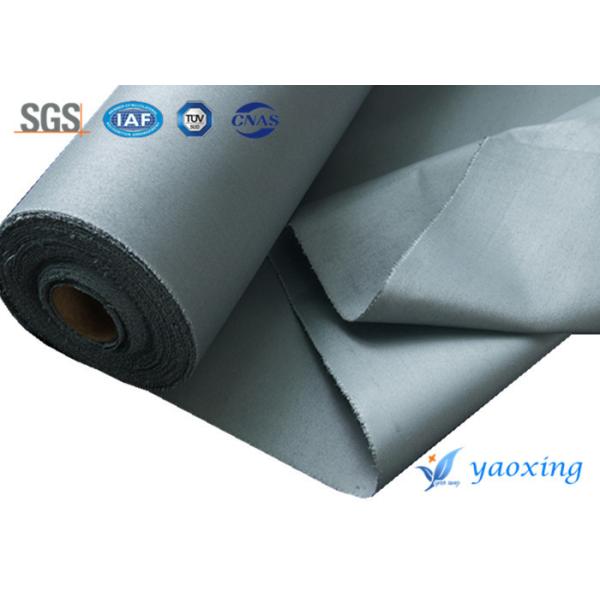

Thickness 0.30mm Silicone Coated Fiberglass Fabric Fire Resistance
Thickness 0.30mm Silicone Coated Fiberglass Fabric Fire Resistance
Specifications
Brand Name :
Yaoxing
Model Number :
SRC1.0
Certification :
SGS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
35000meters per month
Delivery Time :
5-8 days
Packaging Details :
PVC package
Product Name: :
Silicone Coated Glass Fabric
Material: :
Silicone And Fiberglass
Temperature Resistance: :
-70℃-280℃
Color: :
Red,Black,White，Gray And So On
Length: :
50m/roll
Width: :
1m/1.2m
Description

Thickness 0.30mm Fire Prevention 260 ºC Silicone Coated Fabric

1.Scope of application:

Silicon rubber is a kind of fluorine macromolecule elasticity shell, which has the performance of fine high temperature-resistance and insulation and longtime aging-resistance. After compounded with fiberglass, it is a kind of high function, useful and new material.

2. Specification with Silicone coated fabric:

Product Name: Silicone Coated Glass Fabric
Material: Silicone Rubber Coated Glass Fiber Fabric
Weight 1500 g/m2
Thickness 1.7 mm
Width 920mm
Coated Silicone 2 sides
Color Red/Black
Fire resistance Good
Working temperature Basic fabric 55ºC, Silicone coating 260 ºC.
Pattern Satin
Fiberglass Silica

Type Thickness

Breaking Strength

(N/50mm)

Burst Strength

Mpa

Peeling Strength

N/m

Flame

Retardant

Weight

g/m2
warp weft
SRC-0.3 0.30+0.03 ≥1800 ≥1400 ≥1.2 ≥450 FV-0 470+50
SRC-0.5 0.50+0.05 ≥2000 ≥1600 ≥2.0 ≥450 FV-0 640+60
SRC-1.1 1.10+0.10 ≥3800 ≥3400 ≥2.6 ≥450 / 1700+170
SRC-1.5 1.50+0.10 ≥3200 ≥2800 ≥3.0 ≥450 / 2300+230

2. Characteristics of 260 ºC Silicone Coated Fabric


Silicone Coated Fiberglass Fabric has special characteristic, such as high temperature-resistance, ventilate-resistance, and fine high temperature-resistance, and Silicone Coated Fiberglass Fabric is very soft and tenacious, so Silicone coated fabric can apply in the fields of aerospace, chemistry and big electrical equipments, machinery and metallurgy.

3.Reserve & Transport

Reserve in the environment when the temperature between 0 and 40C, the humidity is bigger than 75% . far away from the heat source. Avoids with the acid and alkali and to the rubber harmful special material contact. In the transportation, prevents the extrusion.

4.The color of Silicone coated fabric:

Red. silver gray and black. can according to the customer specific request to production.

5.Packing of Silicone coated fabric :

50M/ROLL.packing by pvc bag.

Thickness 0.30mm Silicone Coated Fiberglass Fabric Fire Resistance
