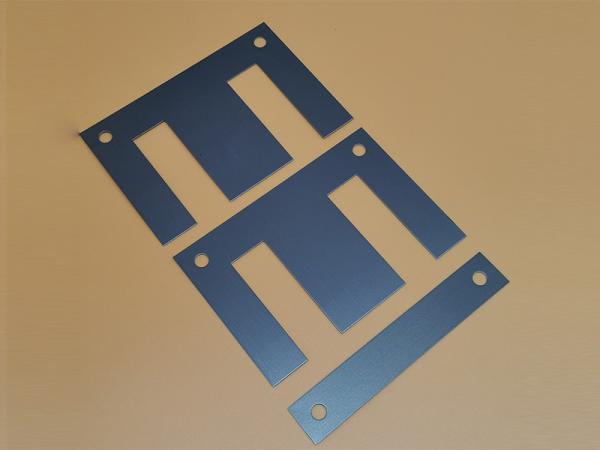

EI-85.8-4H Coated AISI Non Grain Oriented Electrical Steel
EI-85.8-4H Coated AISI Non Grain Oriented Electrical Steel
Specifications
Place of Origin :
JiangSu,China
Brand Name :
HengTong
Certification :
CE
Model Number :
Customer settings
MOQ :
50-100
Price :
consultative
Packaging Details :
standard packaging
Delivery Time :
7-10
Surface treatment :
Coated
Type :
Non-oriented Silicon Steel
Technique :
Cold Rolled
Shape :
EI Lamination
Description

Electrical transformer core assembly made by CRGO silicone steel

Thickness Tolerance

The good thickness tolerance is characterized by small difference in thickness in a direction parallel to the direction of rolling, small difference in thickness in a direction perpendicular to the direction of rolling, and high lamination factor.

Processing Properties

The product is suitable for punching and cutting with excellent dimensional tolerance.

Insulation Coating

The insulation coating has small color deviation, good adhesiveness and excellent resistance to heating and corrosion with high insulation coating resistance. There are several types of insulation coating available for production. According to the test results performed by the professional inspection organizations, the contents of hazardous substances comply with all the prevailing international and domestic environment protection laws and regulations including EU RoHS and REACH regulations.

Two halves matched together to get an open structure with closed magnetic circuit. The coil and core can be produced separately and assembled easily, so the total production time can be reduced.

High quanlity and reasonable price.

4) Applicable to all kinds of Power transformer. widely used for 50Hz & 400Hz transformers, current transformers, reactors, chokes and other magnetic components of electronic equipment.

5)The customizable design is acceptable.

ITEM CODE SIZE Q A B C D E F G i K N d
HT518 EI-54-4H-GAP-XX 0.5,3.0 54 45 18 9 9 27 36 45 9 9 3.5
HT519 EI-85.8-4HGAP-XX 0.99 85.8 71.5 28.6 14.3 14.3 42.9 57.2 71.5 14.3 14.3 5
HT520 EI-96-4HGAP-XX 0.9,1.5；2.54；2.7,3.0,5.0 96 80 32 16 16 48 64 80 16 16 6
HT521 EI-105-4HGAP-XX 2.0, 2.3,2.5 105 87.5 35 17.5 17.5 52.5 70 87.5 17.5 17.5 6
HT522 EI114-4HGAP-XX 1.8, 2.6 , 3.3, 3.5, 114 95 38 19 19 57 76 95 19 19 7
HT523 EI-120-4HGAP-XX 4.0 120 100 40 20 20 60 80 100 20 20 7
HT524 EI-132-4HGAP-XX 3.0 132 110 44 22 22 66 88 110 22 22 7
HT525 EI-192-4HGAP-XX 1.0,3.0 192 160 64 32 32 96 128 160 32 32 10
