P3.91mm & P4.81mm Outdoor Front Maintenance LED Display High-Definition LED Screen

3.91mm & 4.81mm pixel pitch, 5,000nits+ brightness, IP65 outdoor rental or fixed applications

• Silu`s front maintenance LED screen series
• SMD1921 LED lamps
• MBI5153 or CH2053 driving ICs
• 2 Layers 1.6mm Thickness PCB
• 250mmx250mm Size LED module
• 500mmx500mm or 500mmx1000mm Size LED cabinet
• IP65~IP67* rating waterproof and dustproof
• Slim and lightweight support easy and quick seamless assembling
• 3m~300m better viewing distance (according to the video wall size)
• 160° Horizontal and 140° Vertical wide viewing angles
• 1920~3840Hz high refresh rate guarantee that no scan line when taking photos and videos
• High colour uniformity and fidelity offers vivid audio-visual enjoyment

Silu`s P3.91mm & P4.81mm Outdoor Front Maintenance LED Display High-Definition LED Screen is a series of outdoor high-performance LED display for both rental and fixed installations, it is designed with standard led panel size 250mm*250mm, and the led cabinet should be 500mm*500mm, 500mm*1000mm (die-casting aluminium for rental) and 500mm*1000mm, 1000mm*1000mm (aluminium or steel material for fixed installation). The P3.91mm & P4.81mm Outdoor Front Maintenance LED Display High-Definition LED Screen offers more than 5,000nits (outdoor) brightness and 3840Hz refresh rate, enable us to do live broadcasting, lifelike animated picture and videos bring us an eye feast.

With CNC processing, the range of tolerance is controlled within 0.1mm that guarantees the seamless assembly and perfect performance is presented.

The P3.91mm & P4.81mm Outdoor Front Maintenance LED Display High-Definition LED Screen can be work normal on rainy days and the contents can be clearly seen under sunlight, thanks to its high brightness design and IP rated waterproof and dustproof capability.

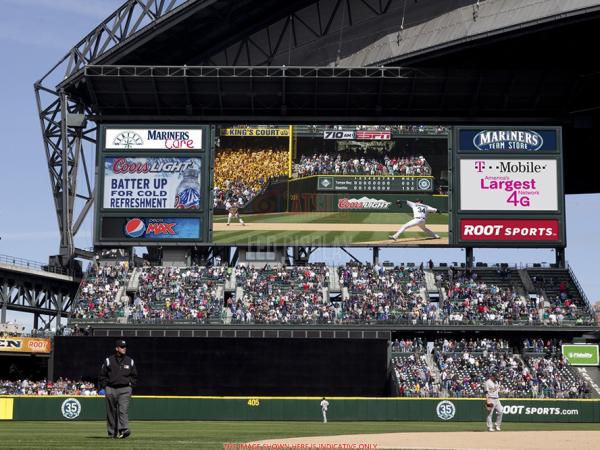

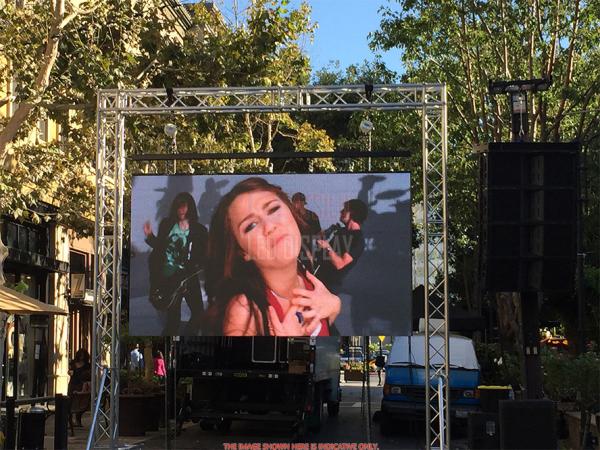

Special design for the mask to realize higher contrast and larger viewing angle, the P3.91mm & P4.81mm Outdoor Front Maintenance LED Display High-Definition LED Screens now are widely used in business organizations, supermarket, large-scale shopping malls, star-rated hotels, travel agencies, financial organizations, banks, insurance companies, post offices, hospital, schools, public places, subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting rooms, entertainments, movie theatres, clubs and stages.

Modularization and front maintenance design make the P3.91mm & P4.81mm Outdoor Front Maintenance LED Display High-Definition LED Screen assembly and maintenance quickly and efficiently, concave and convex radian design optional, creative and changeable installation.

Our P3.91mm & P4.81mm Outdoor Front Maintenance LED Display High-Definition LED Screen is IP65 rating waterproof and dustproof, support both outdoor rental and fixed installations, which surely can be a better ideal choice for mounting a large outdoor high-definition LED video wall.

For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

Technical Specification
