P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display
P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display
P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display
P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display
P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display
P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display
P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display
P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display
P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display
P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display
Specifications
Brand Name :
SILU
Model Number :
P2.5mm
Certification :
CE, CCC, RoHS
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T
Supply Ability :
500 m² per Month
Delivery Time :
20 Days
Packaging Details :
Wooden case, flight case
Price :
USD2380.00-3860.00 per m²
Pixel Pitch :
2.5mm
Leds :
SMD1010 black
ICs :
MBI5153/CH2153
PCB :
SILU Class A 4 layers
Viewing Angle :
180°~360°
Application :
Indoors
Description

P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display

2.5mm pixel pitch, 1,100nits+ brightness, indoor rental or fixed applications

  • Silu`s high-definition flexible LED screen series
  • SMD1010 LED lamps
  • MBI5153 or CH2153 driving ICs
  • 2 Layers 1.0mm Thickness PCB
  • 240mmx120mm Size LED module
  • 480mmx480mm Customized Size LED cabinet
  • Slim and lightweight support easy and quick seamless assembling
  • 2m~50m better viewing distance
  • 160° Horizontal and 140° Vertical wide viewing angles
  • 3840Hz high refresh rate guarantee that no scan line when taking photos and videos
  • High colour uniformity and fidelity offers vivid audio-visual enjoyment

Silu`s P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display comes at a small pixel pitch, which is only 2.5mm, it is becoming more and more popular for high-end markets cause it offers high-quality and amazing image and video visual effect.

Using distributed scanning technology and module design technology that make higher reliability and stability.

With the strong anti-interference ability and long service life that can continually work for over 24 hours, and it's easy to operate the system.

Using pixel dot to dot calibration technology makes the image clearer and the layering stronger.

Convenient installation and maintenance of super soft LED modules.

By using our P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display, scale your design to fit any size wall or column in portrait, landscape, square or concave configurations. It features a unique off-board distributed architecture that delivers 24x7 reliability and improves serviceability by removing heat, complexity and potential points of failure from behind the video wall and conveniently co-locates them with other rack-mounted equipment for improved accessibility.

By using our P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display product, the rental events, broadcasting and advertising operators can easily mount a 2K, 4K, and even 8K large resolution indoor customized shape LED video screen wall.

For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display

P2.5mm High-Definition Curved LED Wall Flexible High-Performance LED Video Display

Technical Specification

P2.5mm Flexible LED Display
Pixel Pitch 2.5mm (0.1")
LED Brand Nationstar*
Pixel Configuration 1R1G1B
Pixel Density 160,000 Pixels/m²
LED Module Size: 240mmx120mm (9.5"x4.72")
Resolution: 96*96 Pixels

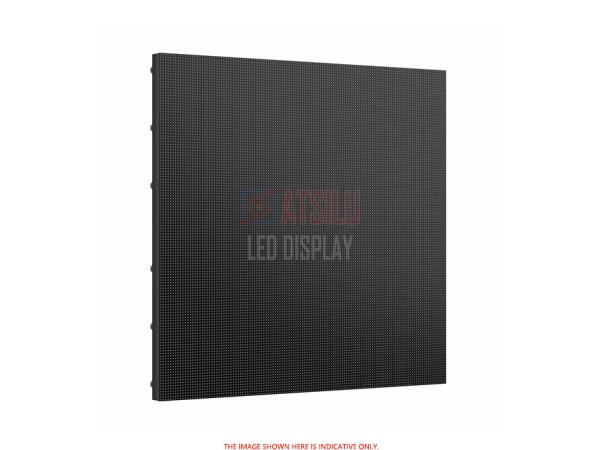

LED Cabinet Size: 480mmx480mm
Resolution: 192*192 pixels
Material: Aluminum
Weight: <6Kg (13.2 Lbs)
Working Voltage AC220V±10%; AC110V±10%
Power Consumption Average 380W/m² / Max 850W/m²
Maximum Brightness >1,100 cd/m²
Refresh Frequency >3,840Hz/S
Change Frame Frequency 50Hz~60Hz
Drive Mode 1/32 Scanning
Total Colors 281 Trillion Colors
Grade Level RGB 65536 Grade
Best Viewing Distance 2m~>50m (6ft~>150ft)
Best Viewing Angle Horizontally 160° / Vertically 140°
Screen Lifetime >100,000 hours
Protection Level IP43
Ambient Temperature -40°C ~ 60°C (-30°F ~ 150°F)
Relative Humidity 10%~90%
Control System* Simple LED Video Control System or Advanced LED Video Processor
Input Signal RF S-Video RGB RGBHV YUVYC etc.
Brightness Adjustment* 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)
Package Method* Wooden Case / Flight Case
Warranty Date* 2 Years (3 Years for Cree and Nichia)
