P16mm SMD & DIP Front Maintenance LED Display Outdoor Effective Advertisement Signage

16.0mm pixel pitch, 6,500nits+ (max. 11,000 nits) brightness, IP65 rated outdoor fixed applications

• Silu`s front maintenance LED screen series
• SMD3535 or DIP346 LED lamps
• MBI5124 or CH2038s driving ICs
• 2 Layers 1.6mm Thickness PCB
• 256mmx256mm Size LED module
• 1024mmx1024mm Size LED cabinet
• IP65~IP67* rating waterproof and dustproof
• Rugged and lightweight support easy and quick seamless assembling
• 16m~500m better viewing distance (max. viewing according to the video wall size)
• 140° Horizontal and 140° Vertical wide viewing angles
• 1920Hz high refresh rate guarantee that no scan line when taking photos and videos
• High colour uniformity and fidelity offers vivid audio-visual enjoyment

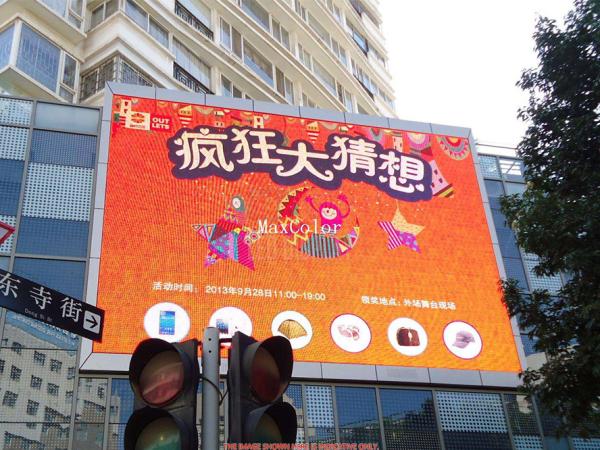

Silu`s P16mm SMD & DIP Front Maintenance LED Display Outdoor Effective Advertisement Signage is a kind of big pitch and longer viewing distance type outdoor LED display, that means the pitch between the 2 nearby pixels is 16mm and so the viewing distance at least 16mm when the viewers watch the images or videos on the LED display. Meanwhile, the P16mm SMD & DIP Front Maintenance LED Display Outdoor Effective Advertisement Signage also can save more time and cost to assemble large outdoor advertising LED billboard video wall.

The P16mm SMD & DIP Front Maintenance LED Display Outdoor Effective Advertisement Signage is an outdoor high brightness LED display for fixed installation, brightness is more than 6,500 nits (SMD3535) or 8,000 nits (DIP346), can up to 11,000 nits (DIP346) if needed. The IP65 waterproof and dustproof is the standard function. We say the P16mm SMD & DIP Front Maintenance LED Display Outdoor Effective Advertisement Signage can be suitable for any of the weather conditions no matter very cold or very hot, SMD3535/DIP346 is a kind of reliable LEDs to pre-long the LED display`s lifetime.
Our P16mm SMD & DIP Front Maintenance LED Display Outdoor Effective Advertisement Signage is a real outdoor LED display product, besides, more than 6,500 nits brightness can make sure the contents on the LED display easily saw clearly even in the direct sunlight.

For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

Technical Specification
