Specifications
Brand Name :
SILU
Model Number :
P3.91mm
Certification :
CE, CCC, RoHS
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T
Supply Ability :
900 m² per Month
Delivery Time :
21 Days
Packaging Details :
Wooden case, flight case
Price :
USD2980.00-3860.00 per m²
Pixel Pitch :
3.91mm
Leds :
SMD1921
ICs :
MBI
Colors :
Full color
Brightness :
>5000 nits
Refresh Rate :
>1920 Hz
Lifetime :
100000 Hours
Warranty :
3 Years
Description

P3.91mm Indoor & Outdoor Transparent LED Display High-Definition Glass LED Screen Wall

3.91mm pixel pitch, 5,000nits+ brightness, indoor & outdoor rental or fixed applications

  • Silu`s transparent LED screen series
  • SMD1921 LED lamps
  • MBI5153 or CH2053 driving ICs
  • 500mmx250mm Size LED module

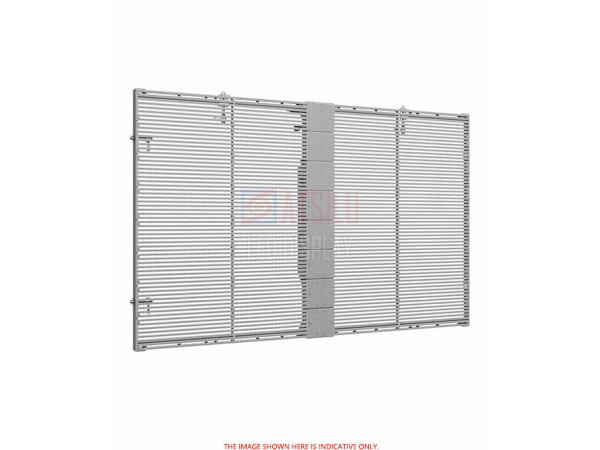

  • 1000mmx1000mm or 1000mmx2000mm Size LED cabinet
  • More than 50% transparency rate
  • Slim and lightweight support easy and quick seamless assembling
  • 3m~300m better viewing distance (according to the video wall size)
  • 160° Horizontal and 140° Vertical wide viewing angles
  • 1920~3840Hz high refresh rate guarantee that no scan line when taking photos and videos
  • High colour uniformity and fidelity offers vivid audio-visual enjoyment

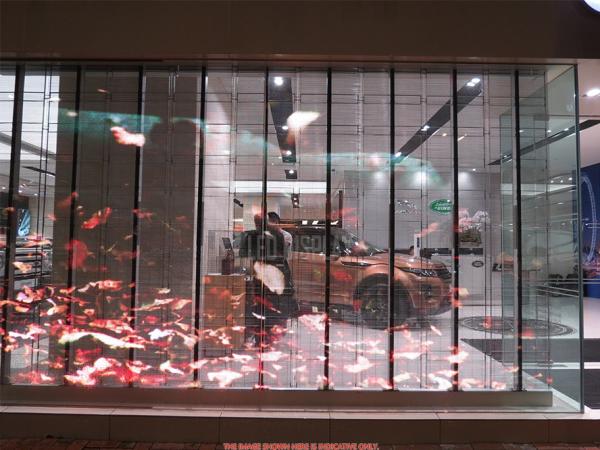

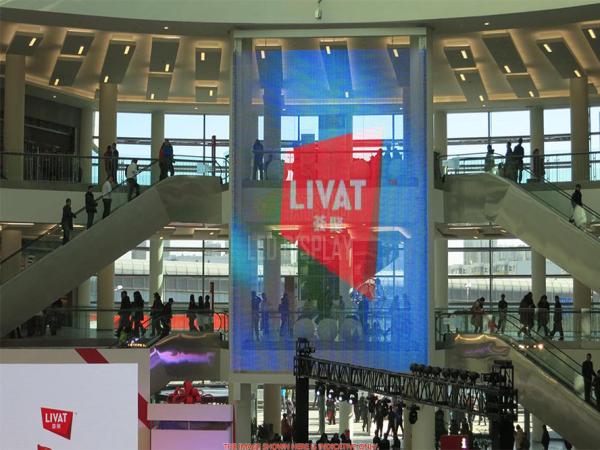

Silu`s P3.91mm Indoor & Outdoor Transparent LED Display High-Definition Glass LED Screen Wall is a kind of high transparency indoor and outdoor glass LED screen with light and thin cabinet, supports easy and quick installation without tools. The standard modular design makes high efficient installation to build a large screen which is widely used on the stage, live stations, showcases, auto 4s shops, conference and exhibition centre, shopping mall, and other large-scale indoor and outdoor commercial events.

Modularization design makes assembly and maintenance quickly and efficiently, and front and rear maintenance are available which is you're your choice.

Concave and convex radian design optional, helping your LED video wall creative and changeable.

Our P3.91mm Indoor & Outdoor Transparent LED Display High-Definition Glass LED Screen Wall supports both indoor and outdoor rental or fixed installations.

For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

P3.91mm Transparent Led Curtain Display High-Definition Glass LED Screen Wall

P3.91mm Transparent Led Curtain Display High-Definition Glass LED Screen Wall

Technical Specification

P3.91mm Transparent LED Display
Pixel Pitch 3.91mm (0.154") (V.&H.)
LED Brand Nationstar & Customized*
Pixel Configuration 1R1G1B
Pixel Density 65,536 Pixels/m²
LED Module Size: 500mmx250mm (18.9"x9.45")
Resolution: 128*64 Pixels
LED Cabinet* Size: 1000mmx1000mm (39.37"x39.37")
Resolution: 256x256 pixels
Material: Aluminum
Weight: <13Kg (28.6 Lbs)
Working Voltage AC220V±10%; AC110V±10%
Power Consumption Average 360W/m² / Max 900W/m²
Maximum Brightness >5,000 cd/m²
Refresh Frequency >1920~3,840Hz/S
Change Frame Frequency 50Hz~60Hz
Drive Mode 1/8~1/16 Scanning
Total Colors 281 Trillion Colors
Grade Level RGB 65536 Grade
Best Viewing Distance 3m~>100m (9ft~>300ft)
Best Viewing Angle Horizontally 160° / Vertically 140°
Screen Lifetime >100,000 hours
Protection Level IP54
Ambient Temperature -40°C ~ 60°C (-30°F~150°F)
Relative Humidity 10%~90%
Control System* Simple LED Video Control System or Advanced LED Video Processor
Input Signal RF S-Video RGB RGBHV YUVYC etc.
Brightness Adjustment* 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)
Package Method* Wooden Case / Flight Case
Warranty Date* 3 Years (5 Years for Cree and Nichia)
