P6.67mm Outdoor Led Billboard Fixed Installation LED Video Wall
P6.67mm Outdoor Led Billboard Fixed Installation LED Video Wall
P6.67mm Outdoor Led Billboard Fixed Installation LED Video Wall
P6.67mm Outdoor Led Billboard Fixed Installation LED Video Wall
P6.67mm Outdoor Led Billboard Fixed Installation LED Video Wall
P6.67mm Outdoor Led Billboard Fixed Installation LED Video Wall
P6.67mm Outdoor Led Billboard Fixed Installation LED Video Wall
P6.67mm Outdoor Led Billboard Fixed Installation LED Video Wall
P6.67mm Outdoor Led Billboard Fixed Installation LED Video Wall
P6.67mm Outdoor Led Billboard Fixed Installation LED Video Wall
Specifications
Brand Name :
SILU
Model Number :
P6.67mm
Certification :
CE, CCC, RoHS
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T
Supply Ability :
1000 m² per Month
Delivery Time :
18 Days
Packaging Details :
Wooden case
Price :
USD1180.00-2360.00 per m²
Leds :
SMD3535
Led brand :
Nationstar
Led chip :
Epstar/Cree/Nicha
ICs :
MBI
PCB :
Class A 2 layers
Brightness :
>6500 nits
Lifetime :
100000 Hours
Warranty :
3 Years
Description

P6.67mm Outdoor LED Digital Billboard High-Performance Fixed Installation LED Video Wall

6.666mm pixel pitch, 6,500nits+ brightness, IP65 rated outdoor fixed applications

  • Silu`s outdoor digital LED screen series
  • SMD3535 LED lamps
  • MBI5124 or CH2038s driving ICs
  • 2 Layers 1.6mm Thickness PCB
  • 320mmx160mm or 320mmx320mm Size LED module
  • 960mmx960mm Size LED cabinet
  • IP65~IP67* rating waterproof and dustproof
  • Rugged, reliable and lightweight support easy and quick seamless assembling
  • 6m~300m better viewing distance (max. viewing according to the video wall size)
  • 160° Horizontal and 140° Vertical wide viewing angles
  • 1920~3840Hz high refresh rate guarantee that no scan line when taking photos and videos
  • High colour uniformity and fidelity offers vivid audio-visual enjoyment

Silu`s P6.67mm Outdoor LED Digital Billboard High-Performance Fixed Installation LED Video Wall is a kind of unconventional outdoor LED display, which is assembled with the standard 320mmx160mm or 320mmx320mm outdoor LED module, pixel density is 48*24 or 48*48, it is a real outdoor high-definition LED display and designed and produced for fixed installations with rugged and stable aluminium or steel material LED cabinet.

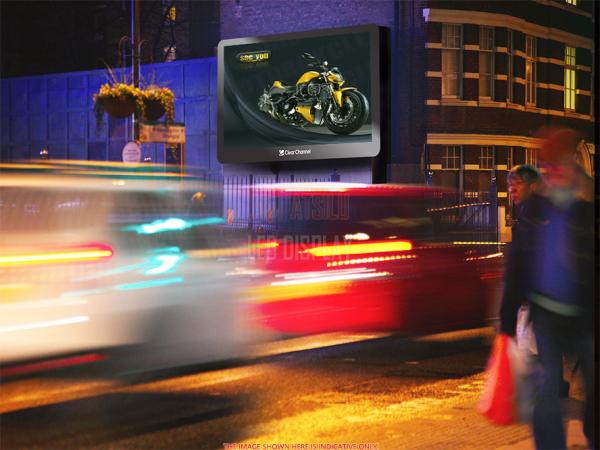

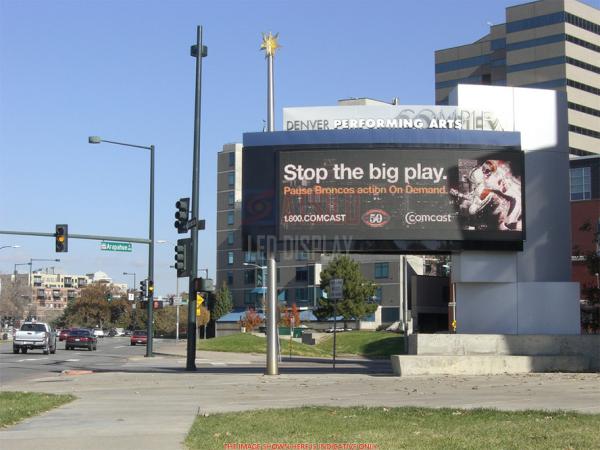

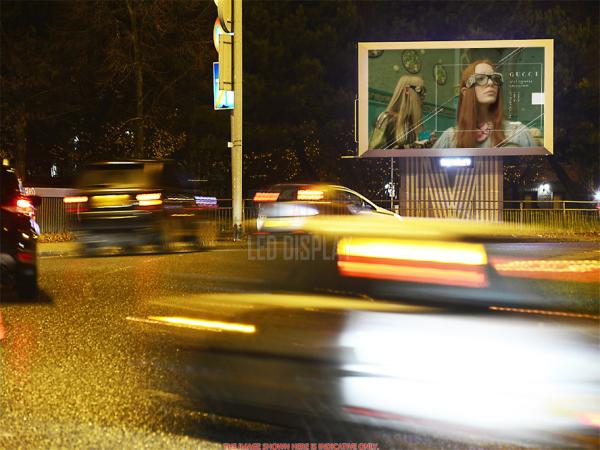

The P6.67mm Outdoor LED Digital Billboard High-Performance Fixed Installation LED Video Wall is designed and produced for the outdoor digital LED billboard usage with high-resolution and close viewing distance. IP65 grade protection means it can be waterproof and dustproof, more than 6,500 nits make it is seen clearly even in sunlight.

High temperature resistant and ageing resistant PC materials are applied in the modules to get rid of the mosaic problem even after long time usage.

High brightness enables longer viewing distance and ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.

The cabinets, featuring great moisture and corrosion proofing, enable themselves to work in all weather conditions.

For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

P6.67mm Outdoor Led Billboard Fixed Installation LED Video Wall

P6.67mm Outdoor Led Billboard Fixed Installation LED Video Wall

P6.67mm Outdoor Led Billboard Fixed Installation LED Video Wall

Technical Specification

P6.67mm Outdoor Digital LED Display
Pixel Pitch 6.666mm (0.262")
LED Brand Nationstar & Customized*
Pixel Configuration 1R1G1B
Pixel Density 22,500 Pixels/m²
LED Module Size: 320mmx160mm (12.6"x6.4")
Resolution: 48*24 Pixels

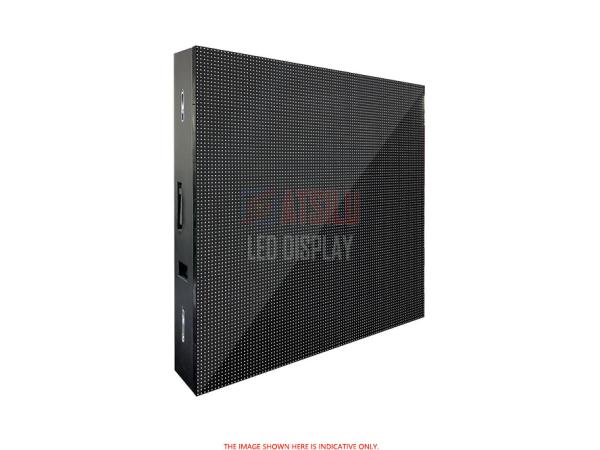

LED Cabinet* Size:960mmx960mm (37.8"x37.8")
Resolution: 144x144 pixels
Material: Aluminum/Steel
Weight: <36Kg (79.2 Lbs) / 45Kg (99 Lbs)
Working Voltage AC220V±10%; AC110V±10%
Power Consumption Average 360W/m² / Max 960W/m²
Maximum Brightness >6,500 cd/m²
Refresh Frequency >1920~3,840Hz/S
Change Frame Frequency 50Hz~60Hz
Drive Mode 1/8 Scanning
Total Colors 281 Trillion Colors
Grade Level RGB 65536 Grade
Best Viewing Distance 6m~>100m (18ft~>300ft)
Best Viewing Angle Horizontally 160° / Vertically 140°
Screen Lifetime >100,000 hours
Protection Level Front IP65 / Rear IP54
Ambient Temperature -40°C ~ 60°C (-30°F~150°F)
Relative Humidity 10%~90%
Control System* Simple LED Video Control System or Advanced LED Video Processor
Input Signal RF S-Video RGB RGBHV YUVYC etc.
Brightness Adjustment* 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)
Package Method* Wooden Case / Flight Case
Warranty Date* 3 Years (5 Years for Cree and Nichia)
